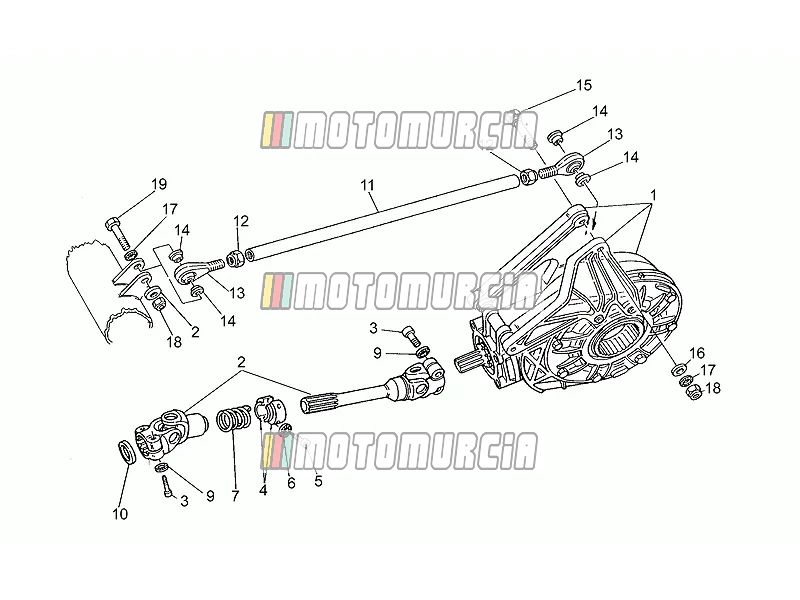

Exploded view — Driveshaft

Products

1 Transmission complete GU30350202 No longer available

• GU30350202 Transmission complete
  No longer available

2 Drive shaft GU30329502 No longer available

• GU30329502 Drive shaft
  No longer available

3 Screw Backorder GU98832430

•

  Screw Piaggio Group · GU98832430 · Quantity needed: 4 Backorder

  € 11,36

  Add to cart

4 Clump GU30211700 No longer available

• GU30211700 Clump Quantity needed: 2
  No longer available

5 Screw Available GU98612216

•

  Screw Piaggio Group · GU98612216 · Quantity needed: 2 Available

  € 1,29

  Add to cart

6 Washer 5,9X3X0,8 Available GU29217960

•

  Washer 5,9x3x0,8 mm Piaggio Group · GU29217960 · Quantity needed: 2 Available

  € 1,44

  Add to cart

7 Spring GU28037460 No longer available

• GU28037460 Spring
  No longer available

9 Washer Available GU14615901

•

  Shim 8,4x13x0,8 mm Piaggio Group · GU14615901 · Quantity needed: 4 Available

  € 2,78

  Add to cart

10 Spacer GU30334600 No longer available

• GU30334600 Spacer
  No longer available

11 Reaction rod assy. GU30358902 No longer available

• GU30358902 Reaction rod assy.
  No longer available

12 Nut M12X1,75 Backorder GU92602212

•

  Standard nut Piaggio Group · GU92602212 · Quantity needed: 2 Backorder

  € 1,28

  Add to cart

13 Ball joint M12 GU30359200 No longer available

• GU30359200 Ball joint M12 Quantity needed: 2
  No longer available

14 Bushing Backorder GU30636700

•

  Sleeve Piaggio Group · GU30636700 · Quantity needed: 4 Backorder

  € 15,48

  Add to cart

15 Screw M10x69 GU30357800 No longer available

• GU30357800 Screw M10x69
  No longer available

16 Washer Available 0030404

•

  Washer 10,5x22x2,5 mm Piaggio Group · 0030404 Available

  € 1,26

  Add to cart

17 Washer Available AP8152220

•

  Washer 10,5x16x1 mm Piaggio Group · AP8152220 · Quantity needed: 2 Available

  € 3,82

  Add to cart

18 Nut M10x1,25 Available GU92630410

•

  Standard nut M10x1.25 Piaggio Group · GU92630410 · Quantity needed: 2 Available

  € 1,77

  Add to cart

19 Pin GU30357700 No longer available

• GU30357700 Pin
  No longer available

20 Spacer Backorder GU95100303

•

  Washer Piaggio Group · GU95100303 Backorder

  € 9,74

  Add to cart
