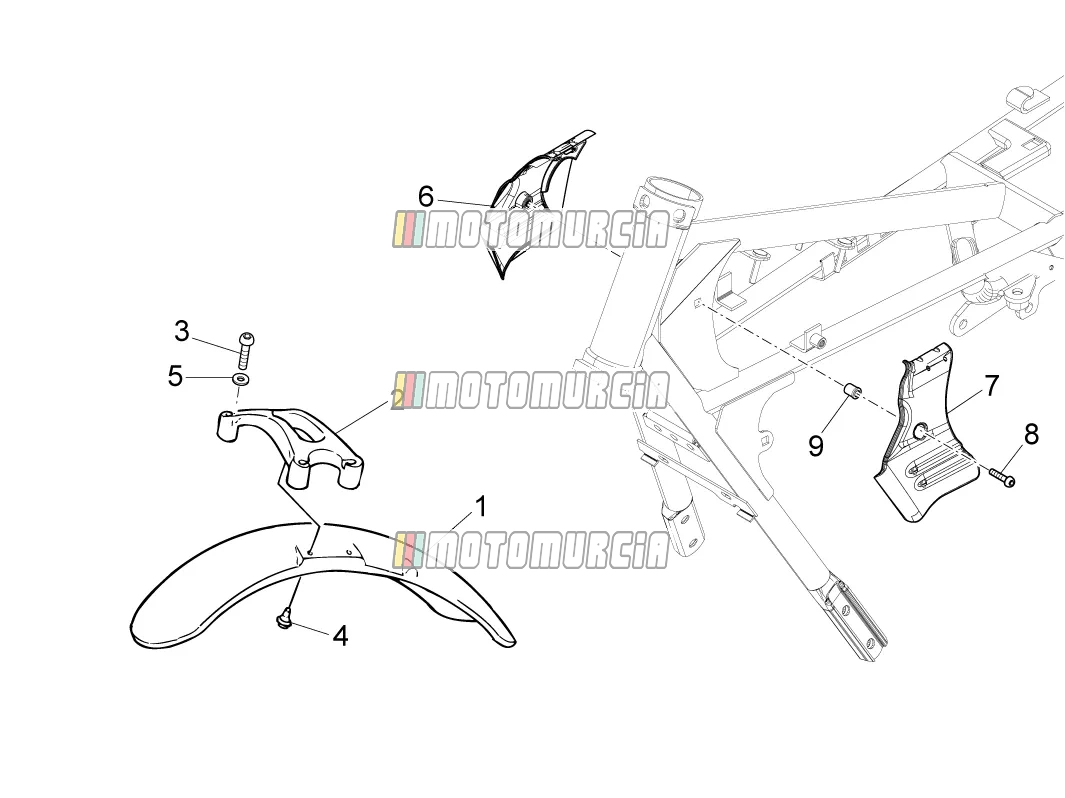

Exploded view — Front Body - Front Mudguard

‹ Back to model

Moto Guzzi Nevada Classic 750 2013

Moto Guzzi Nevada Classic 750 2013

Front Body - Front Mudguard

Products

1 Front mudguard, green Backorder 88635200YV3

Mudguard front, green, Suffix: YV3_green Piaggio Group · 88635200YV3 Backorder

€ 90,75
Mudguard front, black, Suffix: NG_black meteor 094/A Piaggio Group · GU3243446000NG Backorder

€ 48,40
Mudguard front, primed Piaggio Group · GU32434460 Backorder

€ 182,54

2 Stabilization plate 883266 No longer available

883266 Stabilization plate
No longer available

3 Screw GU98370845 No longer available

GU98370845 Screw Quantity needed: 4
No longer available

4 Screw (spec) GU31439565 No longer available

GU31439565 Screw (spec) Quantity needed: 4
No longer available

5 Washer Available GU14615901

Shim 8,4x13x0,8 mm Piaggio Group · GU14615901 · Quantity needed: 4 Available

€ 2,78

6 RH frame protection Backorder 897597

Cover, right Piaggio Group · 897597 Backorder

€ 19,14

7 LH frame protection Backorder 897598

Cover, left Piaggio Group · 897598 Backorder

€ 19,14

8 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 2 Available

€ 3,78

9 Antivibration bush Available GU93231605

Sleeve Piaggio Group · GU93231605 · Quantity needed: 2 Available

€ 2,89
