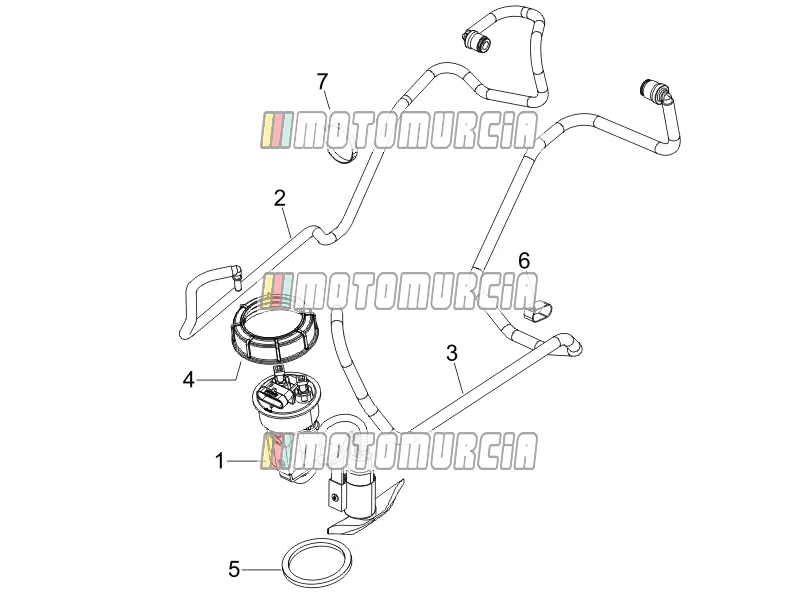

Exploded view — Supply System

‹ Back to model

Piaggio Beverly 250 ie 2007

Products

1 Fuel pump 639685 No longer available

639685 Fuel pump
No longer available

2 Fuel feed pipe 623952 No longer available

623952 Fuel feed pipe
No longer available

3 Fuel return pipe Backorder 623954

Petrol pipe Piaggio Group · 623954 Backorder

€ 98,43

4 Ring nut Available 576546

Tank Cap Piaggio Group · 576546 Available

€ 8,40

5 Gasket Available 656003

Gasket Piaggio Group · 656003 Available

€ 26,78

6 Non return spring l=27 Available CM006904

Clamp length: 27mm Piaggio Group · CM006904 Available

€ 2,95

7 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 3 Available

€ 1,43
