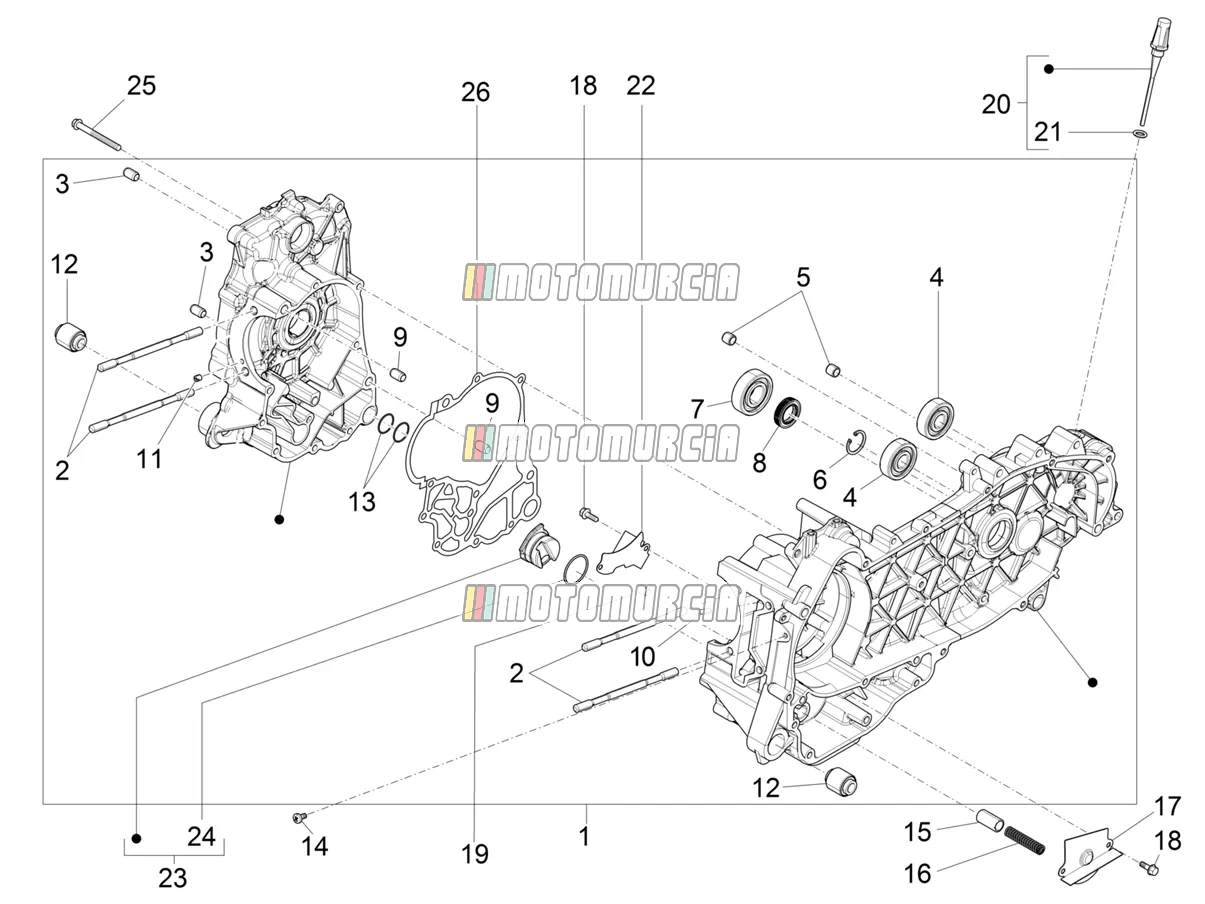

Exploded view — Crankcase

‹ Back to model
Piaggio Beverly 300 HPE E5 (EU) 2023 Piaggio Beverly 300 HPE E5 (EU) 2023
Crankcase

Products

1 2nd cat. complete crankcase Backorder 1A01583402
2 Stud bolt (250 - 300 - 350 ccm) Available 1A003628R
  • Spacer bolt Piaggio Group · 1A003628R · Quantity needed: 4 Available
    € 11,52
3 Dowel pin Available B015956
4 Bearing Available 83018R
5 Dowel pin Available B015957
6 Seeger Available B015959
7 Bearing Available 1A024412R
8 Oil seal Available 82878R
9 Dowel pin Available B015956
10 Nozzle Available 484034
  • Jet Piaggio Group · 484034 Available
    € 8,58
11 Nozzle D 1.1 Available 844582
  • Jet Piaggio Group · 844582 Available
    € 8,68
12 Silentblock - engine mount Available 486081
  • Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available
    € 10,29
13 O-Ring Available 273754
  • O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available
    € 0,99
14 Screw Available 1A003111
  • Screw M5x10 Piaggio Group · 1A003111 Available
    € 3,06
15 Oil pressure valve Available 829661
16 Spring Available 485655
  • Spring Piaggio Group · 485655 Available
    € 1,65
17 Lower oil bulkhead Available 483767
18 Screw Available 830061
19 Dowel pin Available 277916
20 Complete oil level dipstick Available 832130
  • Oil dipstick Piaggio Group · 832130 Available
    € 6,34
21 Gasket ring Available 827085
22 Upper oil bulkhead Available 485047
23 Filter door insert Available 845861
  • Filter Insert Piaggio Group · 845861 Available
    € 11,27
24 O-Ring Available 431065
  • Oil seal Piaggio Group · 431065 Available
    € 1,21
25 Screw Available B016425
  • Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 10 Available
    € 1,82
26 Gasket - crankcase Available 875111

More drawings of this model
