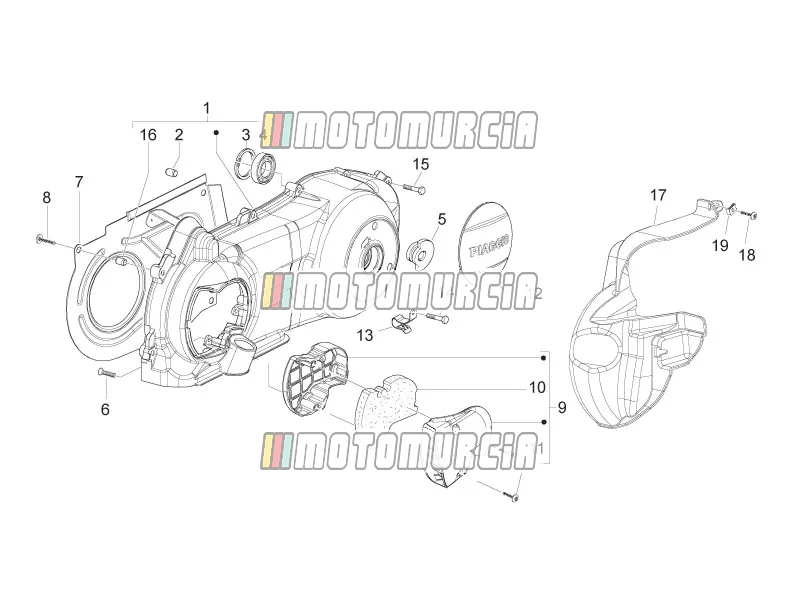

Exploded view — Crankcase Cover - Crankcase Cooling
‹ Back to model
Piaggio Beverly 300 ie Tourer 2012
Products
1 Variator cover Backorder
-
Housing cover Piaggio Group · 8714485 Backorder€ 170,67
2 Dowel pin Available
-
Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available€ 1,32
3 Seeger Available
-
Snap-in Ring Piaggio Group · 006635 Available€ 1,84
4 Bearing Available
-
Radial bearing 15x35x11 mm Piaggio Group · 4789853 Available€ 5,87
5 3 - Retainer buffer Available
-
Buffer Piaggio Group · 871458 · Quantity needed: 3 Available€ 1,89
6 Screw Available
-
Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 3 Available€ 0,99
7 Air deflector Available
-
Air Guide Plate Piaggio Group · 834266 Available€ 22,74
8 Screw Available
-
Oval Head Screw M5x10 Piaggio Group · 430264 Available€ 0,99
9 Cooling Cover Available
-
Lid Piaggio Group · 842090 Available€ 21,57
10 Air filter - belt cover Available
-
Filter Insert Piaggio Group · 842093 Available€ 3,88
11 Screw Available
-
Thread Screw Piaggio Group · 258146 · Quantity needed: 2 Available€ 0,99
12 Plug Available
-
Lid Piaggio Group · CM155110 Available€ 8,55
13 4 - Hose clamp Available
-
Clamp Piaggio Group · 844964 Available€ 2,27
14 Screw Available
-
Flanged Screw M6x60 Piaggio Group · B016425 Available€ 1,82
15 Screw Available
-
Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 8 Available€ 1,48
16 Bush Ø8xØ12x8 Available
-
Bronze Bushes 8x12x8 Piaggio Group · 431860 Available€ 1,65
17 Pipe Backorder
-
Air Intake Piaggio Group · 621126 Backorder€ 20,40
18 Screw Available
-
Screw 4,2x13 mm Piaggio Group · 259349 Available€ 0,99
19 Clip nuts Available
-
Sheet nut Piaggio Group · CM017410 Available€ 0,99
