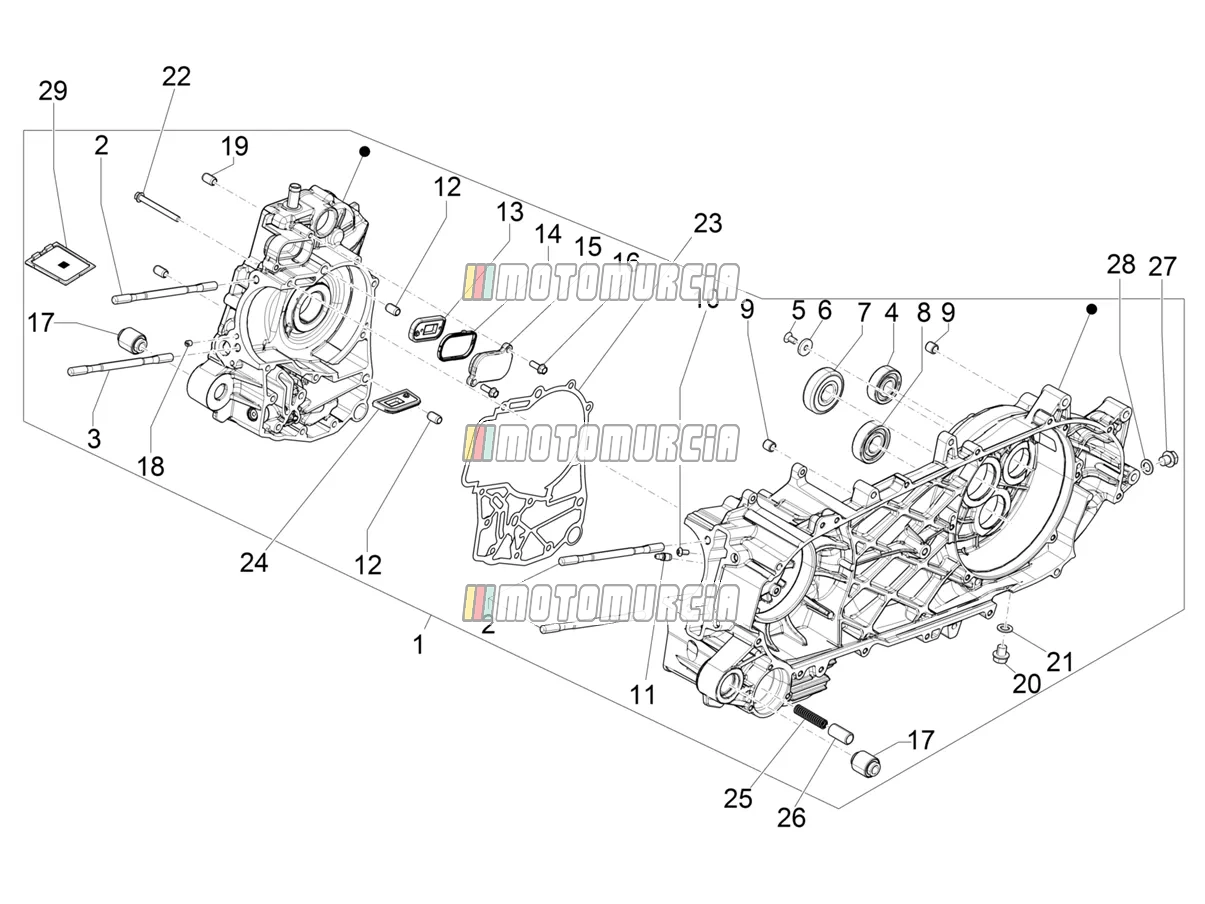

Exploded view — Crankcase

‹ Back to model
Piaggio Beverly 400 Deep Black E5 (EU) 2023 Piaggio Beverly 400 Deep Black E5 (EU) 2023
Crankcase

Products

1 Complete crankcase 1st cat. Available 1A01322101
2 Stud bolt Available 1A019509
  • Cylinder Stud Piaggio Group · 1A019509 · Quantity needed: 3 Available
    € 10,84
3 Stud bolt Available 1A013242
  • Cylinder Stud Piaggio Group · 1A013242 Available
    € 10,60
4 Bearing Available 83018R
5 Screw Available B013608
  • Screw Piaggio Group · B013608 Available
    € 2,26
6 Washer Available 873905
  • Washer Piaggio Group · 873905 Available
    € 11,82
7 Radial bearing Available B015269
8 Bearing Available 1A024412R
9 Dowel pin Available B015957
10 Piston cooling jet Backorder 1A018625
11 Screw Available 1A005607
  • Screw Piaggio Group · 1A005607 Available
    € 2,93
12 Dowel pin Available B015956
13 Reeds bracket Available 82778R
  • Gasket Piaggio Group · 82778R Available
    € 40,57
14 Reed cover gasket Backorder 1A019525
  • Gasket Piaggio Group · 1A019525 Backorder
    € 5,80
15 Reed cover Backorder 1A019524
  • Lid Piaggio Group · 1A019524 Backorder
    € 6,78
16 2 - Screw Available 874555
  • Screw M6x16 Piaggio Group · 874555 · Quantity needed: 2 Available
    € 2,41
17 Silentblock - engine mount Available 486081
  • Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available
    € 10,29
18 Calibrated nozzle Available B015068
19 Dowel pin Available B015956
20 Screw Backorder 1A021939
  • Screw M10x12 Piaggio Group · 1A021939 Backorder
    € 7,82
21 Gasket - oil drain plug Available 847238
  • Washer Piaggio Group · 847238 Available
    € 1,67
22 Screw Available B016425
  • Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 12 Available
    € 1,82
23 Gasket - crankcase Available B015425
24 Reeds bracket Available 877704
  • Membrane Piaggio Group · 877704 Available
    € 33,94
25 Spring Available 485655
  • Spring Piaggio Group · 485655 Available
    € 1,65
26 Oil pressure valve Available 829661
27 Screw Backorder 1A021939
  • Screw M10x12 Piaggio Group · 1A021939 Backorder
    € 7,82
28 Washer Available 1A011500
29 Intake oil filter Available 877822
  • Oil Strainer Piaggio Group · 877822 Available
    € 9,38

More drawings of this model

View all →
