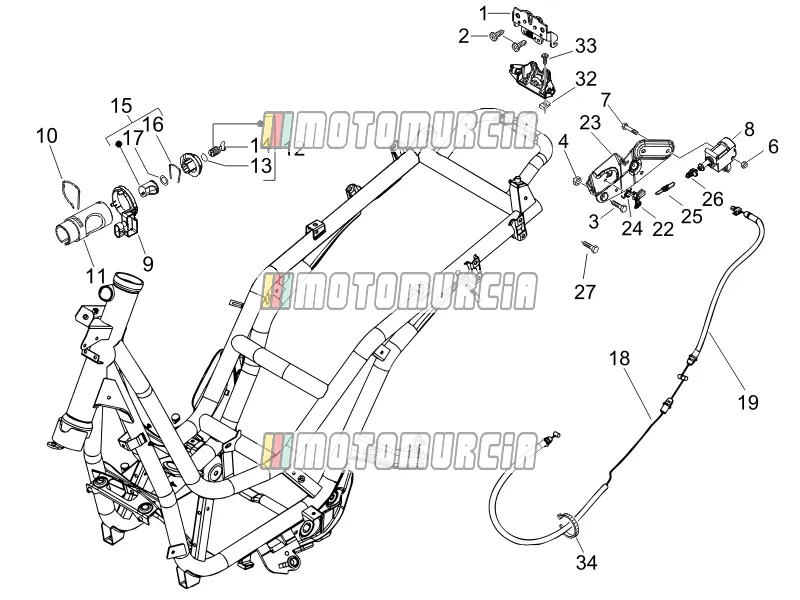

Exploded view — Locks

Products

1 Saddle/flap tightening Available CM023704

•

  Lock Mounting Piaggio Group · CM023704 Available

  € 28,29

  Add to cart

2 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 · Quantity needed: 2 Available

  € 1,08

  Add to cart

3 Screw Available 299972

•

  Screw M4 Piaggio Group · 299972 Available

  € 1,43

  Add to cart

4 Nut Available 577620

•

  Standard nut Piaggio Group · 577620 · Quantity needed: 2 Available

  € 1,26

  Add to cart

7 Screw Available 584121

•

  Hexagon Screw Piaggio Group · 584121 · Quantity needed: 2 Available

  € 11,85

  Add to cart

8 Solenoid valve Available 1D002276R

•

  Actuator Piaggio Group · 1D002276R Available

  € 71,33

  Add to cart

9 Immobilizer antenna Available 1D003415R

•

  Aerial Immobiliser APAC (Asia) Piaggio Group · 1D003415R Available

  € 42,02

  Add to cart

10 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available

  € 2,77

  Add to cart

11 Lock body Available 1B002607

•

  Lock Housing Piaggio Group · 1B002607 Available

  € 8,65

  Add to cart

12 Cylinder set Available 576825

•

  Lock Set Piaggio Group · 576825 Available

  € 111,84

  Add to cart

13 Gasket ring Available 298731

•

  Oil seal Piaggio Group · 298731 Available

  € 1,29

  Add to cart

14 Key blank Available 575810

•

  Key Blank with Transponder Piaggio Group · 575810 Available

  € 56,92

  Add to cart

15 Block Available 577816

•

  Lock Bolt Piaggio Group · 577816 Available

  € 41,82

  Add to cart

16 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available

  € 2,26

  Add to cart

17 Flat washer Available 298594

•

  Washer Piaggio Group · 298594 Available

  € 1,80

  Add to cart

18 Emergency opening transmission Available CM012804

•

  Seat release cable Piaggio Group · CM012804 Available

  € 11,30

  Add to cart

19 Saddle cable Available CM012808

•

  Seat release cable Piaggio Group · CM012808 Available

  € 12,91

  Add to cart

22 Lever Available 577129

•

  Lever Piaggio Group · 577129 Available

  € 7,03

  Add to cart

23 Saddle lock plate Backorder 577130

•

  Plate Piaggio Group · 577130 Backorder

  € 22,19

  Add to cart

24 Spring Available 577131

•

  Spring Piaggio Group · 577131 Available

  € 4,19

  Add to cart

25 Spring Available 620415

•

  Spring Piaggio Group · 620415 Available

  € 6,12

  Add to cart

26 Joint Available 577128

•

  Universal Joint Piaggio Group · 577128 Available

  € 4,59

  Add to cart

32 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

  € 0,99

  Add to cart

33 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

34 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart
