Exploded view — Handlebars - Master Cil.

‹ Back to model
Piaggio Carnaby 125 2010 Piaggio Carnaby 125 2010

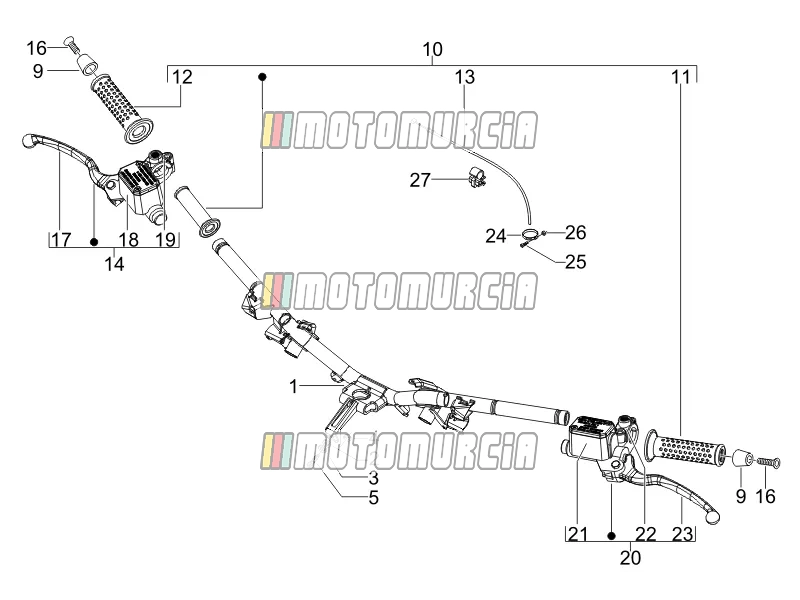

Handlebars - Master Cil.

Products

1 Handlebar 6529445 No longer available
  • 6529445 Handlebar
    No longer available
2 Washer (spring) Available 012543
  • Washer Piaggio Group · 012543 Available
    € 1,43
3 Washer Available 178790
4 Nut Available 015330
  • Standard nut Piaggio Group · 015330 Available
    € 3,84
5 Screw Available 655554
  • Screw M10x65 Piaggio Group · 655554 Available
    € 2,27
9 Handlebar weight Available 654603
10 Gas control sleeve CM060975 No longer available
  • CM060975 Gas control sleeve
    No longer available
11 Grip Left Available 271452
12 Grip Right Available 271453
13 Complete throttle control transmission Available CM073307
14 Brake hydraulic pump Right Available 56359R
16 Screw Available 1B006376
  • Torx screw length: 55,0cm, black Piaggio Group · 1B006376 · Quantity needed: 2 Available
    € 1,61
  • Screw Piaggio Group · 576836 · Quantity needed: 2 Available
    € 4,48
18 Brake pump plug 497032 No longer available
  • 497032 Brake pump plug
    No longer available
19 Bracket Available 600478
20 Brake hydraulic pump Left Available 56360R
22 U-bolt (Brembo) Available 497343
23 Brake lever Available 646829
24 Lock-strap L=180mm Available 145298
25 Screw Available 123394
  • Screw Piaggio Group · 123394 Available
    € 2,86
  • Screw M6x16 Piaggio Group · 272836 Available
    € 1,39
26 Nut Available 288245
  • Collar nut M6 Piaggio Group · 288245 Available
    € 0,99
  • Washer Piaggio Group · 562923 Available
    € 0,99
27 4 - Sheet edge spring Available CM013203
  • Clamp Piaggio Group · CM013203 Available
    € 3,18

More drawings of this model

View all →
