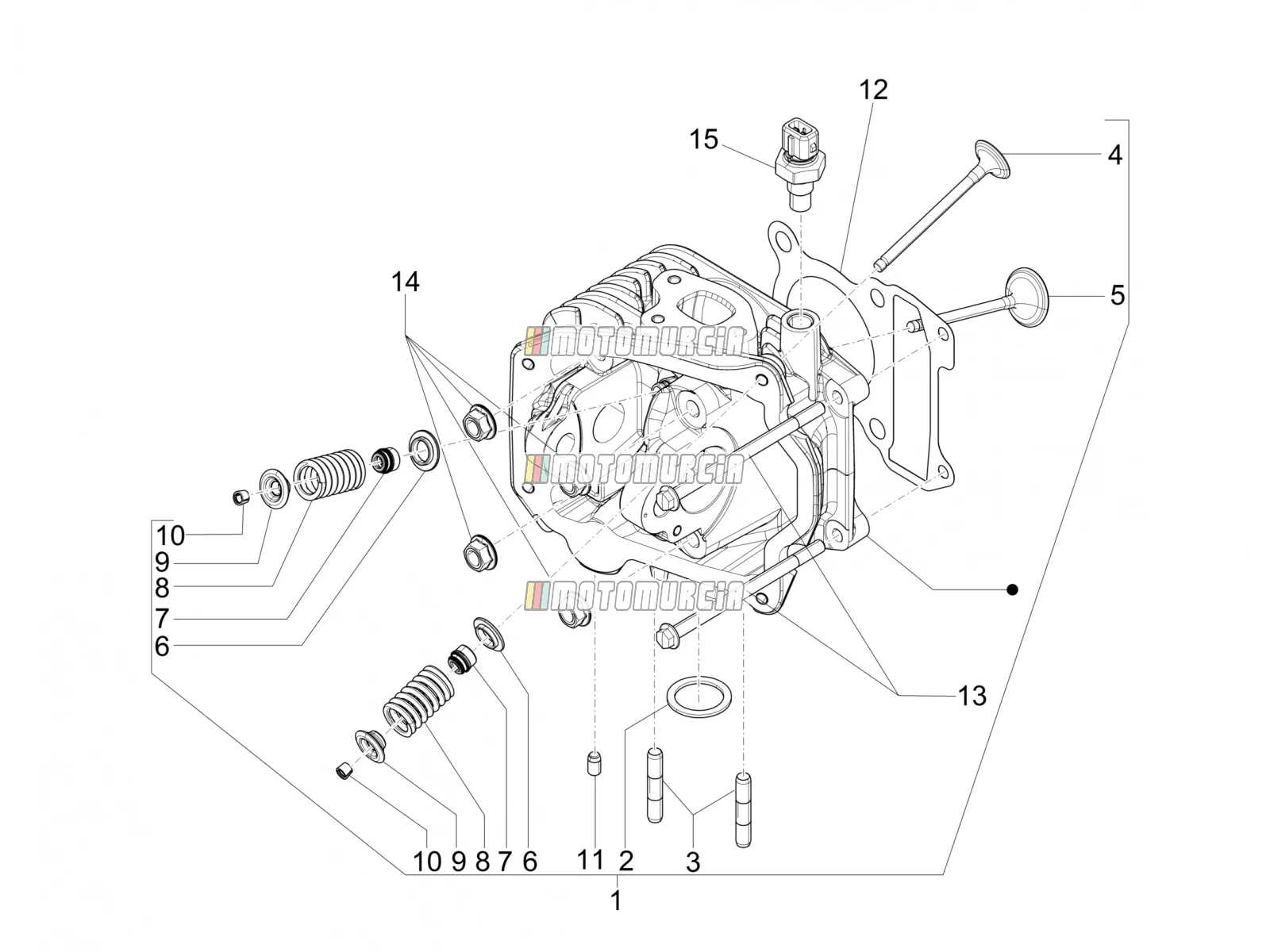

Exploded view — Head Unit - Valve
‹ Back to model
Piaggio Fly 150 2013
Products
1 Cylinder head assembly Backorder
-
Cylinder Head Piaggio Group · 874755 Backorder · Shipped in 2–4 weeks€ 237,93
2 Exhaust gasket Available
-
Exhaust Gasket Piaggio Group · 434716 Available · Shipped in 3–5 working days€ 7,21
Alternatives from other brands
COPPER WASHER 1.5MM THICKNESS Athena · M700123030015 Backorder · Shipped in 2–5 weeks€ 0,99
3 Stud bolt (M7) Available
-
Stud Screw M7x37 Piaggio Group · 435629 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
4 Valve (IN) Available
-
Inlet valve Ø 27,00 mm Piaggio Group · 483706 Available · Shipped in 3–5 working days€ 32,71
5 Valve (EX) Available
-
Exhaust valve Piaggio Group · 877137 Available · Shipped in 3–5 working days€ 32,37
6 Lower cap Available
-
Spring holder bottom Piaggio Group · 483711 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,67
7 Valve stem seal Available
-
Oil seal Piaggio Group · 436438 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 12,35
Alternatives from other brands
Valve Seal Set 10PCS Centauro · U040112YV Available · Shipped in 1–2 working days€ 35,56ENGINE OIL SEALS KIT Athena · P400480420125 Available · Shipped in 7–13 working days€ 28,73
8 Valve spring Available
-
Valve spring Piaggio Group · 483915 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 16,32
9 Upper cap Available
-
Spring holder top Piaggio Group · 483914 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 6,59
10 Valve half-cone Available
-
Valve Half Cone Piaggio Group · 285846 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,49
11 2 - Plug M6x10 (M6x10) Available
-
Screw Plug M6x10 Piaggio Group · 842360 Available · Shipped in 3–5 working days€ 2,86
12 Cylinder head gasket Available
-
Cylinder Head Gasket Piaggio Group · 82682R Available · Shipped in 3–5 working days€ 20,75
Alternatives from other brands
Cylinder Head Gasket Centauro · 880B03012 Backorder · Shipped in 2–5 weeks€ 12,10
13 Screw w/ flange
-
485603 Screw w/ flange Quantity needed: 2No longer available
14 Nut (M8x1,25) Available
-
Standard nut M8x1.25 Piaggio Group · 411296 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,35
15 Water temperature switch Available
-
Temperature probe Piaggio Group · 58273R · Quantity needed: 2 Available · Shipped in 3–5 working days€ 68,14
