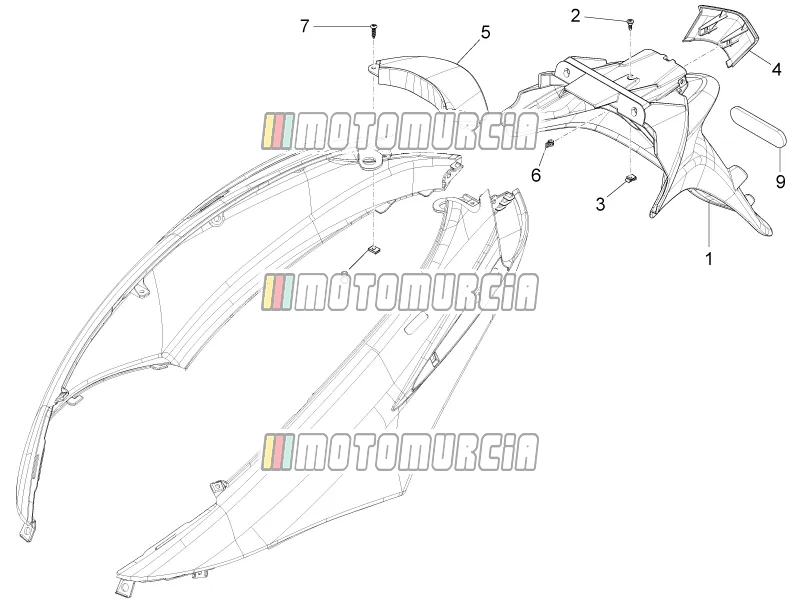

Exploded view — Rear Cover - Splash Guard

‹ Back to model

Piaggio Fly 150 2013

Piaggio Fly 150 2013

Rear Cover - Splash Guard

Products

1 Rear splash guard Available 675638000C

Number Plate Holder Piaggio Group · 675638000C Available

€ 58,07
673093000C Rear splash guard
No longer available

2 Screw Available CM179201

Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 3 Available

€ 0,99

3 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 Available

€ 2,04

4 Lower side union Available 67368300XN

Lock, black, Suffix: XN_nero cosmo / vulcano / 98/A Piaggio Group · 67368300XN Available

€ 22,24
Lock, primed Piaggio Group · 673683 Available

€ 21,45
67368340R7 Lower side union
No longer available
67368300MB Lower side union
No longer available
Lock, black, Suffix: ND_black graphite 79/A Piaggio Group · 67368300ND Backorder

€ 22,24
Lock, white, Suffix: BT_white pearl 566 Piaggio Group · 67368300BT Backorder

€ 22,24
Lock, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 67368300DE Available

€ 22,24
Lock, rose, Suffix: P4_rose 594 Piaggio Group · 67368340P4 Backorder

€ 26,49
Lock, red, Suffix: XR7_red ibis 854/A Piaggio Group · 67368340XR Available

€ 22,24
67368340BT White lower side union
No longer available

5 Upper side union 67368400MB No longer available

67368400MB Upper side union
No longer available
Lock, black, Suffix: XN_nero cosmo / vulcano / 98/A Piaggio Group · 67368400XN Backorder

€ 22,24
Lock, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 67368400DE Available

€ 22,24
Lock, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 67368440R7 Backorder

€ 22,24
Lock, black, Suffix: ND_black graphite 79/A Piaggio Group · 67368400ND Backorder

€ 22,24
67368400BT Upper side union
No longer available
Lock, primed Piaggio Group · 673684 Backorder

€ 22,95
Lock, red, Suffix: XR7_red ibis 854/A Piaggio Group · 67368440XR Backorder

€ 28,21
Lock, rose, Suffix: P4_rose 594 Piaggio Group · 67368440P4 Backorder

€ 38,97

6 Clip nuts Available D9004468091

Clamp Piaggio Group · D9004468091 · Quantity needed: 2 Available

€ 5,15

7 Screw (4.2 x 16) Available CM178601

Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available

€ 1,45

8 Clip nuts Available CM017410

Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

€ 0,99

9 Rear retroreflector Available 58233R5

Reflector red Piaggio Group · 58233R5 Available

€ 14,87
