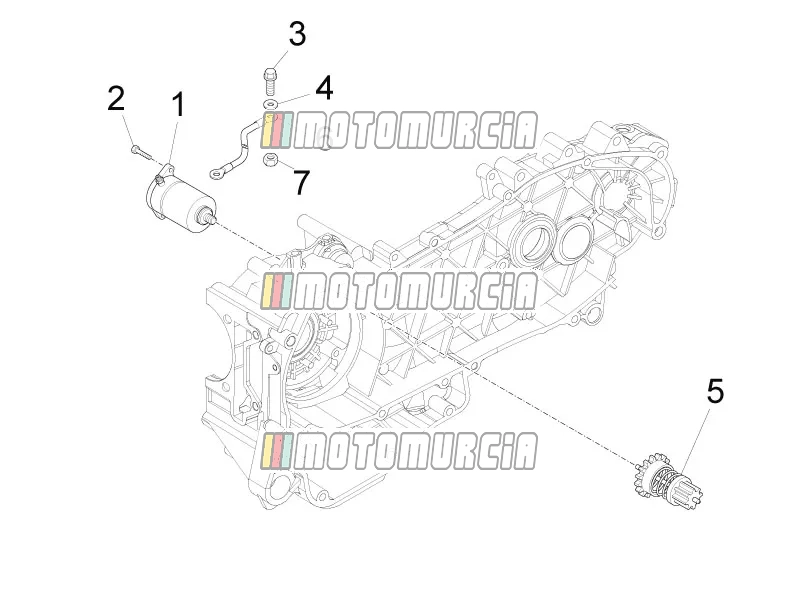

Exploded view — Stater - Electric Starter

‹ Back to model

Piaggio Fly 150 2013

Piaggio Fly 150 2013

Stater - Electric Starter

Products

1 Starter motor Available 82611R5

Starter Motor Piaggio Group · 82611R5 Available

€ 247,86

2 Screw Available 018639

Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available

€ 2,77

3 Screw Available 969296

Flanged Screw M6x10 Piaggio Group · 969296 Available

€ 1,48

4 Washer (spring) Available 006976

Snap-in Ring 12x6,4x0,5 mm Piaggio Group · 006976 Available

€ 1,79
Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available

€ 1,79

5 Starter bendix gear Available 82612R

Starter Clutch Piaggio Group · 82612R Available

€ 125,05

6 Engine-frame ground wiring 581310 No longer available

581310 Engine-frame ground wiring
No longer available

7 Nut Available 020106

Standard nut M6 Piaggio Group · 020106 Available

€ 1,84
