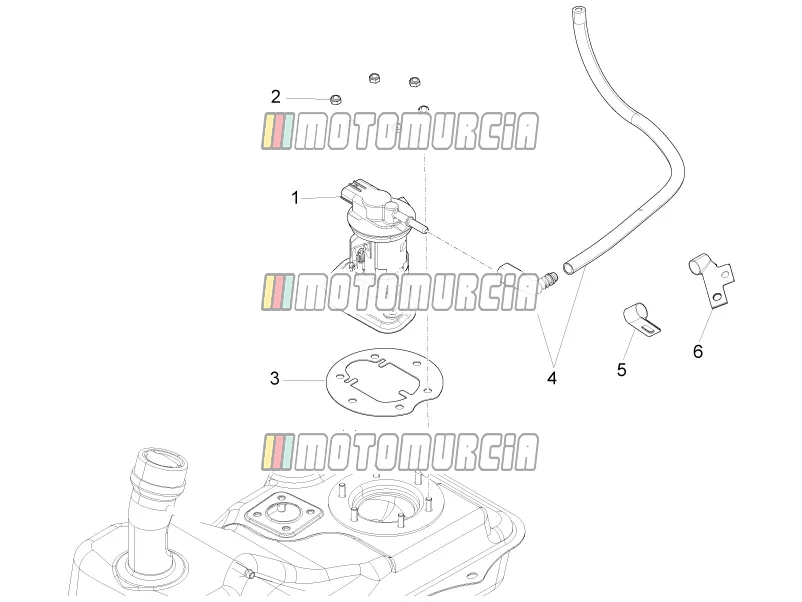

Exploded view — Supply System

‹ Back to model
Piaggio Fly 150 2013 Piaggio Fly 150 2013
Supply System

Products

1 Fuel pump Available 642888
  • Petrol Pump Piaggio Group · 642888 Available · Shipped in 3–5 working days
    € 398,94
2 Nut Available 804457
    • Country: Australia
    • Country: New Zealand
    Standard nut Piaggio Group · 804457 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 3,32
3 Gasket Backorder 781063
  • Bracket Piaggio Group · 781063 Backorder · Shipped in 2–4 weeks
    € 13,27
4 Fuel pipe 673828 No longer available
  • 673828 Fuel pipe
    No longer available
5 Hose clamp Available 675510
    • ABS version
    • ABS version
    Clamp Piaggio Group · 675510 Available · Shipped in 3–5 working days
    € 4,44
6 Clamp Backorder 642993
  • Clamp Piaggio Group · 642993 Backorder · Shipped in 2–4 weeks
    € 8,34
