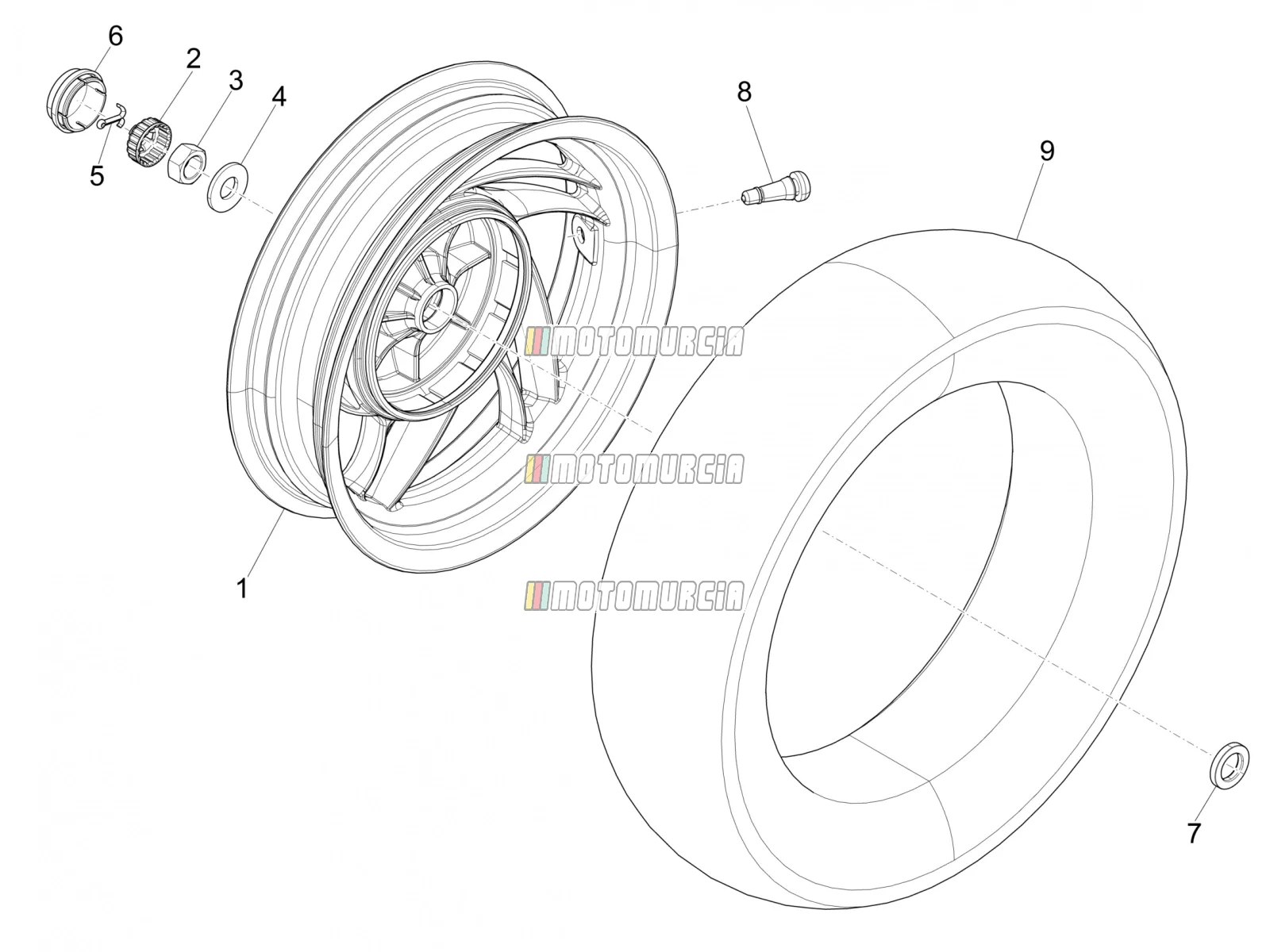

Exploded view — Rear Wheel

‹ Back to model

Piaggio Fly 150 3V ie 2014

Piaggio Fly 150 3V ie 2014

Rear Wheel

Products

1 Rear wheel Backorder 667195

Rim rear Piaggio Group · 667195 Backorder

€ 183,64

2 Nut hold cap Available 1C004746

Covering Cap Piaggio Group · 1C004746 Available

€ 3,94

3 Nut Available 563728

Standard nut Piaggio Group · 563728 Available

€ 2,77

4 Washer Available 674425

Washer Piaggio Group · 674425 Available

€ 2,44

5 Pin, split Available 012789

Split Pin Piaggio Group · 012789 Available

€ 1,66

6 Plug 1979835 No longer available

1979835 Plug
No longer available

7 Spacer Available 601205

Spacer disc Piaggio Group · 601205 Available

€ 10,99

8 Tubeless tyre valve Available 270991

Tyre valves Piaggio Group · 270991 Available

€ 6,80

9 Tyre (Cheng Shin) 120/70 R12 Backorder 664014

Tyres 120/70-15, TL Piaggio Group · 664014 Backorder

€ 170,21
