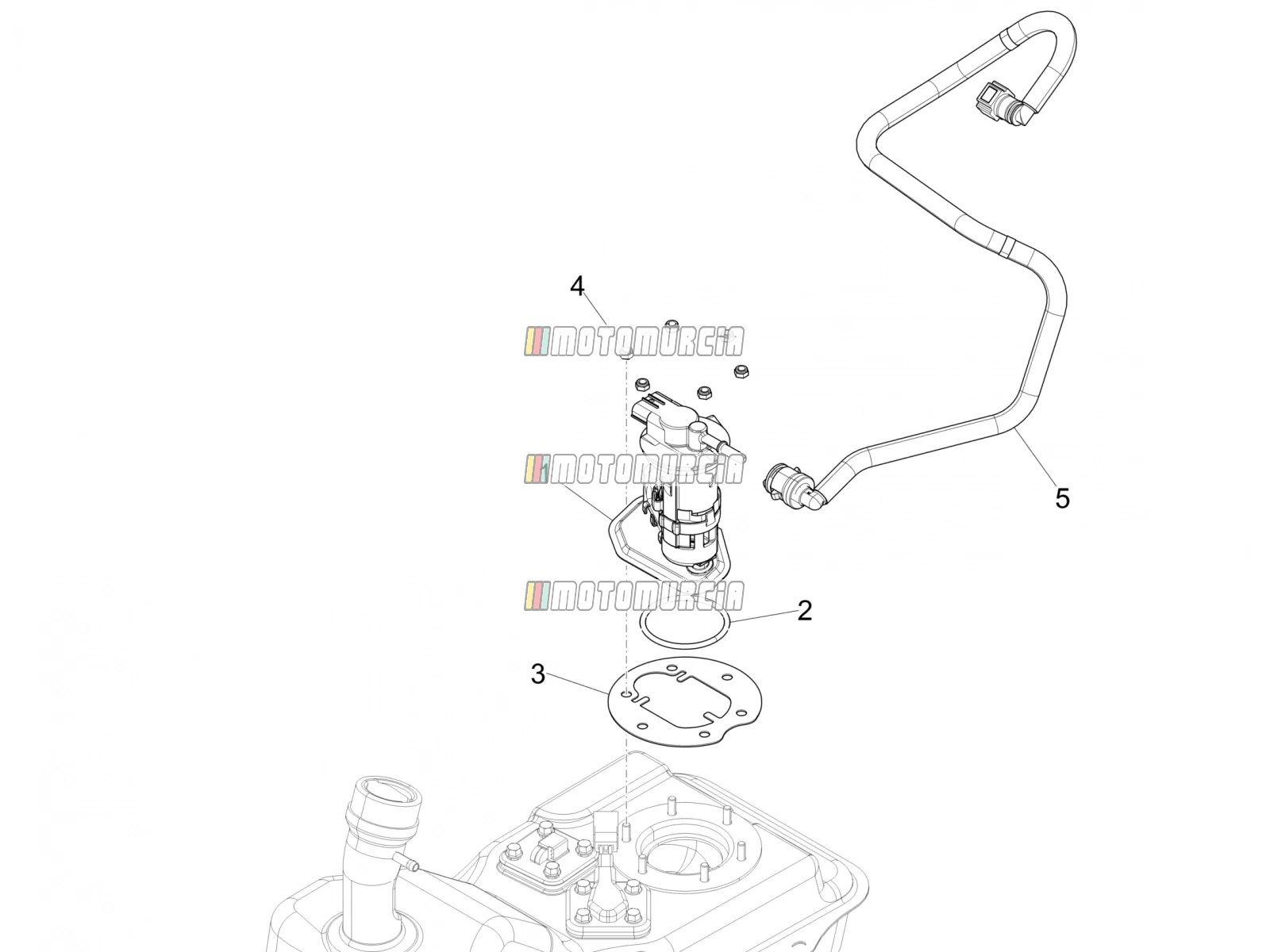

Exploded view — Supply System

‹ Back to model
Piaggio Fly 150 3V ie 2015 Piaggio Fly 150 3V ie 2015
Supply System

Products

1 Fuel pump Available 642888
  • Petrol Pump Piaggio Group · 642888 Available · Shipped in 3–5 working days
    € 398,94
2 O-Ring Backorder 781056
  • O-Ring Piaggio Group · 781056 Backorder · Shipped in 2–4 weeks
    € 8,68
3 Gasket Backorder 781063
  • Bracket Piaggio Group · 781063 Backorder · Shipped in 2–4 weeks
    € 13,27
4 Nut Available 804457
    • Country: Australia
    • Country: New Zealand
    Standard nut Piaggio Group · 804457 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 3,32
5 Fuel hose Backorder 1B001595

More drawings of this model

View all →
Air Filter Air Filter View drawings Anti-percolation System Anti-percolation System View drawings Crankcase Crankcase View drawings Crankcase Cover - Crankcase Cooling Crankcase Cover - Crankcase Cooling View drawings Crankshaft Crankshaft View drawings Cylinder Head Cover Cylinder Head Cover View drawings Cylinder-piston-wrist Pin Unit Cylinder-piston-wrist Pin Unit View drawings Driven Pulley Driven Pulley View drawings Driving Pulley Driving Pulley View drawings Engine, Assembly Engine, Assembly View drawings Oil Pump Oil Pump View drawings Reduction Unit Reduction Unit View drawings
