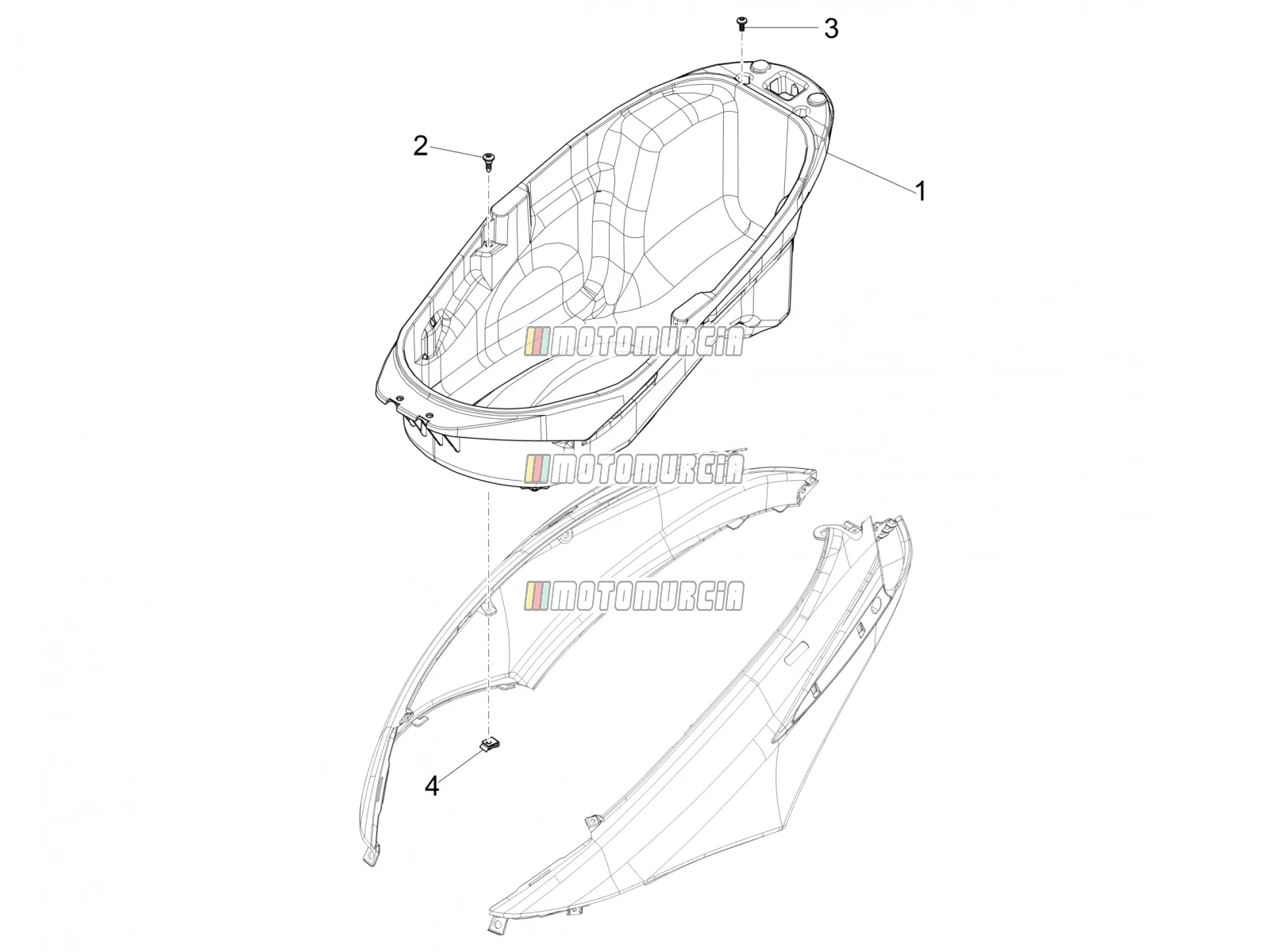

Exploded view — Helmet Huosing - Undersaddle

‹ Back to model
Piaggio Fly 150 3V ie 2018 Piaggio Fly 150 3V ie 2018
Helmet Huosing - Undersaddle

Products

1 Helmet compartment Backorder 1B000047
    • Country: China
    Helmet Box APAC (Asia) Piaggio Group · 1B000047 Backorder · Shipped in 2–4 weeks
    € 166,58
2 Screw Available CM179201
  • Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
3 Screw Available CM179301
    • Country: Indonesia
    • Country: Japan
    Screw M6x16 Piaggio Group · CM179301 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
4 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,04
