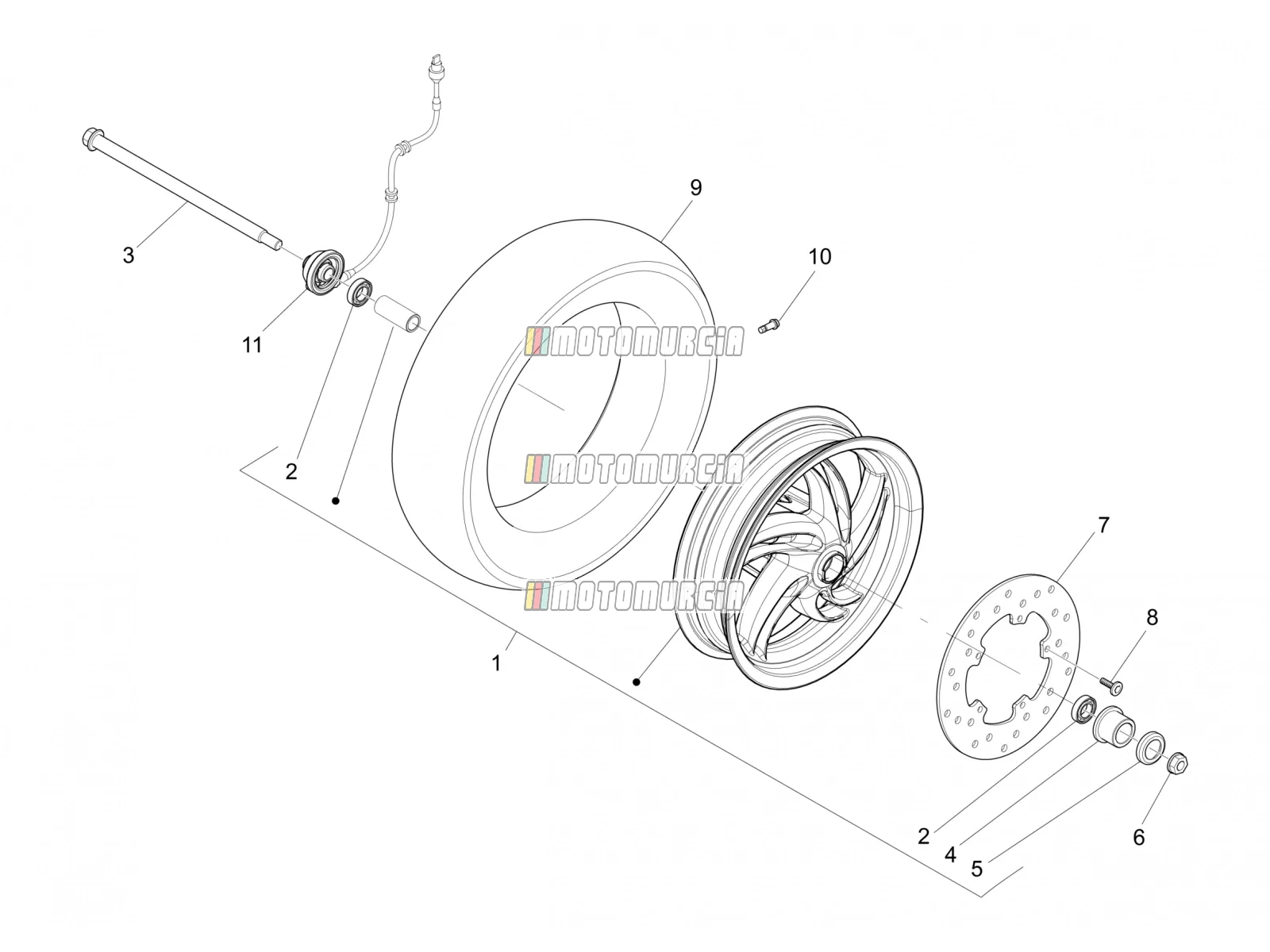

Exploded view — Front Wheel

‹ Back to model

Piaggio Fly 50 4T 4V 2015

Piaggio Fly 50 4T 4V 2015

Front Wheel

Products

1 Front wheel complete with bearings Backorder 6691835

Rim complete front Piaggio Group · 6691835 Backorder

€ 165,35

2 Wheel bearing Available 649910

Ball bearing 6202 C-2HRS, 15x35x11 mm Piaggio Group · 649910 · Quantity needed: 2 Available

€ 18,00

3 Front wheel axle Front Available 668796

Wheel Axle front Piaggio Group · 668796 Available

€ 32,67

4 Spacer (front wheel) Available 564527

Spacer Piaggio Group · 564527 Available

€ 11,52

5 Cover Available 5644756

Cover Piaggio Group · 5644756 Available

€ 2,30

6 Nut Available 271740

Standard nut M12 Piaggio Group · 271740 Available

€ 2,47

7 Brake disc Available 666761

Brake Disk front Piaggio Group · 666761 Available

€ 89,65

8 Cylindrical screw 1C002563 No longer available

1C002563 Cylindrical screw Quantity needed: 5
No longer available

9 Tyre (Duro) 120/70 R12 666867 No longer available

666867 Tyre (Duro) 120/70 R12
No longer available
Tyres 120/70-12, 58P, TL, MC20 front/rear, reinforced Piaggio Group · 598277 Available

€ 92,83
Tyres 120/70-15, TL Piaggio Group · 664014 Backorder

€ 170,21

10 Tubeless tyre valve Available 270991

Tyre valves Piaggio Group · 270991 Available

€ 6,80

11 Spedometer socket Available CM075505

Speedo drive Piaggio Group · CM075505 Available

€ 62,24
