Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Piaggio Liberty 125 2007

Piaggio Liberty 125 2007

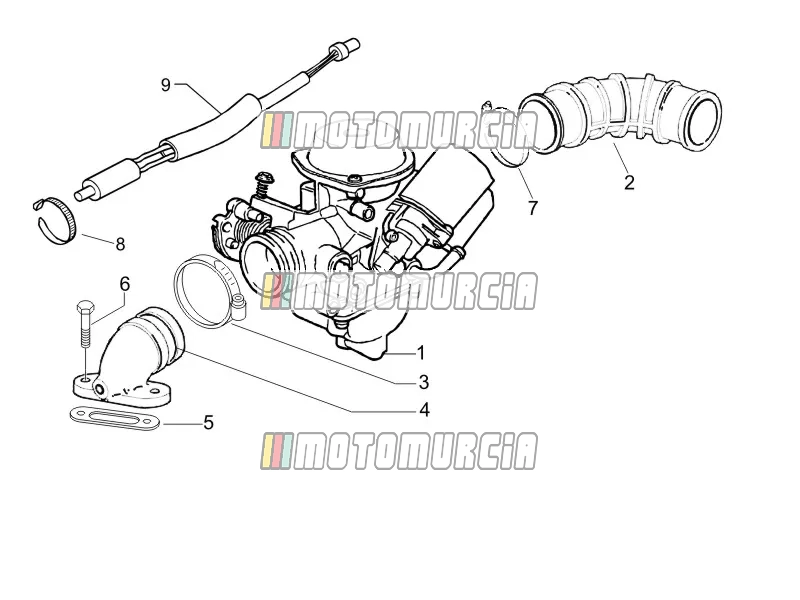

Carburettor, Assembly - Union Pipe

Products

1 Carburettor keihin Backorder CM153205

Carburettor CVEK-2700B Piaggio Group · CM153205 Backorder

€ 473,91
Carburettor Keihin CVEK27-2707 Piaggio Group · CM156010 Available

€ 513,12

2 Air bellow Available 829001

Intake Manifold Piaggio Group · 829001 Available

€ 30,31

3 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

4 Intake Manifold Available 871973

Intake manifold Piaggio Group · 871973 Available

€ 35,72

5 Intake manifold Gasket Available 871167

Gasket Piaggio Group · 871167 Available

€ 1,73

6 Screw (M6x22) Available 1A000352

Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available

€ 3,71

8 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

€ 1,43

9 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64
