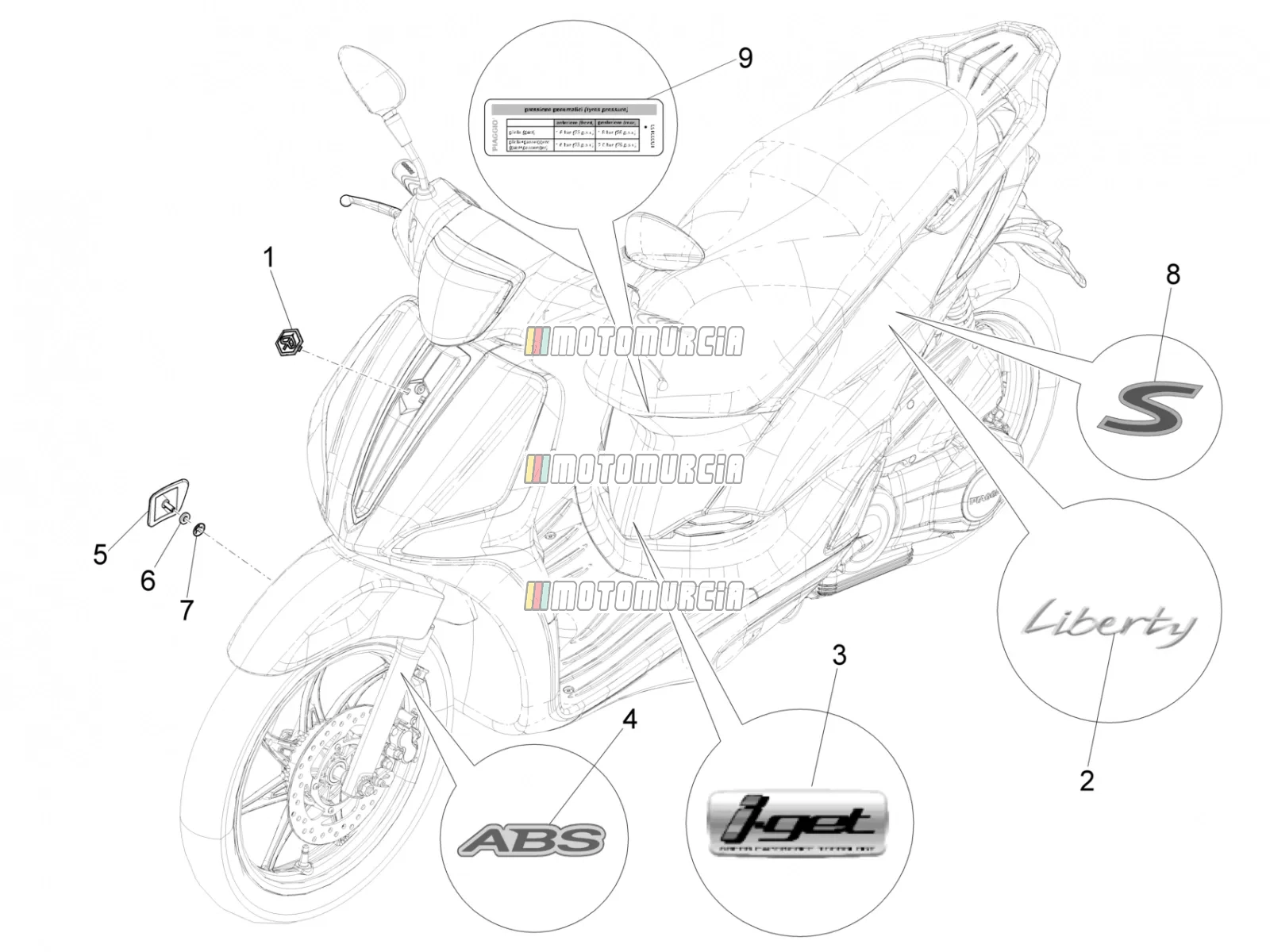

Exploded view — Plates - Emblems

‹ Back to model

Piaggio Liberty 125 iGet ABS 2016

Piaggio Liberty 125 iGet ABS 2016

Plates - Emblems

Products

1 Emblem - Decal (42 mm) Available 1B003766

Emblem, motive: Piaggio, blue, silver, Ø 42,00 mm, for plugging in Piaggio Group · 1B003766 Available

€ 14,00

2 Adhesive dataplate "Liberty" Available 2H001170

Lettering, motive: Liberty Piaggio Group · 2H001170 Available

€ 13,09

3 Sticker - Decal (I-GET) Available 2H001199

Decal, motive: i-get Piaggio Group · 2H001199 · Quantity needed: 2 Available

€ 13,27

4 Adhesive dataplate "ABS" Available 2H001245

Decal, motive: ABS Piaggio Group · 2H001245 Available

€ 13,27

5 Name plate "ABS" Available 1B003319

Decal, motive: ABS Piaggio Group · 1B003319 Available

€ 5,26

6 Spacer Available 479882

Spacer disc Piaggio Group · 479882 Available

€ 1,45

7 Spring plate Available 181351

Sheet nut Piaggio Group · 181351 Available

€ 1,26

8 Name plate "S" Available 2H001171

Decal, motive: S Piaggio Group · 2H001171 · Quantity needed: 3 Available

€ 16,76

9 Tyre pressure label Available 1G000156

Sticker, motive: tyre pressure Piaggio Group · 1G000156 Available

€ 4,50
