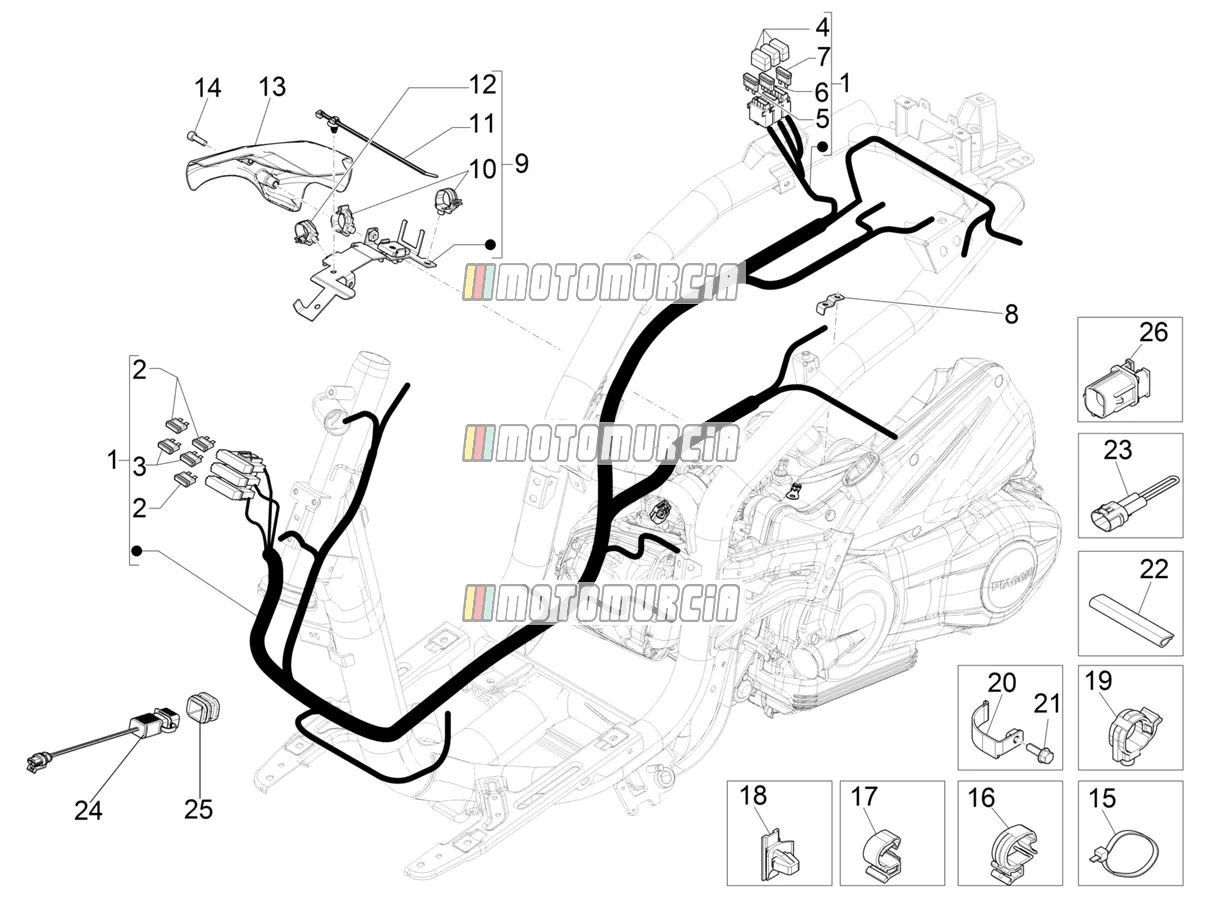

Exploded view — Main Cable Harness
‹ Back to model
Piaggio Liberty 150 2021
Products
1 Cable harness Available
-
Wiring harness Piaggio Group · 1D003190 Available€ 454,22
2 Fuse (7,5A) Available
-
Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 3 Available€ 2,86
3 Fuse (5A) Available
-
Fuse 5 A Piaggio Group · 293256 · Quantity needed: 2 Available€ 2,09
4 Cover Available
-
Lid Piaggio Group · 290404 · Quantity needed: 3 Available€ 9,08
5 Fuse (20A) Available
-
Fuse 20 A Piaggio Group · 580561 Available€ 6,01
6 Fuse 25A Available
-
Fuse 25 A Piaggio Group · 291570 Available€ 2,26
7 Fuse (10A) Available
-
Fuse 10 A Piaggio Group · 292507 Available€ 2,86
8 Support clamp Available
-
Bracket Piaggio Group · 680036 Available€ 2,73
9 Bracket with U.P. Backorder
-
Bracket Piaggio Group · 1B008080 Backorder€ 29,85
11 Wiring clip Available
-
Clamp Piaggio Group · 1D001143 Available€ 1,45
12 Non return spring Available
-
Clamp Piaggio Group · CM006912 Available€ 9,20
13 Wiring cover Available
-
Protection piece Piaggio Group · 1B002068 Available€ 13,10
14 Screw Available
-
Cylinder head screw M6x20 Piaggio Group · 709674 · Quantity needed: 2 Available€ 1,48
15 Lock-strap L=180mm Available
-
Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 4 Available€ 1,43
16 Pipes/cables retainer spring Available
-
Clamp Piaggio Group · CM013202 Available€ 3,13
17 Clamp Available
-
Clamp Piaggio Group · CM013201 · Quantity needed: 2 Available€ 1,32
18 Spring for connector Available
-
Clamp Piaggio Group · 639560 Available€ 4,59
19 6 - Non return spring L=23 Available
-
Clamp length: 23mm Piaggio Group · CM006908 · Quantity needed: 2 Available€ 5,64
20 Clamp Available
-
Clamp Piaggio Group · 1D001097 Available€ 4,15
21 Screw M5x14 Available
-
Screw M5x14 Piaggio Group · 031057 Available€ 0,99
22 Guard Available
-
Protection piece Piaggio Group · 583282 Available€ 6,91
23 Complete connector Available
-
Cable Plug Piaggio Group · 1D000167 Available€ 5,01
24 USB port Available
-
USB socket Piaggio Group · 1D003323 Available€ 171,53
25 Fairlead Available
-
Bracket rubber Piaggio Group · 1B001591 Available€ 4,82
26 Cover Available
-
Cap Piaggio Group · 1D002384 Available€ 5,38
