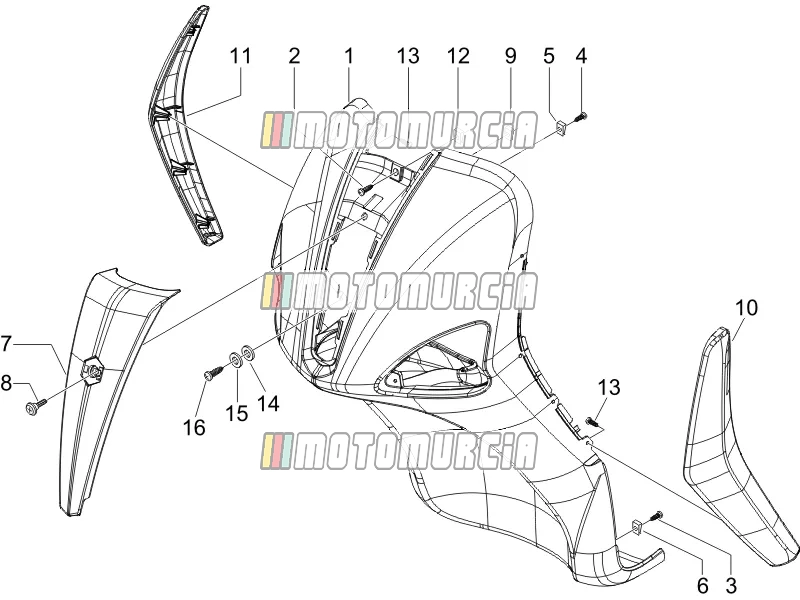

Exploded view — Front Shield
‹ Back to model
Piaggio Liberty 50 4T Delivery 2011
Products
1 Front fairing
-
6228230090 Front fairingNo longer available
-
62282300BR Front fairing
- Country: Spain
Front shield white, Suffix: BR_white montebianco / innocenza /544 Piaggio Group · 62282360BR ↻ Replaces 62282300BR, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 271,16 -
62282300NM Front fairingFront Shield, black, Suffix: NM_black 90/B Piaggio Group · 62282360NM ↻ Replaces 62282300NM, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 487,06
-
62282300R7 Front shieldFront shield red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 62282360R7 ↻ Replaces 62282300R7, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 487,06
-
62282300RV Front fairingFront Shield, red, Suffix: RV_pastel red 869/A Piaggio Group · 62282360RV ↻ Replaces 62282300RV, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 487,06
-
Front Shield, blue, Suffix: A3_blue sidereal 280/A Piaggio Group · 62282300A3 Backorder · Shipped in 2–4 weeks€ 279,29
-
62282300BZ Front fairingFront Shield, white, Suffix: BU_white stella 595 Piaggio Group · 62282360BZ ↻ Replaces 62282300BZ, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 487,06
-
Front Shield, primed Piaggio Group · 622823 Available · Shipped in 3–5 working days€ 391,65
3 Screw (M6x16) Available
-
Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
4 Screw (4,2x19) Available
-
Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
5 Clip nuts Available
-
Sheet nut Piaggio Group · CM017410 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
6 Clip nuts (M6) Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,04
7 Cover Backorder
-
Cascade, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 67466800R7 Backorder · Shipped in 2–4 weeks€ 113,32
-
6211980090 Front coverCascade black, Suffix: 90_black shiny 094 Piaggio Group · 6211986090 ↻ Replaces 6211980090, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 67,26
-
Cascade, white, Suffix: BR_white montebianco / innocenza /544 Piaggio Group · 67466800BR Available · Shipped in 3–5 working days€ 113,32
-
Cascade, white, Suffix: BZ_white stella 595 Piaggio Group · 67466800BZ Available · Shipped in 3–5 working days€ 113,32
-
674668 Front booby hatchCascade, primed Piaggio Group · 1B005150 ↻ Replaces 674668, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 36,26
-
Cascade, black, Suffix: NM_black 90/B Piaggio Group · 67466800NM Backorder · Shipped in 2–4 weeks€ 16,94
-
Cascade, blue, Suffix: A3_blue sidereal 280/A Piaggio Group · 67466800A3 Available · Shipped in 3–5 working days€ 90,65
-
67466800RV Front coverCascade, red, Suffix: RV_pastel red 869/A Piaggio Group · 1B005150000RV ↻ Replaces 67466800RV, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 47,08
8 Screw Available
-
Thread Screw 4,2x19 mm Piaggio Group · 008457 Available · Shipped in 3–5 working days€ 1,59
9 Clip nuts Available
-
Sheet nut Piaggio Group · CM017409 Available · Shipped in 3–5 working days€ 1,48
10 Deflector l.h. Available
-
Cover, left Piaggio Group · CM0200010043 Available · Shipped in 3–5 working days€ 23,67
11 Deflector r.h. Available
-
Cover, right Piaggio Group · CM0200020043 Available · Shipped in 3–5 working days€ 23,67
13 Screw Available
-
- Red version
Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 8 Available · Shipped in 3–5 working days€ 0,99
14 Washer (spring) Available
-
- Braking system with pressure regulator valve 597687
Snap-in Ring 12x6,4x0,5 mm Piaggio Group · 006976 Available · Shipped in 3–5 working days€ 1,79
15 Washer Available
-
Washer 15x8,4x1,5 mm Piaggio Group · 003058 Available · Shipped in 3–5 working days€ 1,84
16 Screw Available
-
Screw M8x20 Piaggio Group · 599009 Available · Shipped in 3–5 working days€ 1,72
