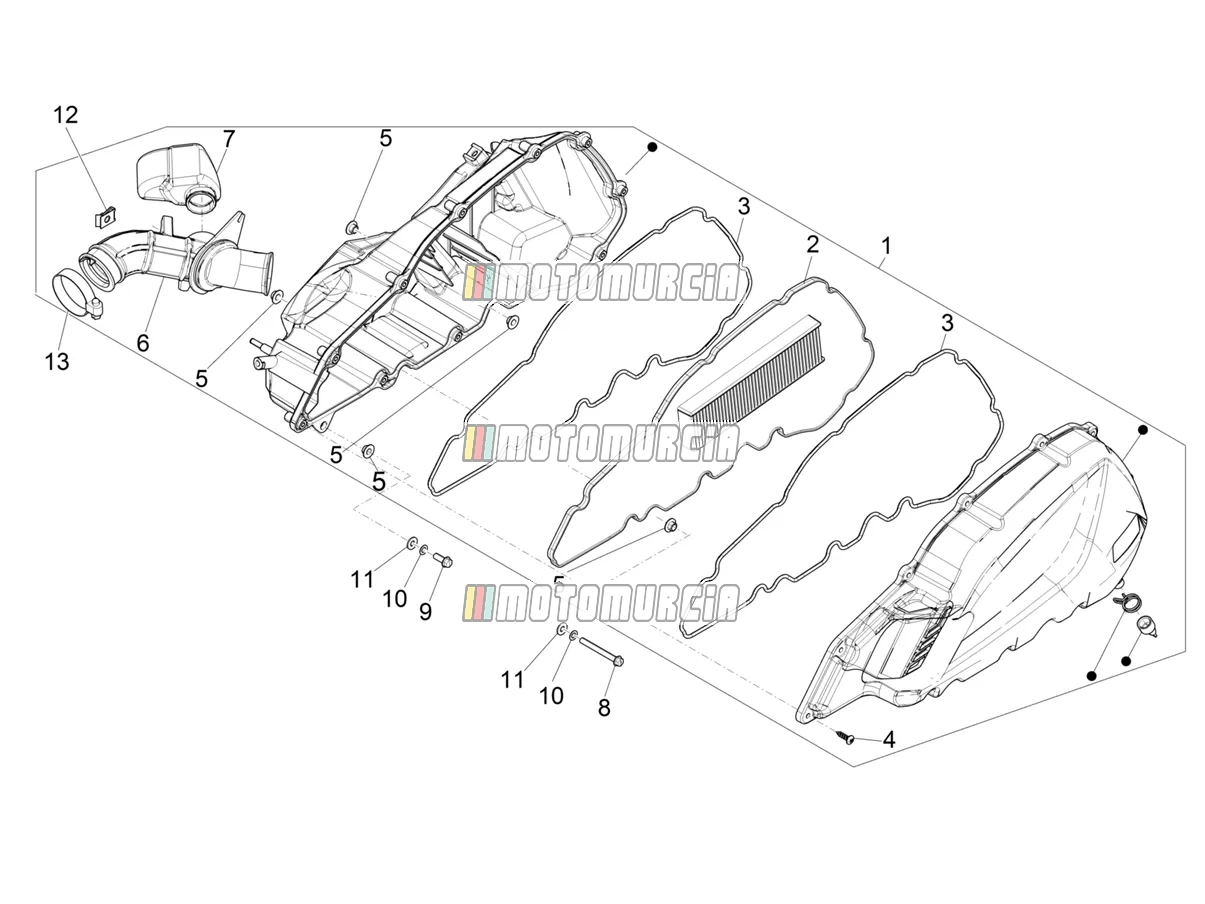

Exploded view — Air Filter

Products

1 Air filter box Available 1A016565

•

  Air Filter complete Piaggio Group · 1A016565 Available

  € 255,08

  Add to cart

2 Air filter Available 1A016566

•

  Air Filter Insert Piaggio Group · 1A016566 Available

  € 17,98

  Add to cart

3 Seal air filter box Available 1A013599

•

  Gasket Piaggio Group · 1A013599 · Quantity needed: 2 Available

  € 5,05

  Add to cart

4 Screw Available 267958

•

  Sheet Metal Screw length: 20mm Piaggio Group · 267958 · Quantity needed: 13 Available

  € 0,99

  Add to cart

5 10 - Knurled bushing Available 1A006247

•

  Sleeve Piaggio Group · 1A006247 · Quantity needed: 5 Available

  € 1,45

  Add to cart

6 Air bellow Available 1A014650

•

  Sleeve Piaggio Group · 1A014650 Available

  € 16,30

  Add to cart

7 Resonator volume Available 1A014735

•

  Expansion Tank Piaggio Group · 1A014735 Available

  € 16,48

  Add to cart

8 10 - Screw (M6x55) Available 1A006274

•

  Screw Piaggio Group · 1A006274 · Quantity needed: 2 Available

  € 3,99

  Add to cart

9 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 Available

  € 1,48

  Add to cart

10 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 3 Available

  € 1,45

  Add to cart

11 Washer Available 006125

•

  Washer Piaggio Group · 006125 · Quantity needed: 3 Available

  € 1,75

  Add to cart

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

13 Clamp Available 1A000833

•

  Clamp Piaggio Group · 1A000833 Available

  € 10,74

  Add to cart
