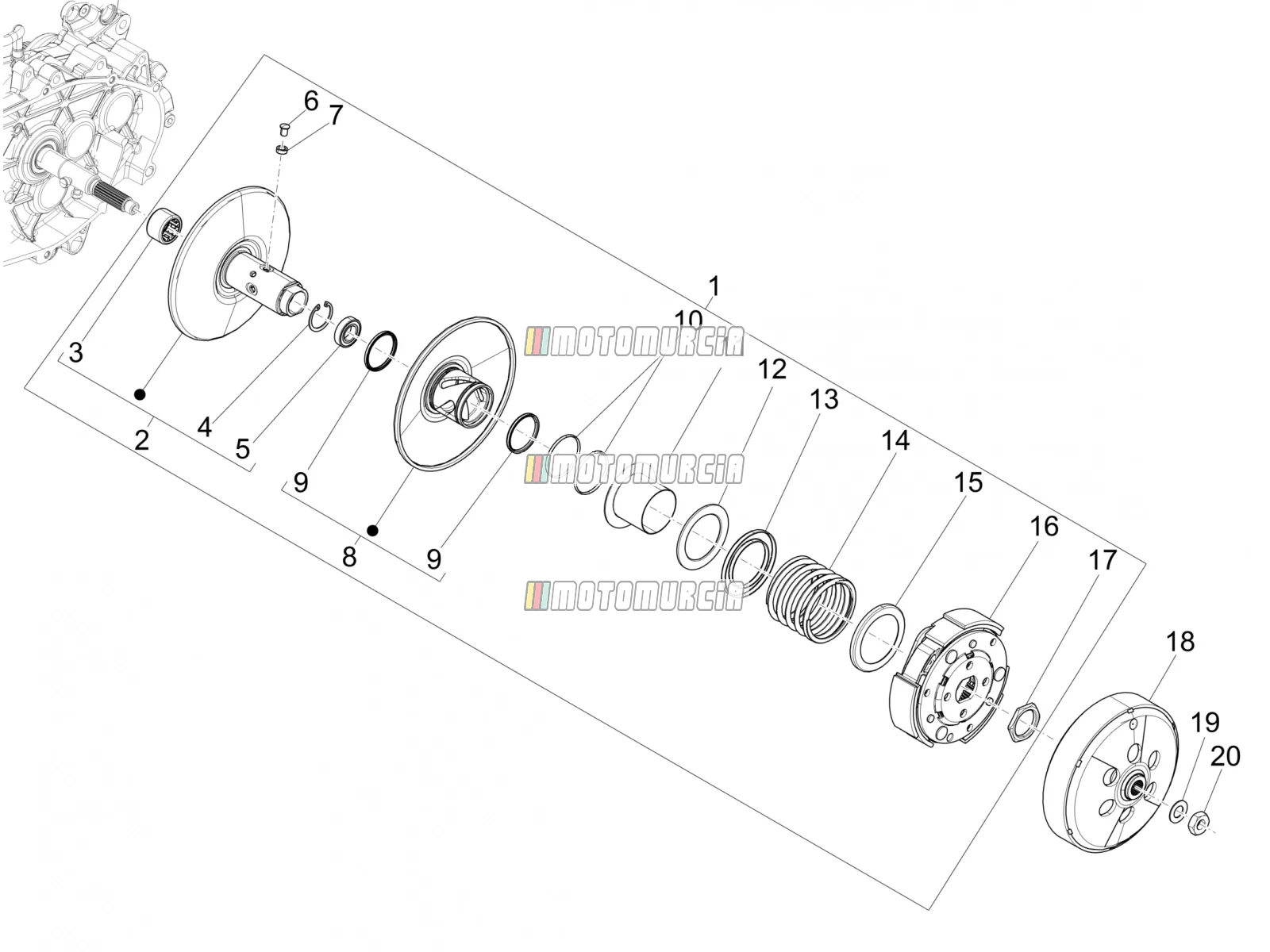

Exploded view — Driven Pulley

Products

1 Clutch complete (with driven pulley) Available CM288402

•

  Pulley Wheel Piaggio Group · CM288402 Available

  € 266,64

  Add to cart

2 Fixed driven half pulley Available 1A007072

•

  Pulley halves Piaggio Group · 1A007072 Available

  € 65,64

  Add to cart

3 Needle bearing Available 82518R

•

  Needle bearing 20x29x18 mm Piaggio Group · 82518R Available

  € 30,29

  Add to cart

4 Snap ring Available 006628

•

  Snap-in Ring Piaggio Group · 006628 Available

  € 5,63

  Add to cart

5 Radial ball bearing Available 1A002689

•

  Radial bearing Piaggio Group · 1A002689 Available

  € 21,16

  Add to cart

6 Pin Available B014466

•

  Bolts Piaggio Group · B014466 · Quantity needed: 4 Available

  € 2,70

  Add to cart

7 Roller Available 431091

•

  Spacer Bush Piaggio Group · 431091 · Quantity needed: 4 Available

  € 2,96

  Add to cart

8 Adjustable pulley, half Available 1A003430

•

  Pulley halves Piaggio Group · 1A003430 Available

  € 101,04

  Add to cart

9 Gasket ring Available 289950

•

  Oil seal Piaggio Group · 289950 · Quantity needed: 2 Available

  € 11,47

  Add to cart

10 Gasket Available 289840

•

  Gasket Piaggio Group · 289840 · Quantity needed: 2 Available

  € 2,83

  Add to cart

11 Pulley side cap Available 1A002035

•

  Spring Mount Piaggio Group · 1A002035 Available

  € 5,18

  Add to cart

12 Washer (plastic) Available 1A002038

•

  Spacer disc plastic Piaggio Group · 1A002038 Available

  € 4,56

  Add to cart

13 Spring seat Available 1A002036

•

  Spring Mount Piaggio Group · 1A002036 Available

  € 8,68

  Add to cart

14 Spring Available 1A003435

•

  Converter spring Piaggio Group · 1A003435 Available

  € 20,70

  Add to cart

15 Clutch side cap Available 1A002037

•

  Spring Mount Piaggio Group · 1A002037 Available

  € 9,22

  Add to cart

16 Complete centrifugal clutch assembly Available CM288502

•

  Clutch Shoes Piaggio Group · CM288502 Available

  € 249,20

  Add to cart

17 Clutch nut Available 289955

•

  Standard nut Piaggio Group · 289955 Available

  € 14,90

  Add to cart

18 Clutch bell Available 1A010971

•

  Clutch Case Piaggio Group · 1A010971 Available

  € 68,87

  Add to cart

19 Washer (22x12,1x19) Available 274246

•

  Washer 22x12,1x1 mm Piaggio Group · 274246 Available

  € 1,26

  Add to cart

20 Nut Available B016992

•

  Standard nut Piaggio Group · B016992 Available

  € 2,57

  Add to cart
