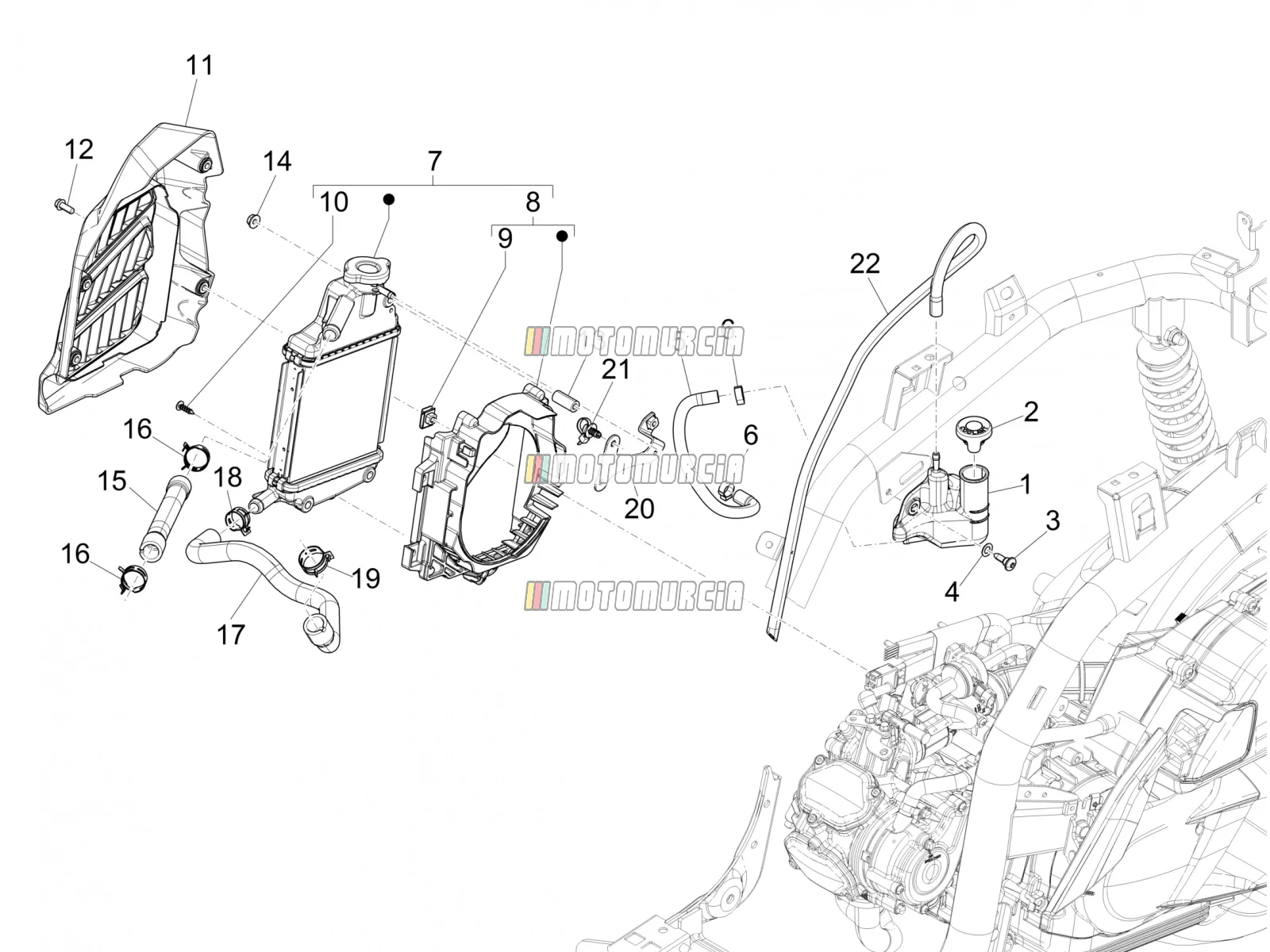

Exploded view — Cooling System

‹ Back to model
Piaggio Medley 150 ie ABS (E3, E4) (APAC) 2020 Piaggio Medley 150 ie ABS (E3, E4) (APAC) 2020
Cooling System

Products

1 Expansion tank Available 1B002267
2 Cover Available 1B002766
  • Tank Cap Piaggio Group · 1B002766 Available
    € 21,18
3 Screw Available CM179201
  • Screw M6x22 Piaggio Group · CM179201 Available
    € 0,99
4 Washer Available 709047
  • Washer Piaggio Group · 709047 Available
    € 0,99
5 Water hose Available CM278701
6 Clamp Available CM001901
  • Clamp Piaggio Group · CM001901 · Quantity needed: 2 Available
    € 2,04
7 Radiator - water cooler Available 1A017507
  • Radiator Piaggio Group · 1A017507 Available
    € 242,11
8 Air duct Available 1A007893
  • Guide Plate Piaggio Group · 1A007893 Available
    € 14,62
9 Spring plate Available 1A003988
  • Sheet nut Piaggio Group · 1A003988 · Quantity needed: 3 Available
    € 2,23
10 Screw Available 267958
11 Radiator cover Available 1A006626
12 Screw w/ flange M6x16 Available 1A006359
  • Screw M6x16 Piaggio Group · 1A006359 · Quantity needed: 4 Available
    € 2,89
13 Spacer Available 1A001859
  • Spacer Piaggio Group · 1A001859 · Quantity needed: 4 Available
    € 2,15
14 Nut (Flanged) Available 874558
  • Standard nut Piaggio Group · 874558 · Quantity needed: 4 Available
    € 2,54
15 Water cooler-head tube Available 1A006075
  • Radiator hose Piaggio Group · 1A006075 Available
    € 15,38
16 Hose clamp Available CM226910
  • Clamp 24/12 Piaggio Group · CM226910 · Quantity needed: 2 Available
    € 4,45
17 Water cooler-pump tube Available 1A006076
  • Radiator hose Piaggio Group · 1A006076 Available
    € 24,76
18 Spring clamp 22/12 Available CM226903
  • Clamp Piaggio Group · CM226903 Available
    € 4,04
19 Hose clamp Available CM226911
  • Clamp Piaggio Group · CM226911 Available
    € 4,72
20 Rod Backorder 1A006358
  • Bracket Piaggio Group · 1A006358 Backorder
    € 6,59
21 Wiring clip Available 1D001143
  • Clamp Piaggio Group · 1D001143 Available
    € 1,45
22 Fuel breather pipe Available CM001433
  • Breather Pipe Piaggio Group · CM001433 Available
    € 11,37
