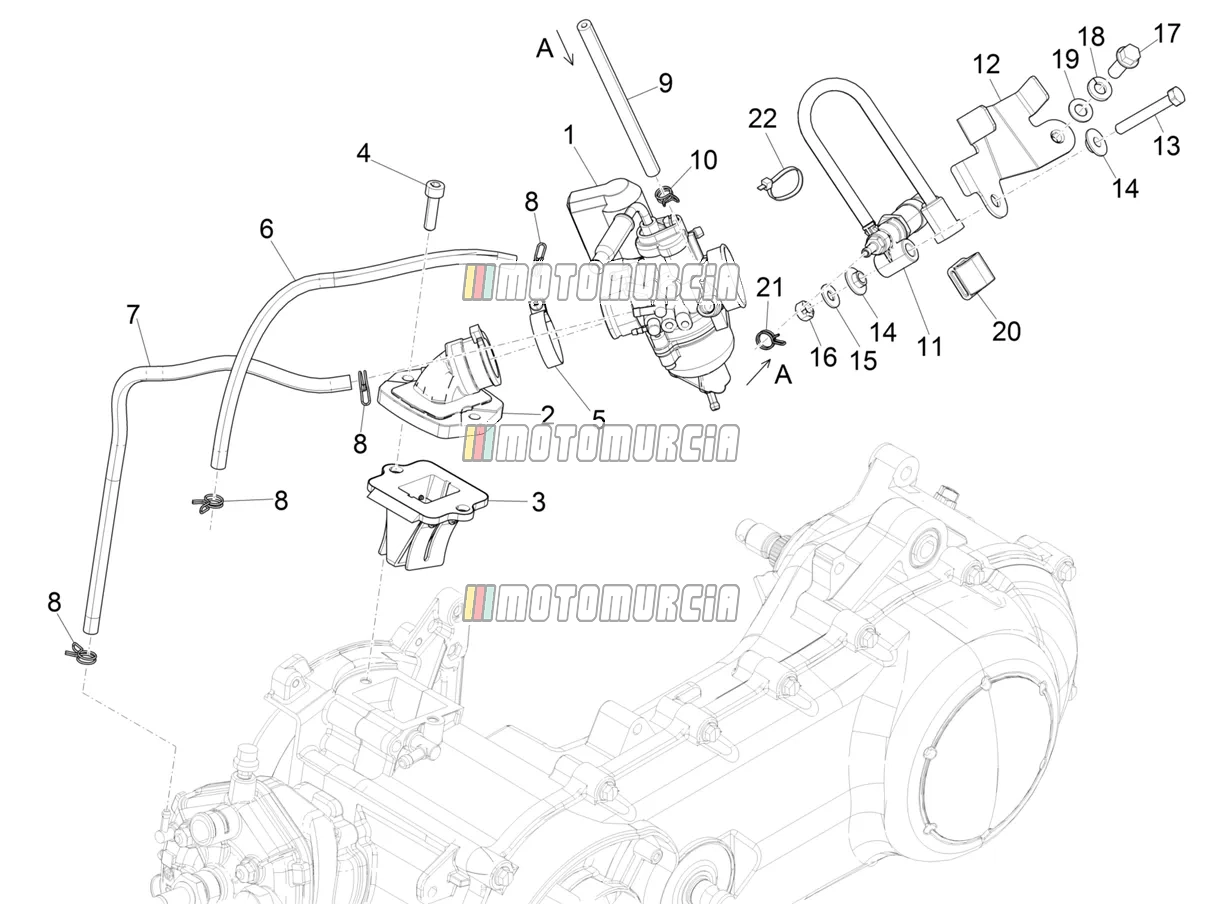

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 Carburetor assembly PHVA17.5 (MAJ2) Available CM290003

• CM290003 Carburetor assembly PHVA17.5 (MAJ2)


  Carburettor PHVA 17,5 MAJ2 Piaggio Group · CM2900036 ↻ Replaces CM290003, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 326,42

  Add to cart

2 Intake Manifold Available 1A008824

•

  Intake manifold Piaggio Group · 1A008824 Available · Shipped in 3–5 working days

  € 15,10

  Add to cart

3 Reed valve Available 82775R

• • Injection version (C361M)


  Reed valve Piaggio Group · 82775R Available · Shipped in 3–5 working days

  € 47,24

  Add to cart

4 Antitampering screw M6x22 Available 1A011416

•

  Screw M6x22 Piaggio Group · 1A011416 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart
• 1A009552 Self-Shearing screw Quantity needed: 2


  Screw M6x22 Piaggio Group · 1A011416 ↻ Replaces 1A009552, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,59

  Add to cart

5 Clamp 1A006280 No longer available

• 1A006280 Clamp
  No longer available

6 Head-carb.by-pass pipe Available 484260

• • Carburettor version (C364M)


  Hose Piaggio Group · 484260 Available · Shipped in 3–5 working days

  € 13,24

  Add to cart

7 Carb-pump by-pass pipe Available 488139

• • Carburettor version (C364M)


  Hose Piaggio Group · 488139 Available · Shipped in 3–5 working days

  € 4,78

  Add to cart

9 Depression pipe L. 370 Backorder CM027927

•

  Hose length: 37,0cm Piaggio Group · CM027927 Backorder · Shipped in 2–4 weeks

  € 4,77

  Add to cart

10 Clamp Backorder CM002918

•

  Clamp Piaggio Group · CM002918 Backorder · Shipped in 2–4 weeks

  € 1,43

  Add to cart

11 Solenoid Available 873270

•

  Solenoid valve Piaggio Group · 873270 Available · Shipped in 3–5 working days

  € 88,69

  Add to cart

12 Valve support clamp Backorder 1B005202

•

  Bracket Piaggio Group · 1B005202 Backorder · Shipped in 2–4 weeks

  € 10,14

  Add to cart

13 Screw Available 031087

•

  Screw Piaggio Group · 031087 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Spacer Available 843213

•

  Washer Piaggio Group · 843213 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

15 Washer Available 006078

•

  Washer 12x5,2x1 mm Piaggio Group · 006078 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

16 Nut Available 012112

•

  Standard nut Piaggio Group · 012112 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

17 Screw Available B016777

• • ABS version


  Flanged Screw M6x16 Piaggio Group · B016777 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

18 Washer Available 016406

• • Taiwan


  Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

19 Washer Available 003056

• • Enjoy 2015


  Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

20 Instrument support Available 639632

•

  Plug contact Piaggio Group · 639632 Available · Shipped in 3–5 working days

  € 8,62

  Add to cart

21 Clamp Available CM002901

• • Carburettor version (C364M)
  • Injection version (C361M)
  • Year of manufacture: 2012
  • Year of manufacture: 2013
  • Country: Canada
  • Country: United States of America


  Clamping Spring Piaggio Group · CM002901 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

22 Hose clamp 4.5X280 Available AP8120657

•

  Clamp Piaggio Group · AP8120657 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart
