Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Piaggio NRG Power DT 2012

Piaggio NRG Power DT 2012

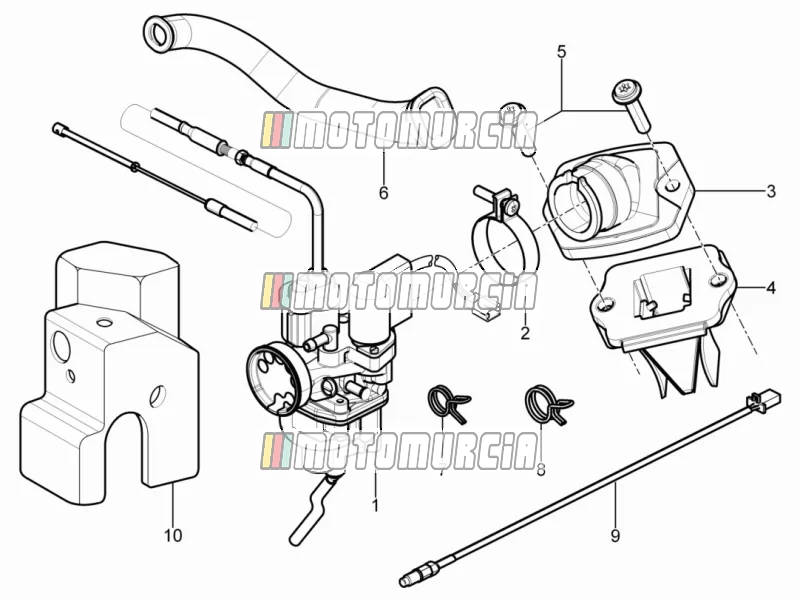

Carburettor, Assembly - Union Pipe

Products

1 Carburettor (PHVA 17,5 RD) Available 846356

Carburettor Piaggio Group · 846356 Available

€ 244,47

2 Clamp 1A006280 No longer available

1A006280 Clamp
No longer available

3 Intake Manifold Available 1A008824

Intake manifold Piaggio Group · 1A008824 Available

€ 15,10

4 Reed valve Available 82774R

Reed valve Piaggio Group · 82774R Available

€ 32,50

5 Screw (M6x22) Available 1A000352

Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available

€ 3,71

6 Air duct Available 488129

Hose Piaggio Group · 488129 Available

€ 17,44

7 Clamp Available CM002901

Clamping Spring Piaggio Group · CM002901 Available

€ 0,99

8 Clamp (D=10 mm) Available CM002905

Clamp Piaggio Group · CM002905 Available

€ 0,99

9 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64

10 Hood for carburettor Available 832186

Bonnet Piaggio Group · 832186 Available

€ 19,03
