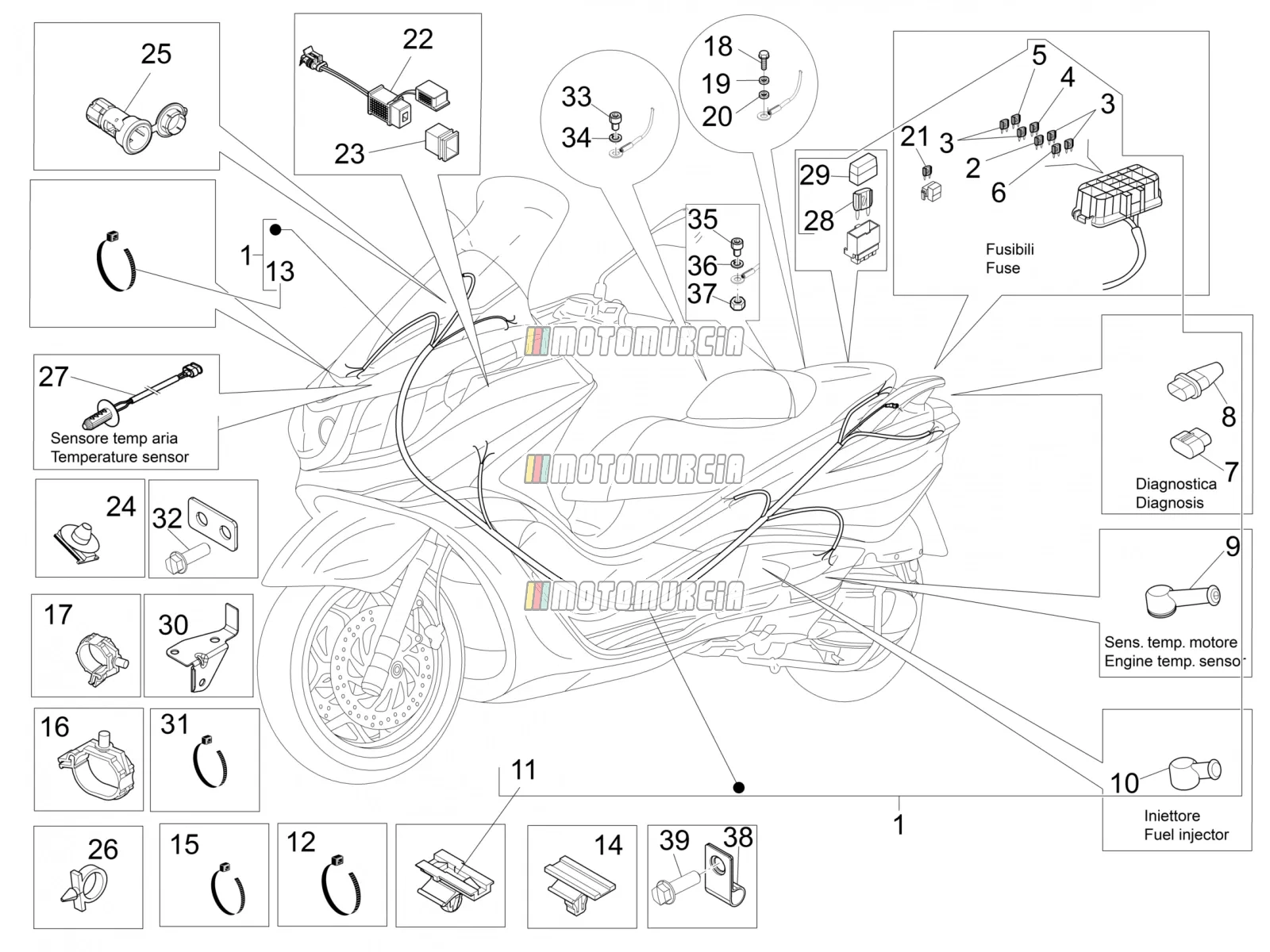

Exploded view — Main Cable Harness

Products

1 Main wiring harness Backorder 643214

•

  Wiring harness Piaggio Group · 643214 Backorder · Shipped in 2–4 weeks

  € 1.220,67

  Add to cart

2 Mini fuse 10A Available CM080906

•

  Fuse Piaggio Group · CM080906 Available · Shipped in 3–5 working days

  € 3,44

  Add to cart

3 Mini fuse 7,5A Available CM080905

•

  Fuse 7,5 A Piaggio Group · CM080905 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 4,08

  Add to cart

4 Mini fuse 5A Available CM080904

•

  Fuse Mini, 5 A Piaggio Group · CM080904 Available · Shipped in 3–5 working days

  € 3,47

  Add to cart

5 Mini fuse 3A Available CM080902

•

  Fuse Mini, 3 A Piaggio Group · CM080902 Available · Shipped in 3–5 working days

  € 1,96

  Add to cart

6 Mini fuse 15A Available CM080907

•

  Fuse Mini, 15 A Piaggio Group · CM080907 Available · Shipped in 3–5 working days

  € 4,01

  Add to cart

7 Plug connect diagnos ECU Available 582928

•

  Covering Cap, for diagnostic connector Superseal Piaggio Group · 582928 Available · Shipped in 3–5 working days

  € 3,34

  Add to cart

8 Cap Available 292577

•

  Covering Cap Piaggio Group · 292577 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,40

  Add to cart

9 Cap Available 581061

•

  Covering Cap Piaggio Group · 581061 Available · Shipped in 3–5 working days

  € 8,30

  Add to cart

10 Cap Available 583971

•

  Lid Piaggio Group · 583971 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 15,42

  Add to cart

11 Maintenance Available 584002

• • ABS version


  Clip for cable routing Piaggio Group · 584002 Available · Shipped in 3–5 working days

  € 8,01

  Add to cart

12 Hose clamp Available 257134

• • Taiwan
  • iGET version


  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Spring for connector Available 639560

•

  Clamp Piaggio Group · 639560 Available · Shipped in 3–5 working days

  € 4,59

  Add to cart

15 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 18 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

16 Non return spring l=27 Available CM006904

• • Country: Taiwan


  Clamp length: 27mm Piaggio Group · CM006904 Available · Shipped in 3–5 working days

  € 2,95

  Add to cart
•

  Clamp length: 33mm Piaggio Group · CM006906 Available · Shipped in 3–5 working days

  € 5,01

  Add to cart

17 Pipes/cables retainer spring L=16 Available CM006907

•

  Clip Piaggio Group · CM006907 Available · Shipped in 3–5 working days

  € 5,17

  Add to cart

18 Screw Available 641204

•

  Hexagon Screw Piaggio Group · 641204 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

19 Washer Available 016406

• • Taiwan


  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

20 Washer Available 003056

• • Enjoy 2015


  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

21 Fuse 30A Available CM225730

• • Year of manufacture: 2010
  • Country: Australia


  Fuse 30 A Piaggio Group · CM225730 Available · Shipped in 3–5 working days

  € 5,11

  Add to cart

22 USB port Available 1D001377

• 1D001377 USB port


  USB socket Piaggio Group · 1D003323 ↻ Replaces 1D001377, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 171,53

  Add to cart

23 Fairlead Available 643310

•

  Bracket rubber Piaggio Group · 643310 Available · Shipped in 3–5 working days

  € 2,70

  Add to cart

24 Spring for connector Available 641769

•

  Clip Piaggio Group · 641769 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,46

  Add to cart

25 LV socket 12V Available 294770

• • Business version
  • Sport version


  On-board Socket 12 V Piaggio Group · 294770 Available · Shipped in 3–5 working days

  € 28,46

  Add to cart

26 Elastic spring Available 231590

•

  Clip Piaggio Group · 231590 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

27 Ambient temperature sensor Available 581142

• • Euro 3
  • Year of manufacture: 2010


  Air temperature probe Piaggio Group · 581142 Available · Shipped in 3–5 working days

  € 33,66

  Add to cart

28 Fuse 40A Available 640394

• • ABS version


  Fuse 40 A Piaggio Group · 640394 Available · Shipped in 3–5 working days

  € 4,51

  Add to cart

29 Cover Available 290404

•

  Lid Piaggio Group · 290404 Available · Shipped in 3–5 working days

  € 9,08

  Add to cart

30 Clamp support bracket Backorder 642063

•

  Bracket Piaggio Group · 642063 Backorder · Shipped in 2–4 weeks

  € 14,27

  Add to cart

31 Clamp Backorder 643359

•

  Clamp Piaggio Group · 643359 · Quantity needed: 8 Backorder · Shipped in 2–4 weeks

  € 2,76

  Add to cart

34 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

35 Screw Available 581596

•

  Screw Piaggio Group · 581596 Available · Shipped in 3–5 working days

  € 1,31

  Add to cart

37 Nut Available 9004179059000

• 9004179059000 Nut


  Standard nut Piaggio Group · 1A010205 ↻ Replaces 9004179059000, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

38 Clamp Available 643413

•

  Clamp Piaggio Group · 643413 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

39 Screw Available 969296

• • ABS version
  • E3
  • E4


  Flanged Screw M6x10 Piaggio Group · 969296 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart
