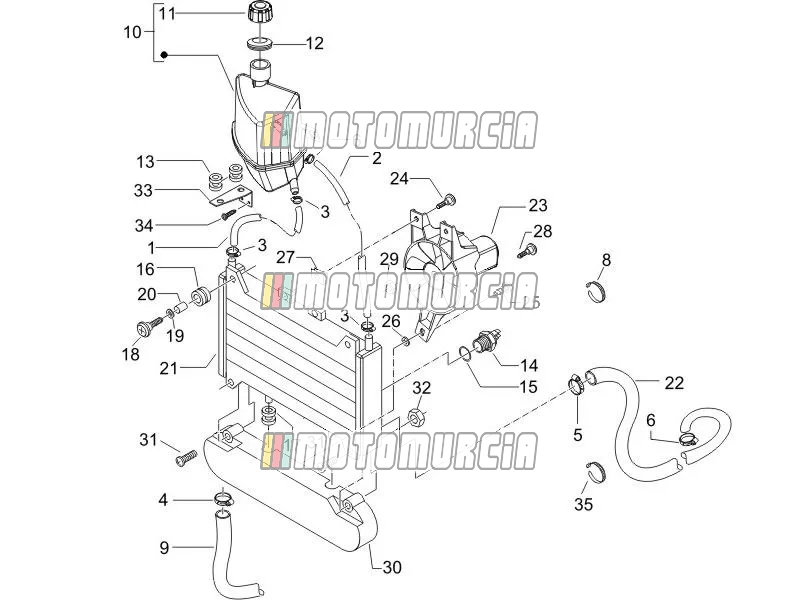

Exploded view — Cooling System

Products

1 Cooler-tank return pipe Backorder 575540

•

  Return Pipe Piaggio Group · 575540 Backorder

  € 20,47

  Add to cart

2 Pipe CM007008 No longer available

• CM007008 Pipe
  No longer available

3 Clamp Available CM001903

•

  Hose Clamp Piaggio Group · CM001903 · Quantity needed: 3 Available

  € 2,18

  Add to cart

4 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

5 Clamp Available CM001907

•

  Hose Clamp Piaggio Group · CM001907 · Quantity needed: 2 Available

  € 2,19

  Add to cart

6 Clamp Available CM001908

•

  Hose Clamp Piaggio Group · CM001908 · Quantity needed: 2 Available

  € 2,35

  Add to cart

8 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 4 Available

  € 0,99

  Add to cart

9 Pipe Available 577537

•

  Radiator hose Piaggio Group · 577537 Available

  € 76,13

  Add to cart

10 Coolant tank Available 655527

•

  Coolant Reservoir Piaggio Group · 655527 Available

  € 51,91

  Add to cart

11 Tank cap Available 623673

•

  Tank Cap Piaggio Group · 623673 Available

  € 19,66

  Add to cart

12 Gasket ring Available 620737

•

  Filler cap seal Piaggio Group · 620737 Available

  € 2,60

  Add to cart

14 Water temperature switch Available 584715

•

  Temperature probe Piaggio Group · 584715 Available

  € 43,10

  Add to cart

15 Copper gasket Available 168077

•

  Copper Flange Gasket Piaggio Group · 168077 Available

  € 5,63

  Add to cart

16 Upper rubber Available 351782

•

  Buffer Piaggio Group · 351782 · Quantity needed: 2 Available

  € 2,67

  Add to cart

17 Damper Available 258904

•

  Buffer Piaggio Group · 258904 · Quantity needed: 2 Available

  € 2,17

  Add to cart

18 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 2 Available

  € 1,48

  Add to cart

19 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 Available

  € 1,26

  Add to cart

20 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 Available

  € 2,18

  Add to cart

21 Radiator - water cooler Available 57301R

•

  Radiator Piaggio Group · 57301R Available

  € 507,47

  Add to cart

22 Pipe 620593 No longer available

• 620593 Pipe
  No longer available

23 Fan engine 580922 No longer available

• 580922 Fan engine
  No longer available

24 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available

  € 1,39

  Add to cart

25 Screw Available 267958

•

  Sheet Metal Screw length: 20mm Piaggio Group · 267958 Available

  € 0,99

  Add to cart

26 Washer (spring) Available 097733

•

  Shim 5,3x14x1 mm Piaggio Group · 097733 Available

  € 3,22

  Add to cart

27 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

28 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 · Quantity needed: 2 Available

  € 0,99

  Add to cart

29 Nut Available 012112

•

  Standard nut Piaggio Group · 012112 · Quantity needed: 2 Available

  € 0,99

  Add to cart

30 Radiator grill closure 624511 No longer available

• 624511 Radiator grill closure
  No longer available

31 Screw Available 015761

•

  Screw M6x30 Piaggio Group · 015761 · Quantity needed: 2 Available

  € 0,99

  Add to cart

32 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available

  € 0,99

  Add to cart

33 Fuel tank bracket Backorder 575864

•

  Bracket Piaggio Group · 575864 Backorder

  € 5,93

  Add to cart

34 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 2 Available

  € 0,99

  Add to cart

35 10 - Fairlead Available CM006903

•

  Clamp Piaggio Group · CM006903 · Quantity needed: 2 Available

  € 4,51

  Add to cart

36 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart
