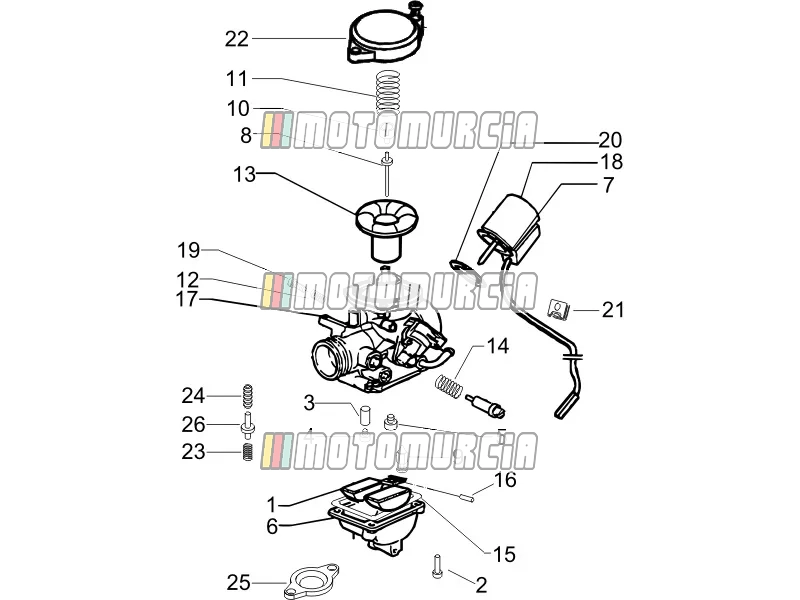

Exploded view — Carburetor's Components

Products

1 Carburetor, Float assy Available 828832

•

  Float Piaggio Group · 828832 Available

  € 53,53

  Add to cart

2 Diffuser tube Available CM142203

•

  Atomiser Piaggio Group · CM142203 Available

  € 26,93

  Add to cart

3 Diffuser Available 828825

•

  Jet Piaggio Group · 828825 Available

  € 18,31

  Add to cart

4 Main jet (75) Available CM142102

•

  Jet Size: 75 Piaggio Group · CM142102 Available

  € 17,77

  Add to cart

5 Idle jet Available CM142302

•

  Idle Jet Size: 35 Piaggio Group · CM142302 Available

  € 17,00

  Add to cart
•

  Jet Piaggio Group · CM142301 Backorder

  € 14,94

  Add to cart

6 Float chamber Available CM142802

•

  Float Chamber Piaggio Group · CM142802 Available

  € 63,67

  Add to cart

7 Starter device Backorder CM142902

•

  Choke elektrisch Piaggio Group · CM142902 Backorder

  € 84,13

  Add to cart

8 Conical pin Available CM142705

•

  Needle Valve Piaggio Group · CM142705 Available

  € 18,85

  Add to cart
•

  Needle Valve APAC (Asia) Piaggio Group · CM142703 Backorder

  € 19,03

  Add to cart

9 Petrol needle Available CM147102

•

  Float Needle Piaggio Group · CM147102 Available

  € 18,08

  Add to cart

10 Cup Available 828822

•

  Needle Jet Holder Piaggio Group · 828822 Available

  € 5,07

  Add to cart

11 Spring Available CM142402

•

  Spring Piaggio Group · CM142402 Available

  € 35,47

  Add to cart

12 10 - Spring Available 828841

•

  Spring Piaggio Group · 828841 Available

  € 3,40

  Add to cart

13 Carburettor diaphragm Available CM146602

•

  Carburettor membrane Piaggio Group · CM146602 Available

  € 111,67

  Add to cart

14 Spring Backorder 828830

•

  Spring Piaggio Group · 828830 Backorder

  € 2,57

  Add to cart

15 Gasket - float chamber Available 497038

•

  Gasket for float chamber Piaggio Group · 497038 Available

  € 13,09

  Add to cart

16 Float pin Available 828833

•

  Pin Piaggio Group · 828833 Available

  € 2,27

  Add to cart

17 Bracket Available 828839

•

  Shackle Piaggio Group · 828839 Available

  € 43,40

  Add to cart

18 Cap Available 828844

•

  Covering Cap Piaggio Group · 828844 Available

  € 17,47

  Add to cart

19 Screw Available 828840

•

  Screw Piaggio Group · 828840 Available

  € 18,05

  Add to cart

20 Plate Available 828843

•

  Locking Plate Piaggio Group · 828843 Available

  € 15,28

  Add to cart

21 Clamp Available 847778

•

  Clamp Piaggio Group · 847778 Available

  € 1,59

  Add to cart

22 Cover Available 828824

•

  Lid Piaggio Group · 828824 Available

  € 59,69

  Add to cart

23 Spring Backorder 828836

•

  Spring Piaggio Group · 828836 Backorder

  € 7,89

  Add to cart

24 Bellows Available 828838

•

  Rubber bellows Piaggio Group · 828838 Available

  € 17,62

  Add to cart

25 Plug Backorder 828837

•

  Lid Piaggio Group · 828837 Backorder

  € 50,53

  Add to cart

26 Pickup pump rod Available CM151801

•

  Needle Piaggio Group · CM151801 Available

  € 55,15

  Add to cart
