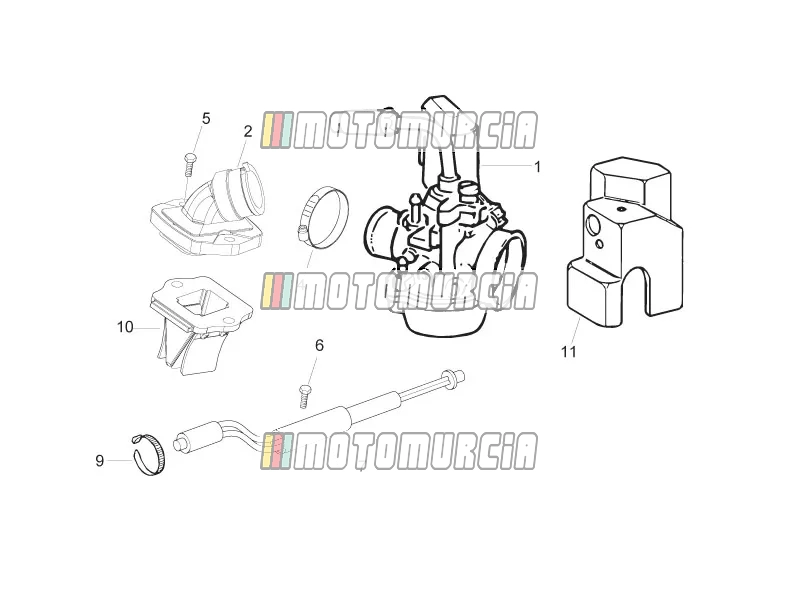

Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Piaggio Zip 50 2T 2013

Piaggio Zip 50 2T 2013

Carburettor, Assembly - Union Pipe

Products

1 Carburettor (PHVA 17,5 RD) Available 874672

Carburettor PHVA 17,5 Piaggio Group · 874672 Available

€ 292,75

2 Intake Manifold Available 1A008824

Intake manifold Piaggio Group · 1A008824 Available

€ 15,10

4 Clamp 1A006280 No longer available

1A006280 Clamp
No longer available

5 Screw (M6x22) Available 1A000352

Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available

€ 3,71

7 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64

9 Clamp Available CM002901

Clamping Spring Piaggio Group · CM002901 Available

€ 0,99
Clamp Piaggio Group · CM002905 Available

€ 0,99

10 Reed valve Available 82774R

Reed valve Piaggio Group · 82774R Available

€ 32,50

11 Hood for carburettor Available 832186

Bonnet Piaggio Group · 832186 Available

€ 19,03
