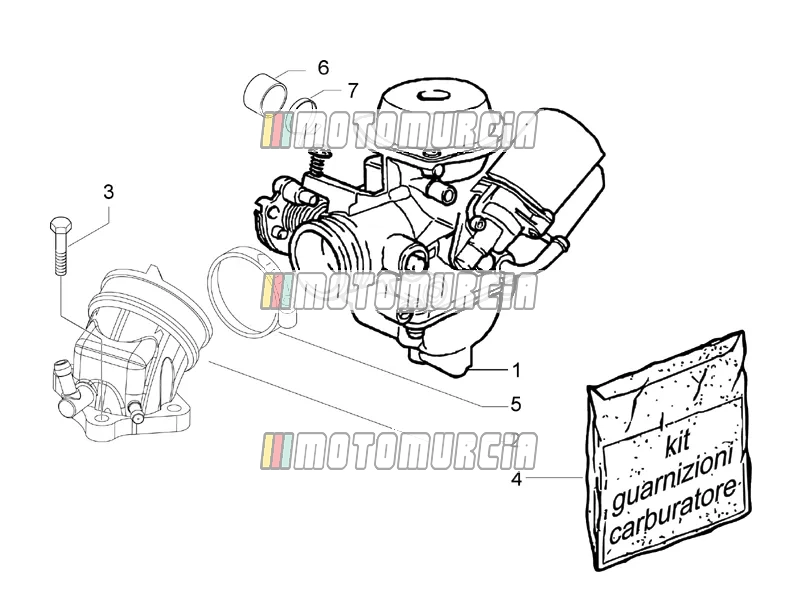

Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Products

1 Carburettor CM128201 No longer available

CM128201 Carburettor
No longer available

2 Intake Manifold Available B016579

Intake manifold, with 2 connections Piaggio Group · B016579 Available

€ 37,22

3 Screw Available 031091

Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 3 Available

€ 0,99

4 Carburettor gasket set Per carburatore WALBRO 494921 No longer available

494921 Carburettor gasket set Per carburatore WALBRO
No longer available

5 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

6 Air intake Available 841695

Air intake Piaggio Group · 841695 Available

€ 4,59

7 Clamp Available CM002916

Hose Clamp Piaggio Group · CM002916 Available

€ 1,48
