Exploded view — Front Glove-box - Knee-guard Panel

‹ Back to model
Vespa GTS 125 ABS 2021 Vespa GTS 125 ABS 2021
Front Glove-box - Knee-guard Panel

Products

1 Front leg shield plate Backorder 1B005767000G03
2 Screw Available CM178604
3 Clip nuts Available CM017408
  • Sheet nut Piaggio Group · CM017408 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
5 Expansion plug Available 199190
6 Screw Available CM178610
  • Thread Screw Piaggio Group · CM178610 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
7 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
8 Net panel (l) Available 1B0034460000C
  • Grid, left Piaggio Group · 1B0034460000C Available · Shipped in 3–5 working days
    € 27,72
9 Net panel (r) Available 1B0034470000C
  • Grid, right Piaggio Group · 1B0034470000C Available · Shipped in 3–5 working days
    € 24,76
11 Right flap Available 577396000C
  • Cover, right, black, dyed Piaggio Group · 577396000C Available · Shipped in 3–5 working days
    € 55,81
  • Hatch, right Piaggio Group · 57739600M01 Available · Shipped in 3–5 working days
    € 55,81
12 Left flap Available 577395000C
  • Cover, left, black, dyed Piaggio Group · 577395000C Available · Shipped in 3–5 working days
    € 55,81
  • Hatch, left Piaggio Group · 57739500M01 Available · Shipped in 3–5 working days
    € 55,81

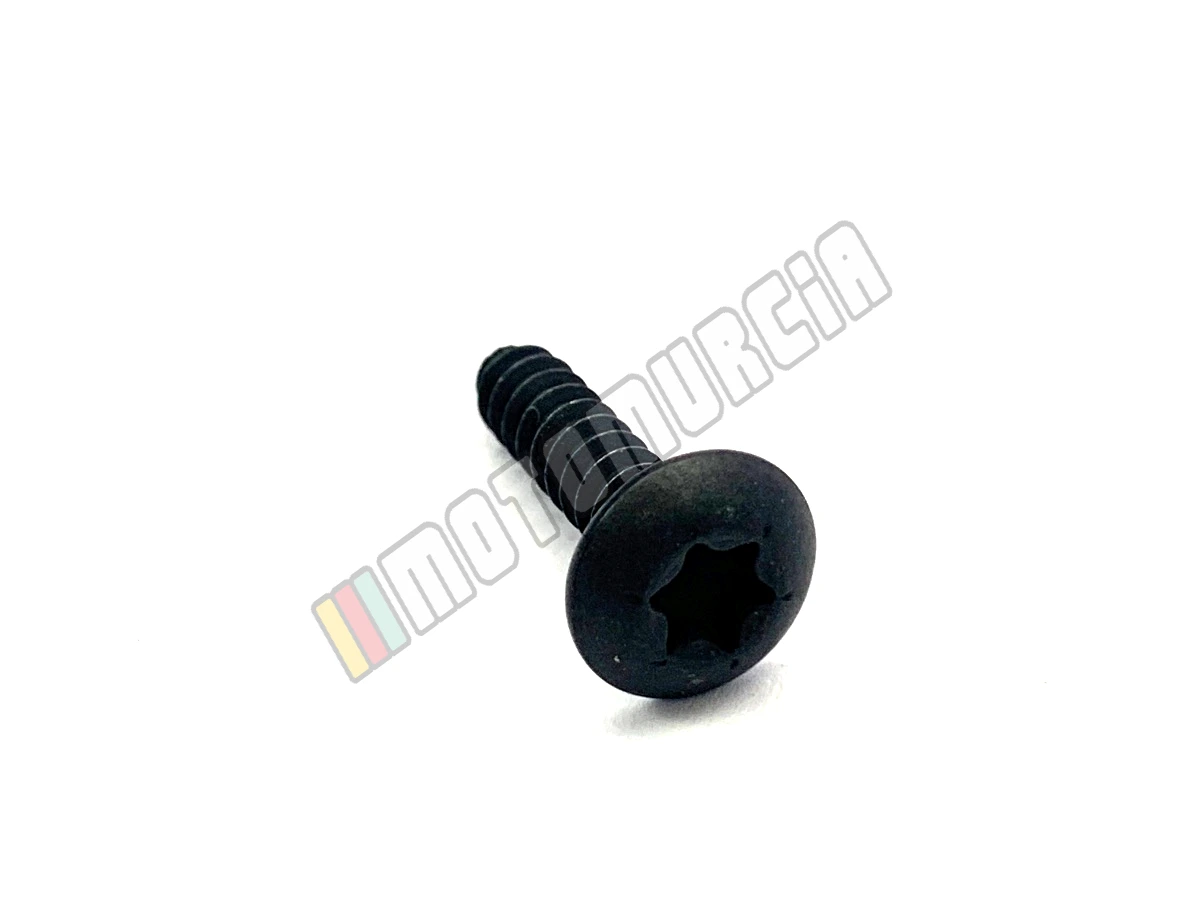

13 Screw Available CM178607
  • Sheet Metal Screw Piaggio Group · CM178607 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
14 Bag holder hook Available 575819
  • Hooks Piaggio Group · 575819 Available · Shipped in 3–5 working days
    € 17,99
15 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
16 Screw Available CM179201
  • Screw M6x22 Piaggio Group · CM179201 Available · Shipped in 3–5 working days
    € 0,99
17 Washer Available 641548
  • Washer Piaggio Group · 641548 Available · Shipped in 3–5 working days
    € 2,57
18 Glove compartment door Available 57717500G01
19 Square Available 252420
  • Bracket Piaggio Group · 252420 Available · Shipped in 3–5 working days
    € 4,94
20 Screw Available 268596
  • Screw Piaggio Group · 268596 · Quantity needed: 8 Available · Shipped in 3–5 working days
    € 0,99
21 Pawl Available 575607
  • Lever Piaggio Group · 575607 Available · Shipped in 3–5 working days
    € 3,28
22 Spring Available 1B003658
  • Spring Piaggio Group · 1B003658 Available · Shipped in 3–5 working days
    € 3,86
23 Door fixing bracket Available 257614
  • Bracket Piaggio Group · 257614 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,26
24 Counter flap Available 577468
  • Hatch Piaggio Group · 577468 Available · Shipped in 3–5 working days
    € 46,89
25 Screw Available 297498
  • Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 0,99
26 Lever Available 577861
  • Lever Piaggio Group · 577861 Available · Shipped in 3–5 working days
    € 6,59
27 4 - Spring Available 577399
  • Spring Piaggio Group · 577399 Available · Shipped in 3–5 working days
    € 8,55

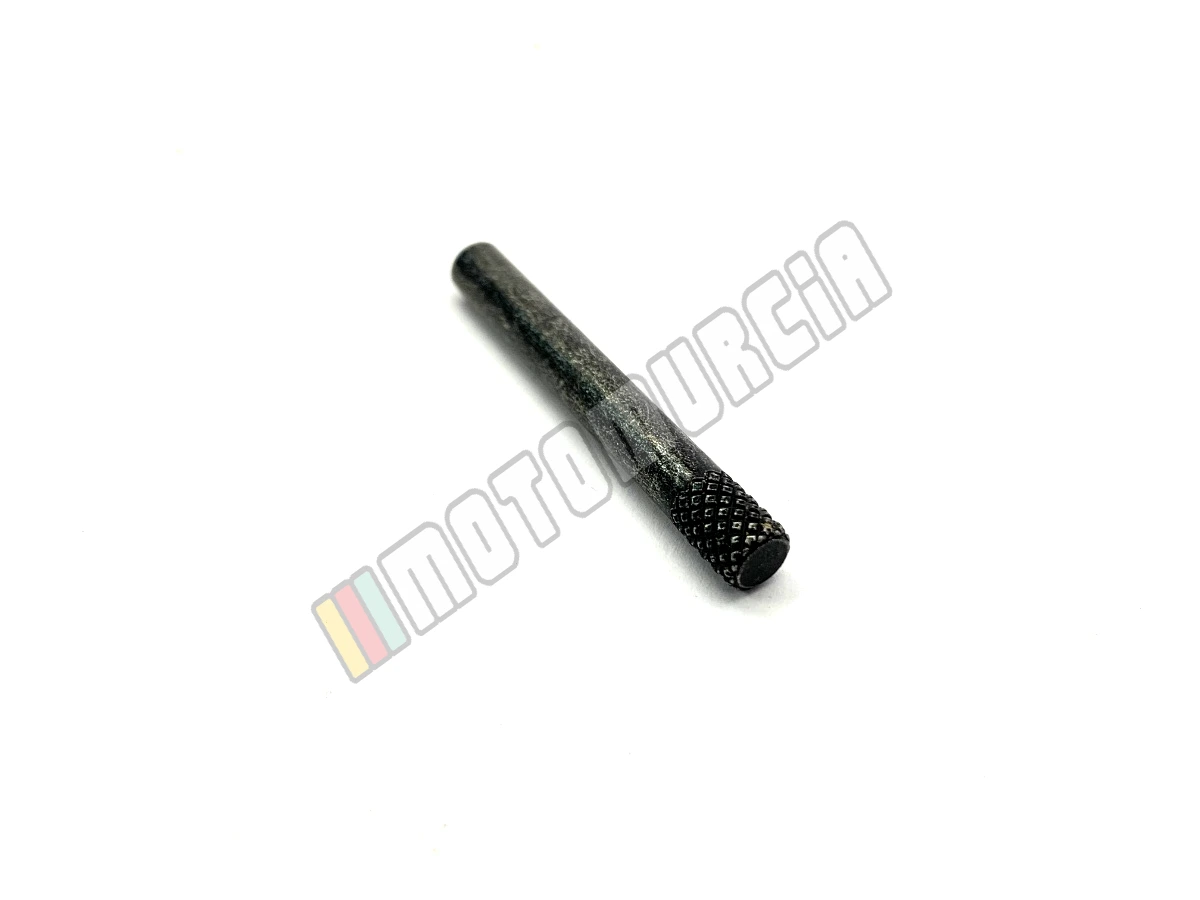

28 Pin Available 577400
  • Bolts Piaggio Group · 577400 Available · Shipped in 3–5 working days
    € 5,64
29 Rim Available 577447
  • Cover Piaggio Group · 577447 Available · Shipped in 3–5 working days
    € 13,60
30 Clip nuts Available CM017406
  • Sheet nut Piaggio Group · CM017406 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,22
31 Spring clamp Available 577594
  • Clip Piaggio Group · 577594 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,78
32 Screw (4.2 x 16) Available CM178601
  • Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
33 Screw Available 299972
  • Screw M4 Piaggio Group · 299972 Available · Shipped in 3–5 working days
    € 1,43
34 Lock lever Available 577453
  • Lever Piaggio Group · 577453 Available · Shipped in 3–5 working days
    € 5,23
35 Nut Available 577620
  • Standard nut Piaggio Group · 577620 Available · Shipped in 3–5 working days
    € 1,26
36 Gasket Available CM006311
  • Gasket length: 1,05m Piaggio Group · CM006311 Available · Shipped in 3–5 working days
    € 14,44
37 Sound proof panel Available 620693
  • Exhaust Padding Piaggio Group · 620693 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 20,06
38 Top box cover Available 1B001752
  • Cover Piaggio Group · 1B001752 Available · Shipped in 3–5 working days
    € 12,37
39 Plate Available 1B005869
  • 1B005869 Plate
    Bracket Piaggio Group · 1B006769 ↻ Replaces 1B005869, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 8,08
40 Screw Available CM179301
  • Screw M6x16 Piaggio Group · CM179301 Available · Shipped in 3–5 working days
    € 1,48

More drawings of this model
