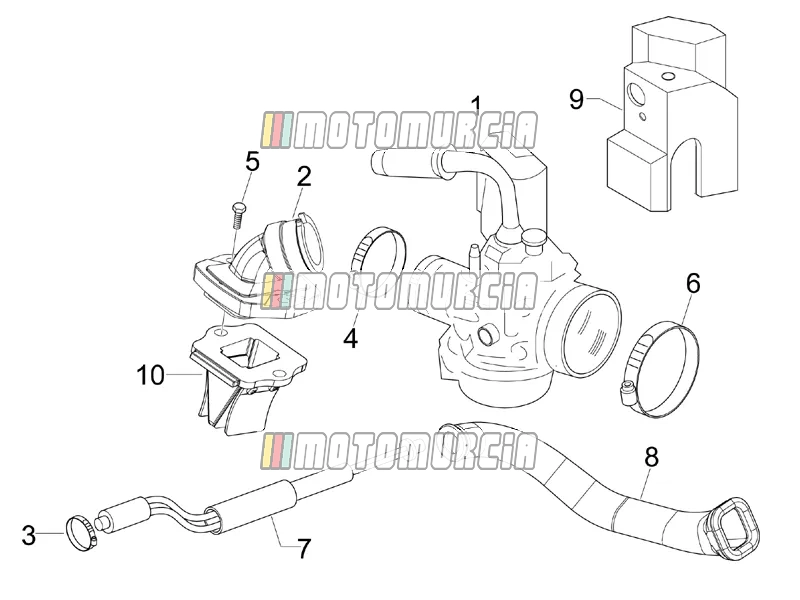

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 Carburettor Backorder 875416

•

  Carburettor PHVA 17,5 RD Piaggio Group · 875416 Backorder · Shipped in 2–4 weeks

  € 278,72

  Add to cart
•

  Carburettor PHVA 12 Q Piaggio Group · 875418 Available · Shipped in 3–5 working days

  € 224,37

  Add to cart
• 877078 Carburetor assembly PHVA 17.5 RD "Dellorto"
  No longer available

2 Intake Manifold Available 1A008824

•

  Intake manifold Piaggio Group · 1A008824 Available · Shipped in 3–5 working days

  € 15,10

  Add to cart

3 Clamp Available CM002901

• • Carburettor version (C364M)
  • Injection version (C361M)
  • Year of manufacture: 2012
  • Year of manufacture: 2013
  • Country: Canada
  • Country: United States of America


  Clamping Spring Piaggio Group · CM002901 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

4 Clamp 1A006280 No longer available

• 1A006280 Clamp
  No longer available

5 Screw (M6x22) Available 1A000352

• • Country: Taiwan


  Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,71

  Add to cart

6 Clamp (D=10 mm) Available CM002905

•

  Clamp Piaggio Group · CM002905 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

7 Resistor Module Available 82961R6

•

  Resistor Piaggio Group · 82961R6 Available · Shipped in 3–5 working days

  € 33,64

  Add to cart

8 Air duct Available 488129

•

  Hose Piaggio Group · 488129 Available · Shipped in 3–5 working days

  € 17,44

  Add to cart

9 Hood for carburettor Available 832186

•

  Bonnet Piaggio Group · 832186 Available · Shipped in 3–5 working days

  € 19,03

  Add to cart

10 Reed valve Available 82774R

•

  Reed valve Piaggio Group · 82774R Available · Shipped in 3–5 working days

  € 32,50

  Add to cart
