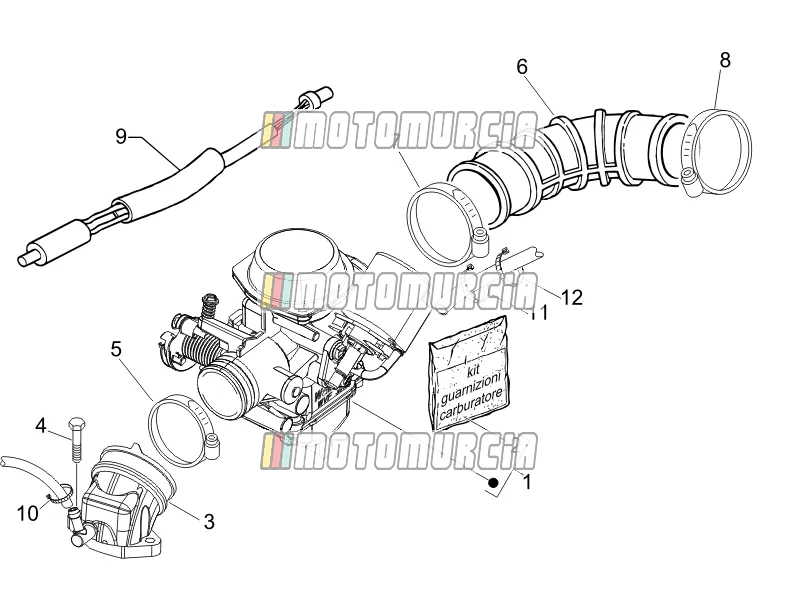

Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Carburettor, Assembly - Union Pipe

Products

1 Carburettor (USA) CM141911 No longer available

CM141911 Carburettor (USA)
No longer available

2 Gasket - float chamber Available 497038

Gasket for float chamber Piaggio Group · 497038 Available

€ 13,09

3 Intake Manifold Available 845946

Intake manifold Piaggio Group · 845946 Available

€ 27,81

4 Screw Available 018639

Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available

€ 2,77

6 Air bellow Available 845489

Fork Dust Cover Piaggio Group · 845489 Available

€ 31,44

7 Hose clamp Available 257134

Cable Ties length: 27,7cm Piaggio Group · 257134 Available

€ 0,99

8 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

9 Resistor Module Available 582619

Resistor Piaggio Group · 582619 Available

€ 27,76

10 Clamp Available CM002901

Clamping Spring Piaggio Group · CM002901 Available

€ 0,99

11 Clamp Available CM002917

Clamping Spring Piaggio Group · CM002917 Available

€ 15,78

12 Clamp Available CM001901

Clamp Piaggio Group · CM001901 Available

€ 2,04
