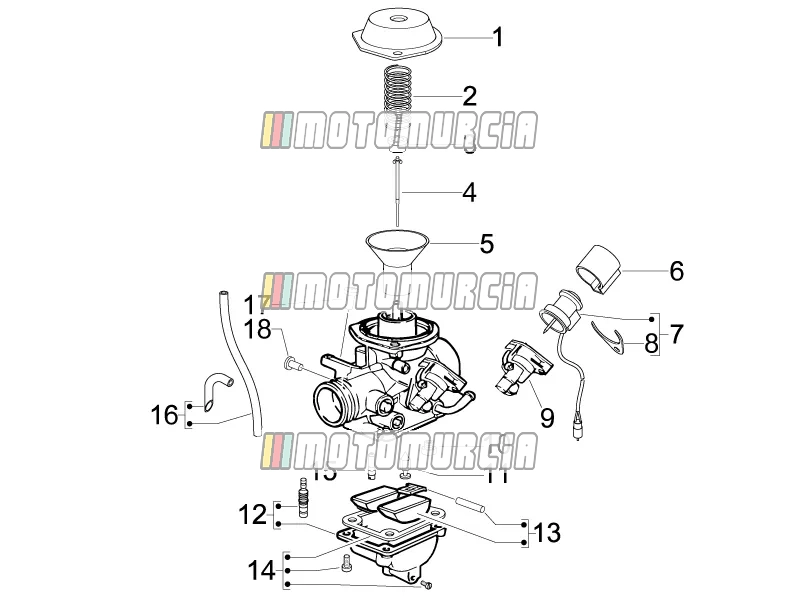

Exploded view — Carburetor's Components

Products

1 Gas valve cover Available 842514

•

  Lid Piaggio Group · 842514 Available

  € 49,63

  Add to cart

2 Spring Available CM140903

•

  Spring Piaggio Group · CM140903 Available

  € 16,70

  Add to cart

3 Cup Available 828822

•

  Needle Jet Holder Piaggio Group · 828822 Available

  € 5,07

  Add to cart

4 Conical pin Available CM140205

•

  Metering Needle NJHA Piaggio Group · CM140205 Available

  € 15,44

  Add to cart

5 Carburettor diaphragm Available CM140302

•

  Carburettor membrane Piaggio Group · CM140302 Available

  € 149,37

  Add to cart

6 Cap Available 828844

•

  Covering Cap Piaggio Group · 828844 Available

  € 17,47

  Add to cart

7 Starter plunger (Keihin) Available CM142904

•

  Choke elektrisch Piaggio Group · CM142904 Available

  € 173,04

  Add to cart

8 Plate Available 828843

•

  Locking Plate Piaggio Group · 828843 Available

  € 15,28

  Add to cart

9 Starter device Available 842530

•

  Starter Assembly Piaggio Group · 842530 Available

  € 62,79

  Add to cart

10 Main jet 80 Available CM129913

•

  Jet Piaggio Group · CM129913 Available

  € 16,14

  Add to cart

11 Petrol needle Available CM147102

•

  Float Needle Piaggio Group · CM147102 Available

  € 18,08

  Add to cart

12 Complete reservoir Available CM156709

•

  Float Chamber Piaggio Group · CM156709 Available

  € 99,67

  Add to cart

13 Carburetor, Float assy Available 842522

•

  Float Piaggio Group · 842522 Available

  € 81,24

  Add to cart

14 Gasket - float chamber Available 842523

•

  Float Chamber Keihin Piaggio Group · 842523 Available

  € 63,97

  Add to cart

15 Idle jet Available CM140101

•

  Jet Piaggio Group · CM140101 Available

  € 13,82

  Add to cart

16 Pipes kit Available 842521

•

  Accelerator Kit Piaggio Group · 842521 Available

  € 39,05

  Add to cart

18 Adj.min.eng.speed air screw Available CM149401

•

  Adjusting Screw Piaggio Group · CM149401 Available

  € 17,33

  Add to cart
