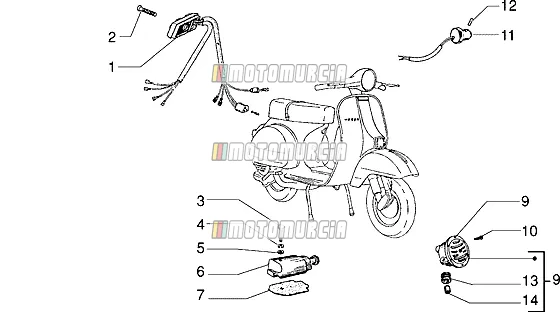

Exploded view — Electrical Devices

‹ Back to model
Vespa Vespa PX 200 E 1983 Vespa Vespa PX 200 E 1983
Electrical Devices

Products

1 Light switch Available 580936
2 Screw Available 018503
  • Threaded bolts Piaggio Group · 018503 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
3 Screw Available 031033
  • Screw Piaggio Group · 031033 Available · Shipped in 3–5 working days
    € 1,73
4 Washer Available 003054
  • Washer Piaggio Group · 003054 Available · Shipped in 3–5 working days
    € 1,77
5 Washer (spring) Available 016404
  • Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 Available · Shipped in 3–5 working days
    € 0,99
6 Brake light switch Available 181881
  • Stop light switch Piaggio Group · 181881 Available · Shipped in 3–5 working days
    € 13,07
7 Gasket Available 070144
  • Rubber Seal Piaggio Group · 070144 Available · Shipped in 3–5 working days
    € 2,95
9 Horn Available 264094
  • 264094 Horn
    Horn Vespa PX/PK S Piaggio Group · 58144R ↻ Replaces 264094, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 41,12
10 Screw Available 015727
  • Sheet Metal Screw Piaggio Group · 015727 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
11 Switch Available 231024
12 Screw Available 018515
  • Grub Screw Piaggio Group · 018515 Available · Shipped in 3–5 working days
    € 0,99
13 Pad Available 401605
  • Rubber stop Piaggio Group · 401605 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
14 Spacer Available 219605
  • Spacer Piaggio Group · 219605 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,15
