Exploded view Carburettor, Assembly - Union Pipe — Vespa VXL 125 4T 3V (APAC) 2021

‹ Back to model

Vespa VXL 125 4T 3V (APAC) 2021

Products

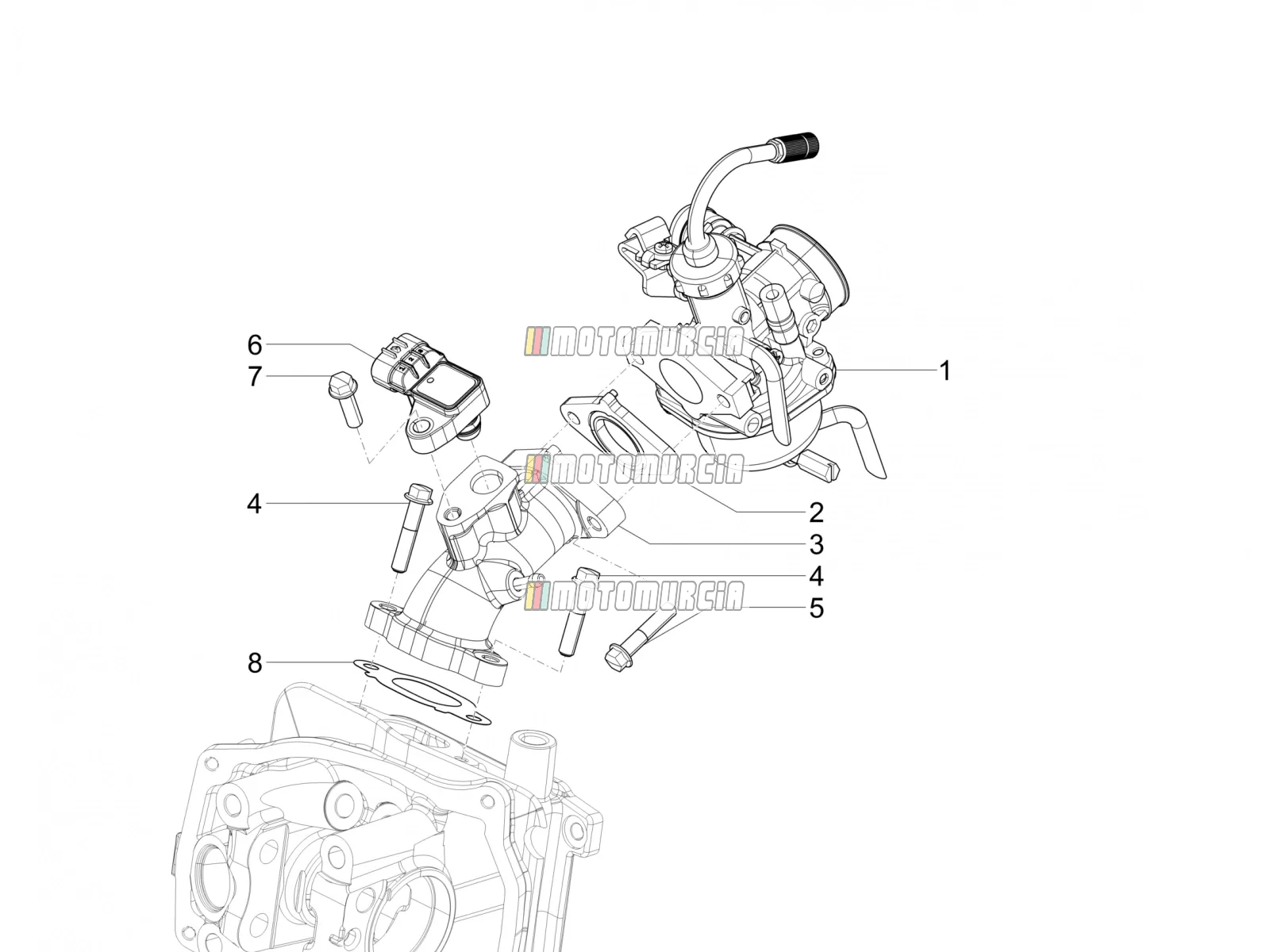

1 Carburetor assembly PB18/20 Backorder CM283001

Carburettor Piaggio Group · CM283001 Backorder · Shipped in 2–4 weeks

€ 325,95

2 Intake fittings support Backorder B015543

Flange for intake manifold Piaggio Group · B015543 Backorder · Shipped in 2–4 weeks

€ 10,44

3 Induction joint with U.P. Backorder 1A006346

Intake manifold Piaggio Group · 1A006346 Backorder · Shipped in 2–4 weeks

€ 19,03

4 Screw Available 018639

- 125 cc version
- Country: Taiwan
Flanged Screw M6x20 Piaggio Group · 018639 Available · Shipped in 3–5 working days

€ 2,77

5 Screw w/ flange M6x30 Available B018853

Flanged Screw M6x30 Piaggio Group · B018853 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 0,99

6 Air pressure sensor 58290R No longer available

58290R Air pressure sensor
No longer available

8 Intake manifold Gasket Available B018442

Intake Manifold Gasket Piaggio Group · B018442 Available · Shipped in 3–5 working days

€ 1,39
