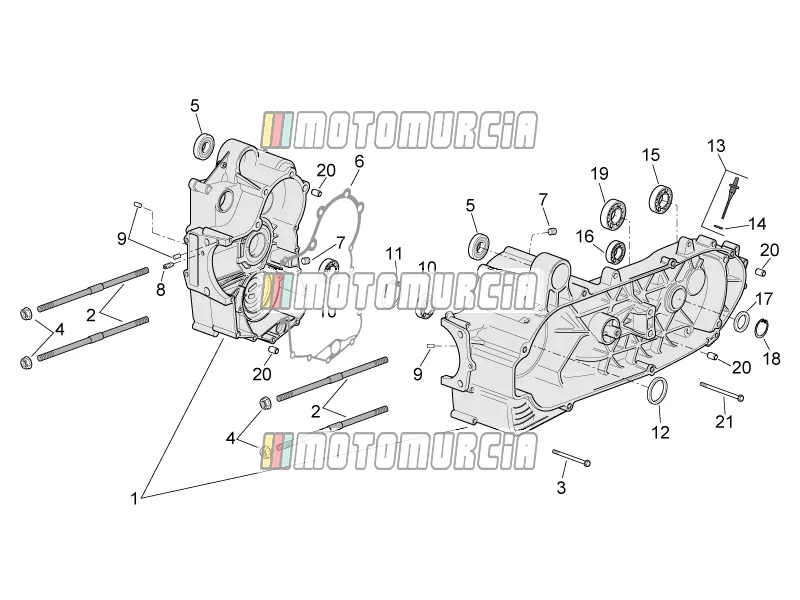

Exploded view — Crankcase

‹ Back to model
Aprilia Atlantic 500 2001 Aprilia Atlantic 500 2001
Crankcase

Products

1 Crankcase assy AP8560191 No longer available
  • AP8560191 Crankcase assy
    • Up to engine (M271M-37025) or (M272M-2158)
    • Up to engine (M322M-7832) or (M323M-1472)
    No longer available
  • AP8560192 Crankcase assy
    • Up to engine (M271M-37025) or (M272M-2158)
    • Up to engine (M322M-7832) or (M323M-1472)
    No longer available
    • Country: Australia
    • Country: Europe
    • Country: United States of America
    Crankshaft Housing Cat. 1 Piaggio Group · CM1568025001 Available · Shipped in 3–5 working days
    € 2.310,91
  • AP8560190 Crankcase assy
    • Up to engine (M271M-37025) or (M272M-2158)
    • Up to engine (M322M-7832) or (M323M-1472)
    No longer available
  • CM1568025003 Crankcase assy cat3
    No longer available
    • Country: Australia
    • Country: Europe
    • Country: United States of America
    Crankshaft Housing Cat. 2 Piaggio Group · CM1568025002 Backorder · Shipped in 2–4 weeks
    € 556,53
  • AP8560189 Crankcase assy
    • Up to engine (M271M-37025) or (M272M-2158)
    • Up to engine (M322M-7832) or (M323M-1472)
    No longer available
  • CM1561025004 Crankcase assy cat4
    No longer available
2 Stud bolt Available 1A003631R
  • Stud Screw Piaggio Group · 1A003631R · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 14,57
3 Screw Available 828909
  • Flanged Screw M6x65 Piaggio Group · 828909 · Quantity needed: 12 Available · Shipped in 3–5 working days
    € 0,99
4 Nut Available 833520
  • Standard nut Piaggio Group · 833520 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
5 Bearing Available 82656R
6 Gasket - crankcase Available 828114
7 Cover M12x1,5 Available B015433
  • Screw Plug M12x1.5 Piaggio Group · B015433 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 8,86
8 Nozzle Available 484034
  • Jet Piaggio Group · 484034 Available · Shipped in 3–5 working days
    € 8,58
9 Dowel pin Available B015957
  • Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,26
10 Bearing Available 82668R
11 Seeger Available 006647
    • Country: Indonesia
    Circlip Ø 47,00 mm Piaggio Group · 006647 Available · Shipped in 3–5 working days
    € 1,29
12 Oil seal Available 873932
  • Shaft Seal 35x47x7 mm Piaggio Group · 873932 Available · Shipped in 3–5 working days
    € 21,05
13 Complete oil level dipstick Available 832130
  • Oil dipstick Piaggio Group · 832130 Available · Shipped in 3–5 working days
    € 6,34
14 Gasket ring Available 827085
15 Bearing Available 1A024412R
16 Bearing Available 83018R
17 Oil seal 25x40x7 Available 873931
  • Shaft Seal Piaggio Group · 873931 Available · Shipped in 3–5 working days
    € 17,47
18 Seeger Available B015959
19 Bearing Available 825233
20 Dowel pin Backorder B015956
  • Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks
    € 1,32
21 Screw Available 828922
  • Flanged Screw M6x75 Piaggio Group · 828922 Available · Shipped in 3–5 working days
    € 1,82

More drawings of this model

View all →
