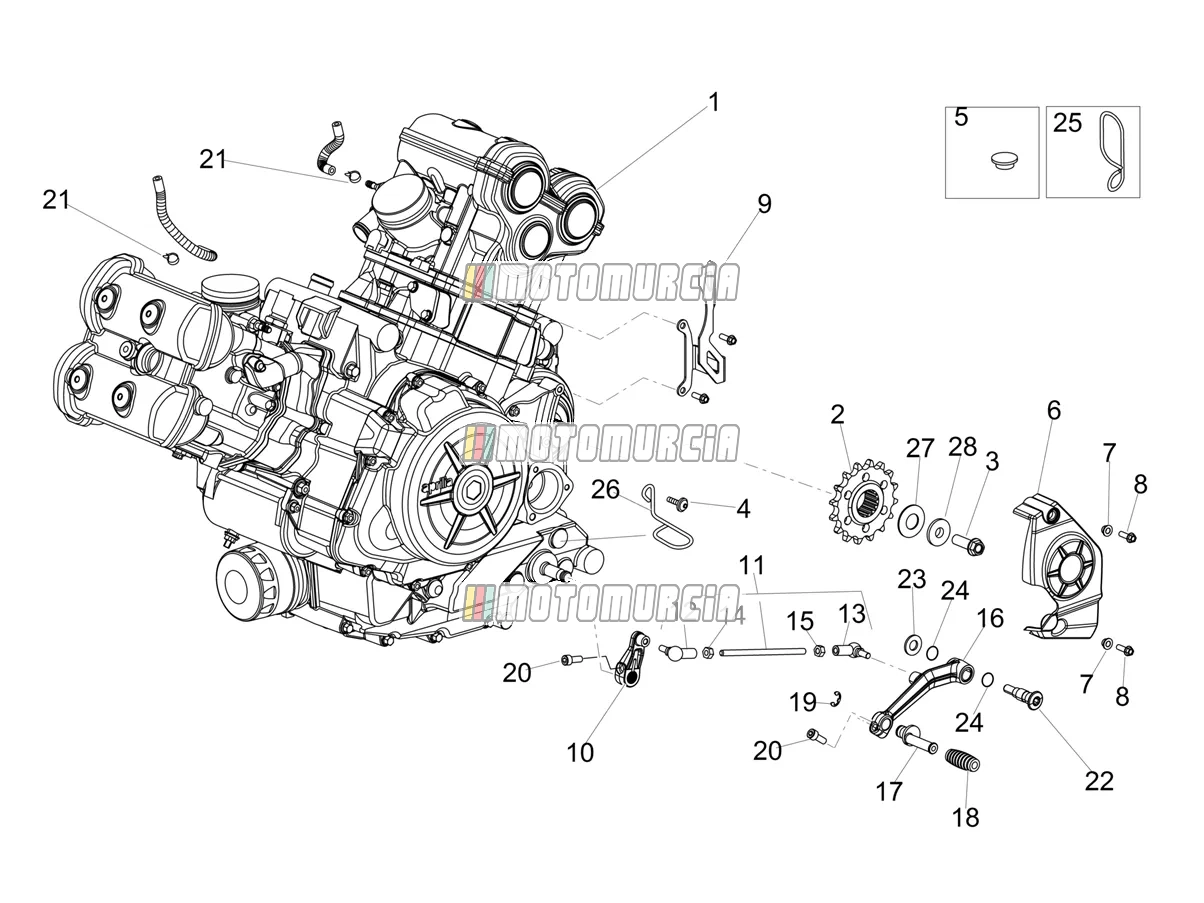

Exploded view — Engine-completing Part-lever
‹ Back to model
Aprilia Dorsoduro 900 ABS 2017
Products
1 Engine 900
-
CM1610025 Engine 900No longer available
2 Pinion Z=15 Available
-
Rear Sprocket Number of Teeth: 15 Piaggio Group · 2B004212 Available · Shipped in 3–5 working days€ 46,67
Alternatives from other brands
Sprocket Front 15T - 525 Afam · 3760015 Available · Shipped in 1–2 working days€ 34,85FRONT 15T, 525 Afam · 37600NR15 Available · Shipped in 1–2 working days€ 36,81Front Sprocket 525 16T Esjot · 502903216 Available · Shipped in 3–5 working days€ 34,97
3 Screw w/ flange M10x25 Available
-
Screw Piaggio Group · B043047 Available · Shipped in 3–5 working days€ 4,03
4 Screw (M8x12) Available
-
- Country: Canada
- Country: United States of America
Screw M8x12 Piaggio Group · AP8152055 Available · Shipped in 3–5 working days€ 14,91
5 Cover Available
-
- 49 States approval
- Municipal police
- Strada version
Plug Piaggio Group · AP8102600 Available · Shipped in 3–5 working days€ 0,99
6 Sprocket cover Available
-
Front Sprocket Cover Piaggio Group · 856069 Available · Shipped in 3–5 working days€ 16,46
7 Screw (6x12) Available
-
- Colour: Royal Hashemite Court
- Country: Canada
- Country: Germany
- Country: United States of America
Flanged Screw M6x12 Piaggio Group · AP8152277 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
8 T bush Available
-
Sleeve Piaggio Group · AP8121811 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
9 Plate Backorder
-
Bracket Piaggio Group · 856079 Backorder · Shipped in 2–4 weeks€ 17,12
10 Gear lever Available
-
- Year of manufacture: MY 2021
- Year of manufacture: MY 2022
Gear Lever Piaggio Group · 852480 Available · Shipped in 3–5 working days€ 63,63
11 Gearbox linkage rod assy Available
-
Linkage Rod Piaggio Group · 859976 Available · Shipped in 3–5 working days€ 63,97
12 RH ball joint M6 Available
-
Ball joint right, M6 Piaggio Group · AP8210007 Available · Shipped in 3–5 working days€ 17,93
13 Left ball joint M6 Available
-
Universal Joint left Piaggio Group · AP8110053 Available · Shipped in 3–5 working days€ 17,93
14 Nut Available
-
Standard nut Piaggio Group · AP8152138 Available · Shipped in 3–5 working days€ 2,18
15 Nut Available
-
- ABS version
- Engine with carburettor
- Standard version
- Year of manufacture: 2002
- Year of manufacture: 2003
- Country: Japan
- Country: United States of America
Standard nut Piaggio Group · AP8150026 Available · Shipped in 3–5 working days€ 1,25
16 Gear change pedal Available
-
Gear Lever Piaggio Group · 860402 Available · Shipped in 3–5 working days€ 86,95
17 Lever pin Available
-
Bolts Piaggio Group · AP8121221 Available · Shipped in 3–5 working days€ 25,29
18 Lever rubber Available
-
- Standard rider footrests
Pedal Rubber Piaggio Group · AP8120912 Available · Shipped in 3–5 working days€ 4,51
19 Seeger Available
-
Circlip Ø 9,00 mm Piaggio Group · AP8150462 Available · Shipped in 3–5 working days€ 1,61
20 Screw Available
-
- Country: Canada
- Country: China
- Country: United States of America
Screw M6x16 Piaggio Group · AP8150137 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
21 Hose clamp D 11,9 Available
-
- Country: Canada
- Country: United States of America
Clamp Ø 11,90 mm Piaggio Group · AP8201358 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
22 Screw (lever / brake)
-
884033 Screw (lever / brake)
- Standard rider footrests
23 Washer Available
-
- Country: United States of America
Shim 10,5x21x2 mm Piaggio Group · AP8150020 Available · Shipped in 3–5 working days€ 2,18
24 O-Ring (11,11x1,78) Available
-
- ABS version
- Standard rider footrests
- Standard version
O-Ring 11,11x1,78 mm Piaggio Group · AP8144007 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,61
25 Cable-guide Available
-
Cable Guide Piaggio Group · AP8121889 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,83
26 Cable-guide Available
-
- Country: Canada
- Country: United States of America
Cable Guide Piaggio Group · AP8221114 Available · Shipped in 3–5 working days€ 19,58
27 Belleville spring Available
-
Shim Piaggio Group · 2B002193 Available · Shipped in 3–5 working days€ 1,52
28 T bushing Available
-
Sleeve Piaggio Group · 2B002191 Available · Shipped in 3–5 working days€ 5,09
