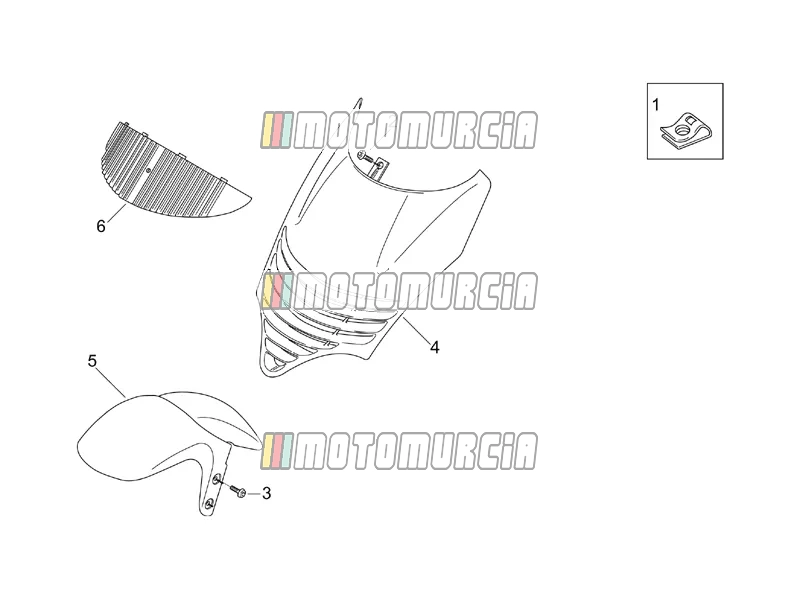

Exploded view — Front Body - Front Fairing

‹ Back to model

Aprilia Leonardo 125-150 1996

Products

1 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 Available

€ 2,47

2 Screw Available AP8152267

Screw M5x12 Piaggio Group · AP8152267 Available

€ 2,54

3 Screw Available AP8152298

Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 4 Available

€ 3,80

4 Front fairing, green AP8138981 No longer available

AP8138981 Front fairing, green
No longer available
AP8138607 Front fairing, s. blue
No longer available
AP8139211 Front fairing, miami cyan
No longer available
AP8138618 Front fairing, grey
No longer available
AP8139199 Front fairing, brio yellow
No longer available
AP8138844 Front fairing, l. red
No longer available
AP8139205 Front fairing, mallow violet
No longer available

5 Front mudguard AP8126629 No longer available

AP8126629 Front mudguard
No longer available
AP8126628 Front mudguard, malllow violet
No longer available
AP8126576 Front mudguard, l.red
No longer available
AP8126531 Front mudguard, grey
No longer available
AP8126627 Front mudguard, brio yellow
No longer available
AP8126530 Front mudguard
No longer available
AP8126602 Front mudguard, chr. green
No longer available

6 Upper shield grille, black AP8138407 No longer available

AP8138407 Upper shield grille, black
No longer available

More drawings of this model

View all →

Carburettor I

Carburettor Ii

Carburettor Iii

Central Semi-crankcase I

Central Semi-crankcase Ii

Connecting Rod

Crankcase

Crankshaft - Valves

Cylinder

Cylinder Head

Engine

Exhaust Unit
