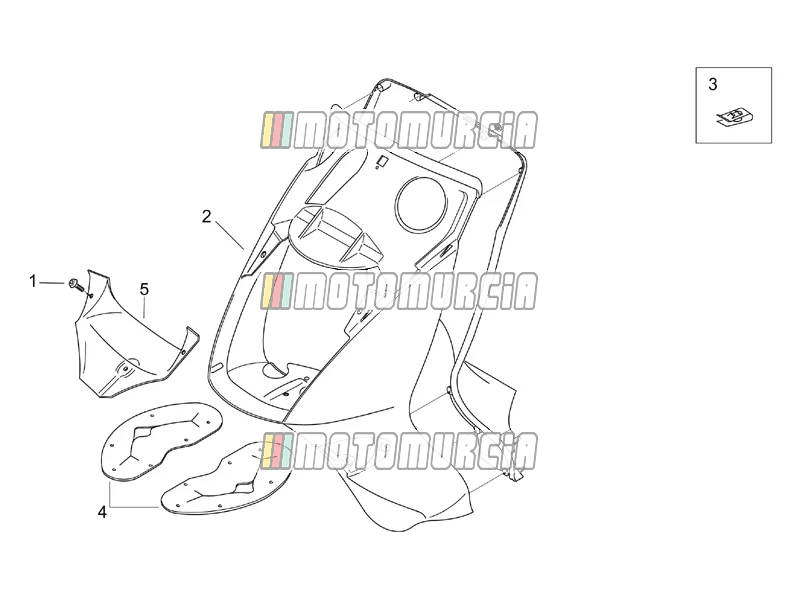

Exploded view — Front Body - Front Shield

‹ Back to model

Aprilia Leonardo 125-150 1996

Products

1 Screw Available 2B014101

Screw Piaggio Group · 2B014101 Available · Shipped in 3–5 working days

€ 3,78

2 Front shield, chr.green AP8138982 No longer available

AP8138982 Front shield, chr.green
- Year of manufacture: 1997
No longer available
AP8139212 Front shield, miami cyan
- Colour: Miami Cyan
- Year of manufacture: 1998
No longer available
AP8138932 Front shield, blue
- Year of manufacture: 1997
- Year of manufacture: 1998
No longer available
AP8138604 Front shield, s. blue
- Year of manufacture: 1996
No longer available
AP8138934 Front shield, red
- Year of manufacture: 1997
No longer available
AP8138615 Front shield, grey
- Year of manufacture: 1996
No longer available
AP8138933 Front shield, grey
- Year of manufacture: 1997
- Year of manufacture: 1998
No longer available
AP8139821 Front shield, brio yellow
- Colour: Brio Yellow '99
- Year of manufacture: 1999
No longer available
AP8138845 Front shield, l. red
- Year of manufacture: 1996
No longer available
AP8139206 Front shield, mallow violet
- Colour: Royal Violet
- Year of manufacture: 1998
No longer available

3 Clip nuts Available AP8201763

- ETV Capo Nord RALLY/RAID version
Sheet nut Piaggio Group · AP8201763 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 2,27

4 Shield air protection AP8217034 No longer available

AP8217034 Shield air protection Quantity needed: 2
No longer available

5 Air duct, black AP8139325 No longer available

AP8139325 Air duct, black
No longer available
AP8138475 Air duct, black
- Year of manufacture: 1996
No longer available
AP8138937 Air duct, black
- Leonardo 125
- Year of manufacture: 1997
No longer available
