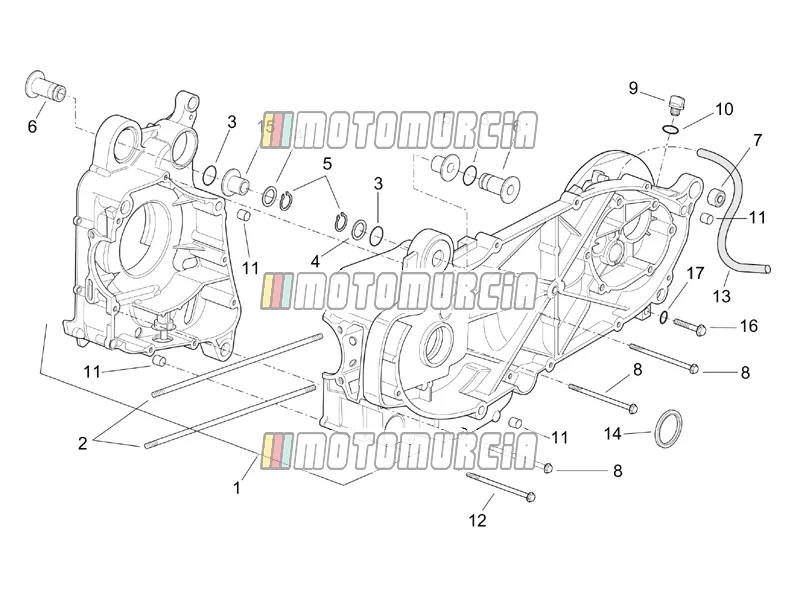

Exploded view — Crank-case

Products

1 Crankcase assy AP8122469 No longer available

• AP8122469 Crankcase assy
  No longer available

2 Stud bolt AP8122424 No longer available

• AP8122424 Stud bolt Quantity needed: 4
  No longer available

3 O-Ring Available AP8144270

•

  O-Ring Piaggio Group · AP8144270 · Quantity needed: 4 Available

  € 5,60

  Add to cart

4 Washer AP8122647 No longer available

• AP8122647 Washer Quantity needed: 2
  No longer available

5 Circlip AP8122439 No longer available

• AP8122439 Circlip Quantity needed: 2
  No longer available

6 Spacer AP8122454 No longer available

• AP8122454 Spacer Quantity needed: 2
  No longer available

7 Bush AP8122430 No longer available

• AP8122430 Bush
  No longer available

8 Screw AP8122413 No longer available

• AP8122413 Screw Quantity needed: 5
  No longer available

9 Oil plug AP8122585 No longer available

• AP8122585 Oil plug
  No longer available

10 O-Ring AP8122545 No longer available

• AP8122545 O-Ring
  No longer available

11 Pin AP8122558 No longer available

• AP8122558 Pin Quantity needed: 4
  No longer available

12 Screw AP8122419 No longer available

• AP8122419 Screw Quantity needed: 4
  No longer available

13 Pipe AP8122511 No longer available

• AP8122511 Pipe
  No longer available

14 Oil seal AP8122535 No longer available

• AP8122535 Oil seal
  No longer available

15 Maintenance AP8122507 No longer available

• AP8122507 Maintenance Quantity needed: 2
  No longer available

16 Screw AP8122416 No longer available

• AP8122416 Screw
  No longer available

17 Washer AP8122486 No longer available

• AP8122486 Washer
  No longer available
