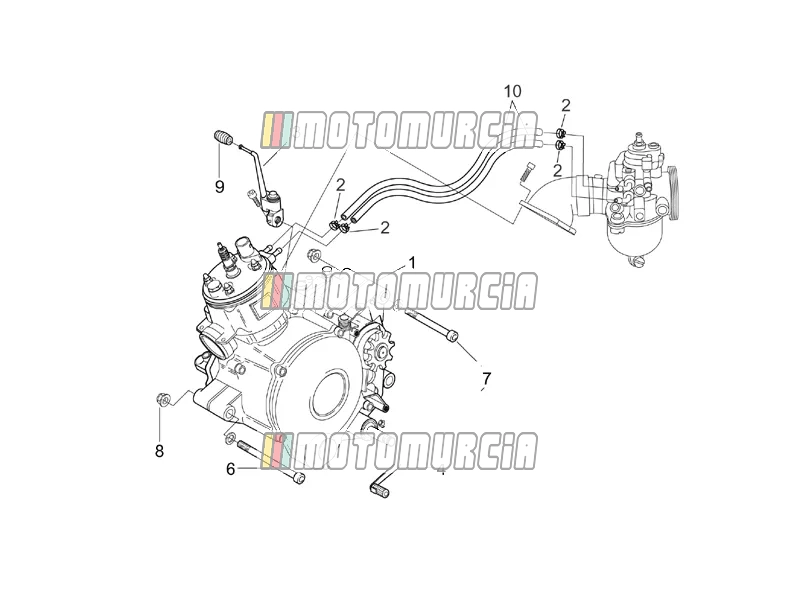

Exploded view — Engine

‹ Back to model

Aprilia MX 50 2004

Products

1 Engine AM6-EU-2 AP8276018 No longer available

AP8276018 Engine AM6-EU-2
- Limited version 45 km/h
No longer available
AP8222807 Engine AM6-EU-2
- Full power version
No longer available

2 Clamp Available AP8206884

- Year of manufacture: 1999
- Year of manufacture: 2000
Hose Clamp Piaggio Group · AP8206884 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 12,12

3 Kick starter lever AP8222503 No longer available

AP8222503 Kick starter lever
No longer available

4 Gear lever Backorder AP8235162

Gear Lever Piaggio Group · AP8235162 Backorder · Shipped in 2–4 weeks

€ 134,30

5 Screw Available AP8152280

Flanged Screw M6x25 Piaggio Group · AP8152280 Available · Shipped in 3–5 working days

€ 2,77

6 Screw Available AP8150093

Screw M8x120 Piaggio Group · AP8150093 Available · Shipped in 3–5 working days

€ 14,90

7 Screw Backorder AP8150338

Screw M12x108 Piaggio Group · AP8150338 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 15,29

8 Nut Available AP8152300

- Colour: Tuscany Tibet 2003
Standard nut M8 Piaggio Group · AP8152300 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 2,35

9 Lever rubber Available AP8120912

- Standard rider footrests
Pedal Rubber Piaggio Group · AP8120912 Available · Shipped in 3–5 working days

€ 4,51

10 Pipe AP8206977 No longer available

AP8206977 Pipe Quantity needed: 2
No longer available
