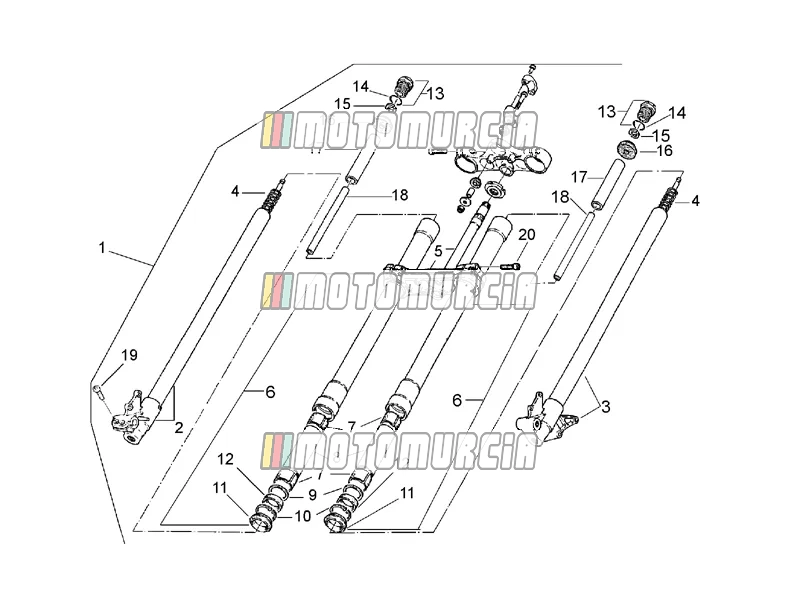

Exploded view — Front Fork

Products

1 Front fork AP8123729 No longer available

• AP8123729 Front fork
  No longer available
• AP8123959 Front fork
  No longer available

2 Hub+RH fork leg AP8123714 No longer available

• AP8123714 Hub+RH fork leg
  No longer available

3 Hub+LH fork leg AP8123715 No longer available

• AP8123715 Hub+LH fork leg
  No longer available

4 Spring D4,8x398 AP8123606 No longer available

• AP8123606 Spring D4,8x398 Quantity needed: 2
  No longer available

5 Stem base 185/25/54 AP8123611 No longer available

• AP8123611 Stem base 185/25/54
  No longer available

6 Sleeve cpl., silver AP8123786 No longer available

• AP8123786 Sleeve cpl., silver Quantity needed: 2
  No longer available

7 Bush AP8123689 No longer available

• AP8123689 Bush Quantity needed: 4
  No longer available

8 Spacer AP8123717 No longer available

• AP8123717 Spacer Quantity needed: 2
  No longer available

9 Cup (Marzocchi) 599504 No longer available

• 599504 Cup (Marzocchi) Quantity needed: 2
  No longer available

10 Stop ring AP8123199 No longer available

• AP8123199 Stop ring Quantity needed: 2
  No longer available

11 Fork dust seal (Marzocchi) Available 599502

•

  Dust guard Piaggio Group · 599502 · Quantity needed: 2 Available

  € 26,34

  Add to cart

12 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 · Quantity needed: 2 Available

  € 30,29

  Add to cart

13 Sleeve plug Backorder AP8123348

•

  Screw Plug Piaggio Group · AP8123348 · Quantity needed: 2 Backorder

  € 82,53

  Add to cart

14 O-Ring Available AP8123346

•

  O-Ring Piaggio Group · AP8123346 · Quantity needed: 2 Available

  € 4,40

  Add to cart

15 Half ring AP8123441 No longer available

• AP8123441 Half ring Quantity needed: 2
  No longer available

16 Ring spring Available AP8123357

•

  Spacer Ring Piaggio Group · AP8123357 · Quantity needed: 2 Available

  € 14,35

  Add to cart

17 Preload tube 31x2,5x215 AP8123607 No longer available

• AP8123607 Preload tube 31x2,5x215 Quantity needed: 2
  No longer available

18 Spring guide tube AP8123608 No longer available

• AP8123608 Spring guide tube Quantity needed: 2
  No longer available

19 Screw Available AP8123920

•

  Screw Piaggio Group · AP8123920 · Quantity needed: 2 Available

  € 2,49

  Add to cart

20 Screw M8x30 AP8123609 No longer available

• AP8123609 Screw M8x30 Quantity needed: 2
  No longer available
