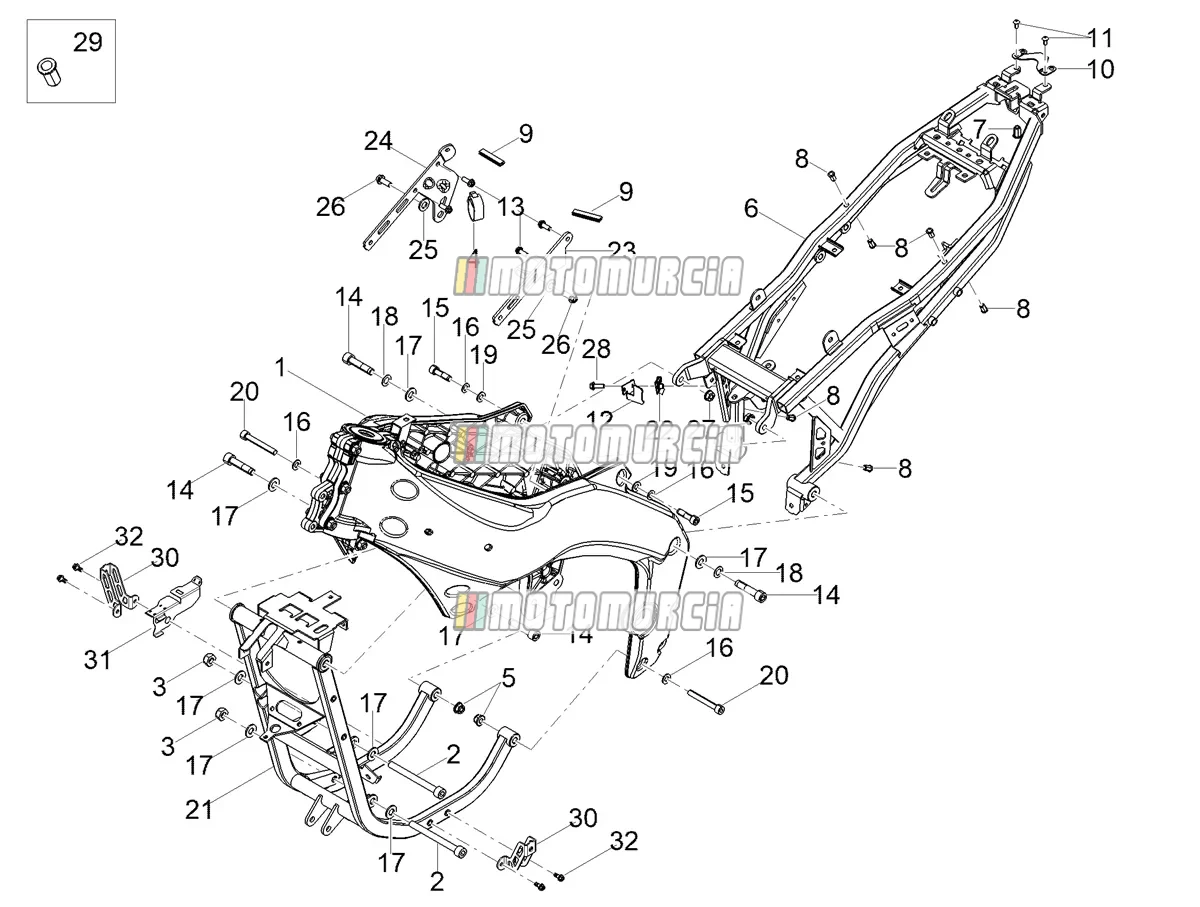

Exploded view — Frame/bodywork

‹ Back to model
Aprilia RS 125 E5+ ABS 2026 Aprilia RS 125 E5+ ABS 2026
Frame/bodywork

Products

1 * MAIN FRAME Backorder 2B010055000XHH
  • * MAIN FRAME Piaggio Group · 2B010055000XHH Backorder · Shipped in 2–4 weeks
    € 1.538,64
2 Screw Available 00H03000272
  • Allen screw M10 Piaggio Group · 00H03000272 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,80
3 Nut Available 002440
  • Standard nut M10 Piaggio Group · 002440 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,11
4 Cable-guide Available AP8120582
  • Cable Guide Piaggio Group · AP8120582 Available · Shipped in 3–5 working days
    € 7,14
5 Nut Available AP8152300
  • Standard nut M8 Piaggio Group · AP8152300 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,35
6 REGGISELLA Backorder 1B012462
  • REGGISELLA Piaggio Group · 1B012462 Backorder · Shipped in 2–4 weeks
    € 312,41
7 Hex threaded insert Available AP8102902
  • Sleeve Piaggio Group · AP8102902 Available · Shipped in 3–5 working days
    € 2,18
8 Threaded rivet Available AP8201755
  • Rivet plastic Piaggio Group · AP8201755 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 7,14
9 Gasket Available AP8144707
  • Gasket Piaggio Group · AP8144707 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 11,76
10 Headlight support clamp Available 858903
  • Bracket Piaggio Group · 858903 Available · Shipped in 3–5 working days
    € 25,06
11 Screw (M5x10) Available AP8150538
  • Screw M5x10 Piaggio Group · AP8150538 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,35
12 Relay support bracket Backorder 2B007945
  • Bracket Piaggio Group · 2B007945 Backorder · Shipped in 2–4 weeks
    € 3,96
13 Screw w/ flange M6x16 Available 2B002418
  • Flanged Screw M6x16 Piaggio Group · 2B002418 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 4,26
14 Precoated SHC screw M10X45 Available 2B005197
  • Screw M10x45 Piaggio Group · 2B005197 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,00
15 Pre-coated M8x30 SHC screw Backorder 2B005999
  • Screw M8x30 Piaggio Group · 2B005999 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks
    € 5,29
16 Washer Available AP8150017
  • Shim 8,4x16x1,6 mm Piaggio Group · AP8150017 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,18
17 Washer Available AP8150020
  • Shim 10,5x21x2 mm Piaggio Group · AP8150020 · Quantity needed: 8 Available · Shipped in 3–5 working days
    € 2,18
18 Washer Available AP8150292
  • Snap Ring Piaggio Group · AP8150292 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
19 Washer (spring) Available AP8150376
  • Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,04
20 Screw Available 478761
  • Screw Piaggio Group · 478761 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,75
21 Front frame Available 898365
  • Frame Piaggio Group · 898365 Available · Shipped in 3–5 working days
    € 304,99
22 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
23 LH engine supoprt Available 2B008091
  • Engine Bracket left Piaggio Group · 2B008091 Available · Shipped in 3–5 working days
    € 25,43
24 RH engine support Available 898908
  • Engine Bracket right Piaggio Group · 898908 Available · Shipped in 3–5 working days
    € 24,70
25 Washer Available AP8150020
  • Shim 10,5x21x2 mm Piaggio Group · AP8150020 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
26 Hex screw M10X16 (M10x16) Backorder 2B006418
  • Hexagon Screw M10x16 Piaggio Group · 2B006418 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks
    € 2,00
27 Nut Available 2B004511
  • Standard nut Piaggio Group · 2B004511 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
28 Screw with flange Available AP8152278
  • Flanged Screw M6x16 Piaggio Group · AP8152278 Available · Shipped in 3–5 working days
    € 2,35
29 Threaded rivet M6 Available AP8102544
  • Rivet plastic Piaggio Group · AP8102544 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 4,51
30 Fairing support Available 899071
  • Bracket for fairing Piaggio Group · 899071 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 17,54
31 Bracket Backorder 2B014713
  • Bracket Piaggio Group · 2B014713 Backorder · Shipped in 2–4 weeks
    € 4,23
32 Screw Available AP8152272
  • Flanged Screw M5x12 Piaggio Group · AP8152272 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,18
