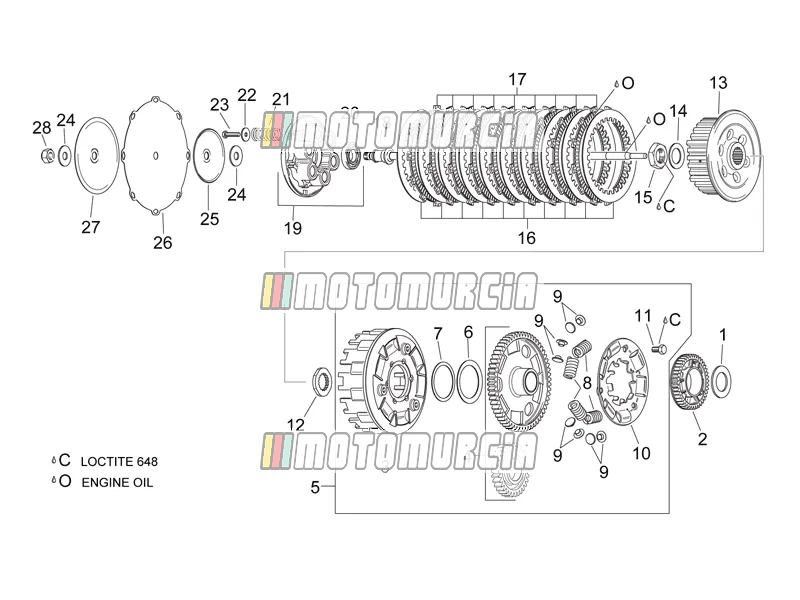

Exploded view — Clutch

Products

1 Washer Available AP0627260

•

  Shim 30,2x50 mm Piaggio Group · AP0627260 Available

  € 18,98

  Add to cart

2 Oil pump gear z=42 Backorder AP0634470

•

  Oil Pump Gear Number of Teeth: 42 Piaggio Group · AP0634470 Backorder

  € 106,52

  Add to cart

3 Clutch drum AP0259530 No longer available

• AP0259530 Clutch drum
  No longer available

4 Primary drive gear AP0295780 No longer available

• AP0295780 Primary drive gear
  No longer available

5 Primary transm. AP0295790 No longer available

• AP0295790 Primary transm.
  No longer available

6 Spring washer 68x52x1,2 AP0239390 No longer available

• AP0239390 Spring washer 68x52x1,2
  No longer available

7 Washer AP0627140 No longer available

• AP0627140 Washer
  No longer available

8 Spring AP0239370 No longer available

• AP0239370 Spring Quantity needed: 6
  No longer available

9 Bush AP0247970 No longer available

• AP0247970 Bush Quantity needed: 12
  No longer available

10 Springholder plate AP0259580 No longer available

• AP0259580 Springholder plate
  No longer available

11 Screw AP0641595 No longer available

• AP0641595 Screw Quantity needed: 3
  No longer available

12 Washer Available AP0627220

•

  Shim 25x44,4x5 mm Piaggio Group · AP0627220 Available

  € 36,78

  Add to cart

13 Clutch hub AP0259520 No longer available

• AP0259520 Clutch hub
  No longer available

14 Spring washer 24,5x40 Available AP0245830

•

  Snap Ring 24,5x40 mm Piaggio Group · AP0245830 Available

  € 19,42

  Add to cart

15 Nut m24x1,5 AP0242950 No longer available

• AP0242950 Nut m24x1,5
  No longer available

16 Steel clutch discs kit AP8106633 No longer available

• AP8106633 Steel clutch discs kit
  No longer available

17 Lined clutch discs 9 pc. AP8106634 No longer available

• AP8106634 Lined clutch discs 9 pc.
  No longer available

18 Clutch shaft cpl. AP0220458 No longer available

• AP0220458 Clutch shaft cpl.
  No longer available

19 Springholder plate cpl. AP0259519 No longer available

• AP0259519 Springholder plate cpl.
  No longer available

20 Bearing AP0632135 No longer available

• AP0632135 Bearing
  No longer available

21 Clutch spring AP0239480 No longer available

• AP0239480 Clutch spring Quantity needed: 6
  No longer available

22 Washer Available AP0244020

•

  Washer Ø 6,50 mm Piaggio Group · AP0244020 · Quantity needed: 6 Available

  € 9,11

  Add to cart

23 Hex screw AP0240036 No longer available

• AP0240036 Hex screw Quantity needed: 6
  No longer available

24 Washer Available AP0227180

•

  Shim 12,2x32x2 mm Piaggio Group · AP0227180 · Quantity needed: 2 Available

  € 10,74

  Add to cart

25 Support disc AP0627230 No longer available

• AP0627230 Support disc
  No longer available

26 Diaphragm 2R000307 No longer available

• 2R000307 Diaphragm
  No longer available

27 Pressure plate AP0627281 No longer available

• AP0627281 Pressure plate
  No longer available

28 Nut (M12) AP0442130 No longer available

• AP0442130 Nut (M12)
  No longer available
