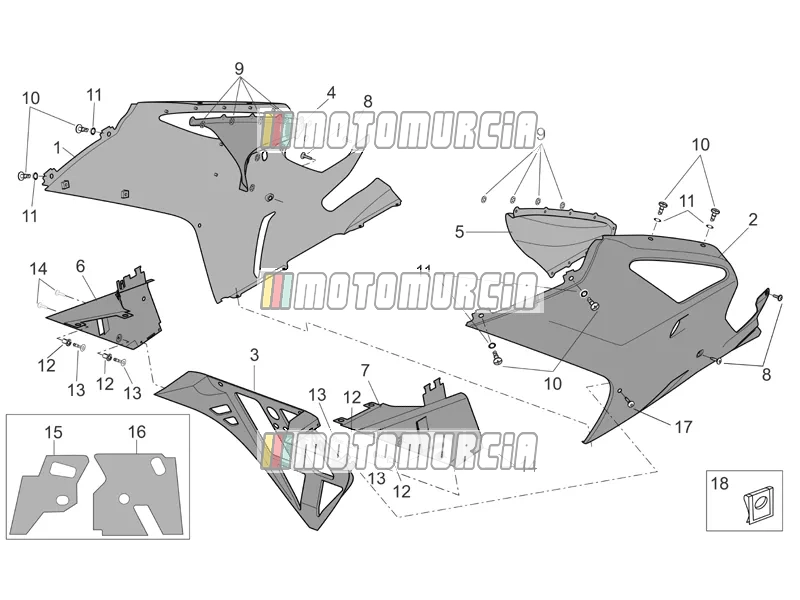

Exploded view Front Body - Fairings I — Aprilia RSV 1000 2004

‹ Back to model
Aprilia RSV 1000 2004 Aprilia RSV 1000 2004
Front Body - Fairings I

Products

1 RH lat.fairing, grey AP8158657 No longer available
  • AP8158657 RH lat.fairing, grey
    • Colour: Lead grey 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8178944 RH lat.fairing, black
    • Colour: Fluo Red 2005-2006
    • Factory "R" RSV version
    • RSV Mille "R" version
    • Year of manufacture: 2005
    No longer available
  • AP8178177 RH lat.fairing, black
    • Colour: Aprilia black 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8158130 RH lat.fairing, black
    • Colour: Aprilia black 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8178172 RH lat.fairing, grey
    • Colour: Fluo Red 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8178972 Rh lat.fairing, black
    No longer available
  • AP8178958 RH lat.fairing, grey
    • Colour: Silver Mirror 2005
    • Factory "R" RSV version
    • RSV Mille "R" version
    • Year of manufacture: 2005
    No longer available
  • AP8178004 RH lat.fairing, grey
    • Colour: Lead grey 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8178029 RH lat.fairing, grey
    • Colour: Fluo Red 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8178240 RH lateral fairing, transp.
    • "Nera" Dream RSV version
    • Year of manufacture: 2004
    No longer available
2 LH lat.fairing, black AP8158131 No longer available
  • AP8158131 LH lat.fairing, black
    • Colour: Aprilia black 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8178005 LH lat.fairing, grey
    • Colour: Lead grey 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8178030 LH lat.fairing, grey
    • Colour: Fluo Red 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8178959 LH lat.fairing, grey
    • Colour: Silver Mirror 2005
    • Factory "R" RSV version
    • RSV Mille "R" version
    • Year of manufacture: 2005
    No longer available
    • Colour: Aprilia black 2005-2006
    • Factory "R" RSV version
    • RSV Mille "R" version
    • Year of manufacture: 2005
    Side Fairing, left Piaggio Group · AP8178905 Backorder · Shipped in 2–4 weeks
    € 1.164,41
  • AP8178178 LH lat.fairing, black
    • Colour: Aprilia black 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8178945 LH lat.fairing, black
    • Colour: Fluo Red 2005-2006
    • Factory "R" RSV version
    • RSV Mille "R" version
    • Year of manufacture: 2005
    No longer available
  • AP8178241 LH lateral fairing, transp.
    • "Nera" Dream RSV version
    • Year of manufacture: 2004
    No longer available
  • AP8158658 LH lat.fairing, grey
    • Colour: Lead grey 2004
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8178173 LH lat.fairing, grey
    • Colour: Fluo Red 2004
    • Factory "R" RSV version
    • Year of manufacture: 2004
    No longer available
3 Pillar AP8158128 No longer available
  • AP8158128 Pillar
    • Factory "R" RSV version
    • RSV Mille "R" version
    No longer available
  • AP8168982 Pillar
    • "Nera" Dream RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
4 RH puller AP8168611 No longer available
  • AP8168611 RH puller
    • "Nera" Dream RSV version
    • Factory "R" RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
  • AP8178757 RH puller, carb.
    • Factory "R" RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
    • RSV Mille "R" version
    • Year of manufacture: 2004
    Side Fairing, right Piaggio Group · AP8158910 Available · Shipped in 3–5 working days
    € 24,48
5 LH puller AP8158911 No longer available
  • AP8158911 LH puller
    • RSV Mille "R" version
    • Year of manufacture: 2004
    No longer available
  • AP8168612 LH puller
    • "Nera" Dream RSV version
    • Factory "R" RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
    • Factory "R" RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    Side Fairing, left Piaggio Group · AP8178758 Backorder · Shipped in 2–4 weeks
    € 518,42
6 RH internal fairing AP8158126 No longer available
  • AP8158126 RH internal fairing
    No longer available
7 LH internal fairing AP8158127 No longer available
  • AP8158127 LH internal fairing
    No longer available
8 Screw M6x15 AP8152460 No longer available
  • AP8152460 Screw M6x15 Quantity needed: 4
    • "Nera" Dream RSV version
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
  • Screw Piaggio Group · 2B014101 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 3,78
9 Washer for shafts D5 (D5) Available AP8150450
    • Colour: Alitalia (t.s.899864)
    • Colour: Replica Alitalia (t.s.899863)
    • Colour: Replica MY13
    • Colour: Replica SBK MY12
    • Country: Canada
    • Country: United States of America
    Waved Washer Ø 5,00 mm Piaggio Group · AP8150450 · Quantity needed: 18 Available · Shipped in 3–5 working days
    € 2,47
10 Screw AP8121663 No longer available
  • AP8121663 Screw Quantity needed: 8
    • Factory "R" RSV version
    • RSV Mille "R" version
    No longer available
11 8 - Front dust cover ring Available AP8120622
  • Washer Piaggio Group · AP8120622 · Quantity needed: 8 Available · Shipped in 3–5 working days
    € 1,59
12 Rivet, female Available AP8144616
    • Factory "R" RSV version
    • RSV Mille "R" version
    Sleeve Piaggio Group · AP8144616 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 4,20
13 Rivet, male Available AP8144563
  • Rivet plastic Piaggio Group · AP8144563 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,99
14 Screw Available AP8152298
  • Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 3,80
15 Acoustic insulation panel, RH AP8117189 No longer available
  • AP8117189 Acoustic insulation panel, RH
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
16 Acoustic insulation panel, LH Available AP8117190
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    Soundproofing left Piaggio Group · AP8117190 Available · Shipped in 3–5 working days
    € 52,51
18 Special clip Available AP8101985
  • Sheet nut Piaggio Group · AP8101985 · Quantity needed: 10 Available · Shipped in 3–5 working days
    € 4,84
