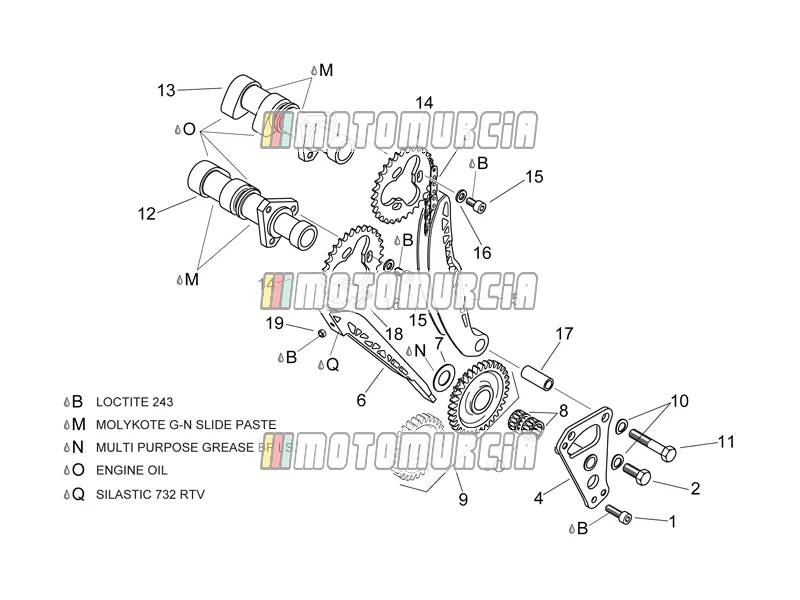

Exploded view — Front Cylinder Timing System

Products

1 Screw AP0240400 No longer available

• AP0240400 Screw
  No longer available

2 Hex screw M8x20 (M8x20) AP0940590 No longer available

• AP0940590 Hex screw M8x20 (M8x20)
  No longer available

3 Timing chain AP0297957 No longer available

• AP0297957 Timing chain
  No longer available

4 Bearings support Plate AP0211766 No longer available

• AP0211766 Bearings support Plate
  No longer available

5 Chain guide AP0236440 No longer available

• AP0236440 Chain guide
  No longer available

6 Chain guide AP0236450 No longer available

• AP0236450 Chain guide
  No longer available

7 Washer Available AP0627190

•

  Shim 16,7x29x1 mm Piaggio Group · AP0627190 Available

  € 8,45

  Add to cart

8 Roller cage 16x22x10 Available AP0632161

•

  Needle bearing 16x22x10 mm Piaggio Group · AP0632161 · Quantity needed: 2 Available

  € 53,69

  Add to cart

9 Timing system gear cpl. AP0295765 No longer available

• AP0295765 Timing system gear cpl.
  No longer available

10 Spring washer b8 AP0845030 No longer available

• AP0845030 Spring washer b8 Quantity needed: 2
  No longer available

11 Hex screw Backorder AP0940631

•

  Hexagon Screw M8x45 Piaggio Group · AP0940631 Backorder

  € 4,44

  Add to cart

12 Camshaft (Exhaust) AP0220700 No longer available

• AP0220700 Camshaft (Exhaust)
  No longer available

13 Camshaft (Intake) AP0220690 No longer available

• AP0220690 Camshaft (Intake)
  No longer available

14 Timing system gear AP0635080 No longer available

• AP0635080 Timing system gear Quantity needed: 2
  No longer available

15 Screw AP0640900 No longer available

• AP0640900 Screw Quantity needed: 6
  No longer available

16 Washer 6,4x12x2 AP0244630 No longer available

• AP0244630 Washer 6,4x12x2 Quantity needed: 6
  No longer available

17 Bush 8,2x12x25 AP0247980 No longer available

• AP0247980 Bush 8,2x12x25
  No longer available

18 Screw AP0940046 No longer available

• AP0940046 Screw
  No longer available

19 Nut AP0242175 No longer available

• AP0242175 Nut
  No longer available
