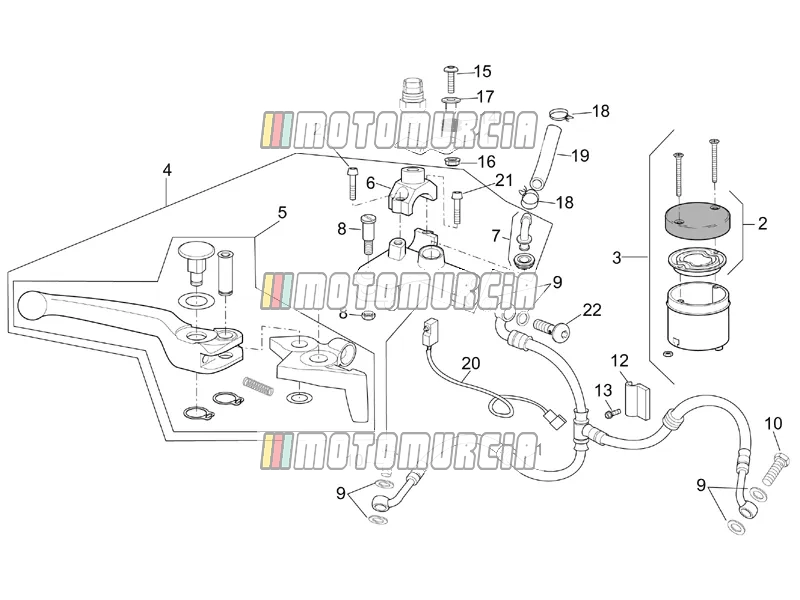

Exploded view — Front Master Cilinder

Products

1 Brake hose AP8133575 No longer available

• AP8133575 Brake hose
  No longer available
• AP8133615 Brake hose
  No longer available

2 Pil brake tank plug Available AP8113598

•

  Lid Piaggio Group · AP8113598 Available

  € 69,02

  Add to cart

3 Brake oil tank Available AP8113499

•

  Brake fluid reservoir Piaggio Group · AP8113499 Available

  € 66,90

  Add to cart

4 Brake hydraulic pump 854600 No longer available

• 854600 Brake hydraulic pump
  No longer available
• AP8133620 Brake hydraulic pump
  No longer available

5 Brake lever Available 854601

•

  Brake Lever right Piaggio Group · 854601 Available

  € 177,31

  Add to cart

6 Rearview mirror base Available AP8168501

•

  Handlebar clamp bracket Piaggio Group · AP8168501 Available

  € 33,28

  Add to cart
• AP8104631 Rearview mirror base *
  No longer available

7 Joint Available AP8213057

•

  Nozzle Piaggio Group · AP8213057 Available

  € 32,02

  Add to cart

8 Lever pin cpl. Available 2B003040

•

  Bolts Piaggio Group · 2B003040 Available

  € 17,36

  Add to cart

9 Washer gasket Available AP8113004

• AP8113004 Washer gasket Quantity needed: 6


  Oil seal 10x14x1,6 mm Piaggio Group · AP8113004 Available

  € 2,18

  Add to cart


  Oil seal 10x14x1,6 mm Piaggio Group · Ap8113004 Available

  € 2,18

  Add to cart

10 Oil pipe screw Available AP8113003

•

  Screw Piaggio Group · AP8113003 · Quantity needed: 3 Available

  € 2,35

  Add to cart

11 Oil tank plate Available AP8134899

•

  Bracket Piaggio Group · AP8134899 Available

  € 19,00

  Add to cart

12 Brake hose hanger AP8134438 No longer available

• AP8134438 Brake hose hanger
  No longer available

13 Screw Available AP8152272

•

  Flanged Screw M5x12 Piaggio Group · AP8152272 Available

  € 2,18

  Add to cart

14 Rubber spacer Available AP8120030

•

  Buffer Piaggio Group · AP8120030 Available

  € 1,83

  Add to cart

15 Screw Available AP8152280

•

  Flanged Screw M6x25 Piaggio Group · AP8152280 Available

  € 2,77

  Add to cart

16 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 Available

  € 2,18

  Add to cart

17 Spacer Available AP8221023

•

  Sleeve Piaggio Group · AP8221023 Available

  € 1,84

  Add to cart

18 Clamp Available AP8101595

•

  Clamp Ø 10,10 mm Piaggio Group · AP8101595 · Quantity needed: 2 Available

  € 4,71

  Add to cart

19 Rubber pipe Available 890509

•

  Oil Hose Piaggio Group · 890509 Available

  € 38,44

  Add to cart

20 Brake light switch Available AP8124288

•

  Stop light switch Piaggio Group · AP8124288 Available

  € 57,03

  Add to cart

21 Screw Available AP8213299

•

  Screw Grimeca Piaggio Group · AP8213299 · Quantity needed: 2 Available

  € 3,80

  Add to cart

22 Oil pipe screw Available AP8133594

•

  Hollow screw Piaggio Group · AP8133594 Available

  € 20,11

  Add to cart
