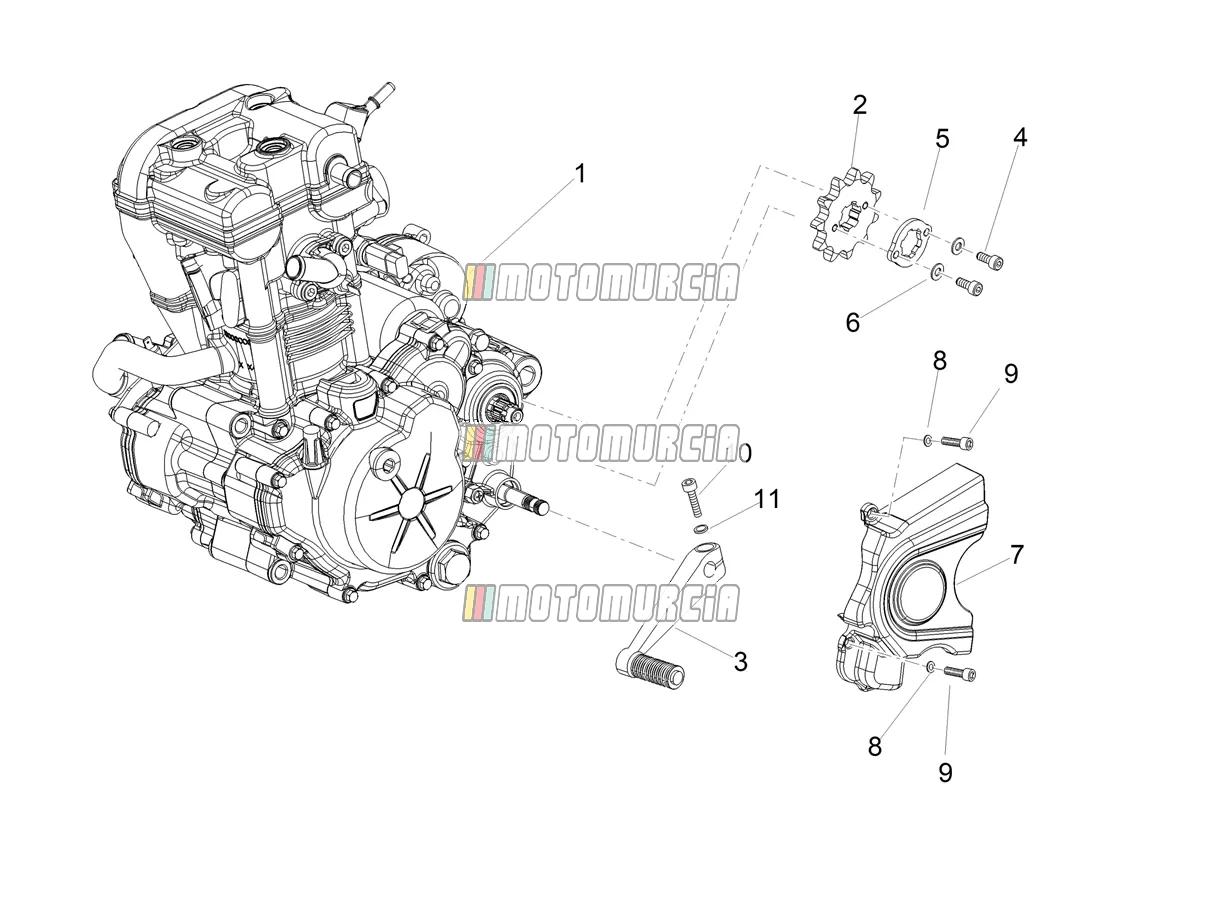

Exploded view — Engine-completing Part-lever

Products

1 125 4Str/4V E5+ engine 125 4Str/4V E5+ engine No longer available

• 125 4Str/4V E5+ engine
  No longer available

2 Sprocket front (Z=13) Available 1A011741

•

  Rear Sprocket Number of Teeth: 13 Piaggio Group · 1A011741 Available

  € 20,06

  Add to cart

3 Gear change lever Available 864184

•

  Gear Lever Piaggio Group · 864184 Available

  € 90,11

  Add to cart

4 Screw Available 00000004510

•

  Screw Piaggio Group · 00000004510 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Plate, drive sprocket fixing Backorder 00H02810421

•

  Plate Piaggio Group · 00H02810421 Backorder

  € 3,80

  Add to cart

6 Washer Available AP8150284

•

  Washer Piaggio Group · AP8150284 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Sprocket cover Available 863250

•

  Cover Piaggio Group · 863250 Available

  € 32,96

  Add to cart

8 Spacer Available 00H01600911

•

  Spacer Piaggio Group · 00H01600911 · Quantity needed: 2 Available

  € 1,83

  Add to cart

9 Screw M5X14 Available 2R000430

•

  Screw M5x14 Piaggio Group · 2R000430 · Quantity needed: 2 Available

  € 0,99

  Add to cart

10 Screw Available AP8150137

•

  Screw M6x16 Piaggio Group · AP8150137 Available

  € 1,48

  Add to cart

11 Washer (spring) Available 658830

•

  Washer Piaggio Group · 658830 Available

  € 2,00

  Add to cart
