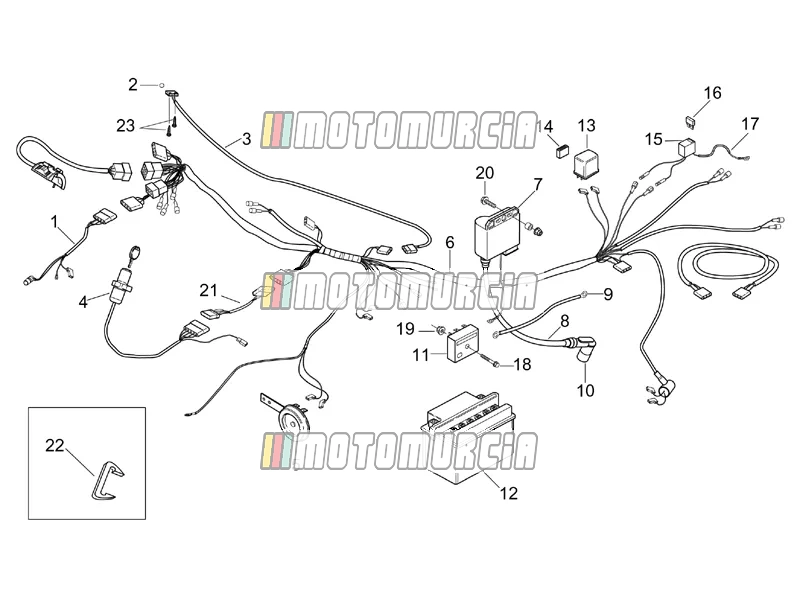

Exploded view — Electrical System

Products

1 Headlight wiring w/harness AP8212434 No longer available

• AP8212434 Headlight wiring w/harness
  No longer available

2 Ball Backorder AP8201326

•

  Ball Ø 7,10 mm Piaggio Group · AP8201326 Backorder

  € 1,36

  Add to cart

3 Brake light switch AP8212196 No longer available

• AP8212196 Brake light switch
  No longer available

4 Main switch - steering lock AP8224548 No longer available

• AP8224548 Main switch - steering lock
  No longer available

5 Horn AP8212753 No longer available

• AP8212753 Horn
  No longer available

6 Main wiring harness AP8212425 No longer available

• AP8212425 Main wiring harness
  No longer available

7 CDI unit AP8212474 No longer available

• AP8212474 CDI unit
  No longer available

8 H.T. wiring AP8212212 No longer available

• AP8212212 H.T. wiring
  No longer available

9 Battery negative leads AP8112573 No longer available

• AP8112573 Battery negative leads
  No longer available

10 Spark plug cap AP8212219 No longer available

• AP8212219 Spark plug cap
  No longer available

11 Voltage regulator AP8212121 No longer available

• AP8212121 Voltage regulator
  No longer available

12 Battery 32YTX5LBS No longer available

• 32YTX5LBS Battery
  No longer available

13 Flasher relay Available AP8124235

•

  Indicator Relay Piaggio Group · AP8124235 Available

  € 26,50

  Add to cart

14 Beeper support Backorder AP8212165

•

  Bracket for interval sensor Piaggio Group · AP8212165 Backorder

  € 6,63

  Add to cart

15 Fuse and diode box AP8212143 No longer available

• AP8212143 Fuse and diode box
  No longer available

16 Fuse (7,5A) Available CM225607

•

  Fuse 7,5 A Piaggio Group · CM225607 Available

  € 5,11

  Add to cart

17 Battery negative leads Available AP8112458

•

  Battery Cable (-) Piaggio Group · AP8112458 Available

  € 35,38

  Add to cart

18 Screw Available AP8152282

•

  Flanged Screw M6x35 Piaggio Group · AP8152282 Available

  € 1,48

  Add to cart

19 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 7 Available

  € 2,18

  Add to cart

20 Screw Available AP8152280

•

  Flanged Screw M6x25 Piaggio Group · AP8152280 · Quantity needed: 2 Available

  € 2,77

  Add to cart

21 Lights wiring AP8224017 No longer available

• AP8224017 Lights wiring
  No longer available

22 Plugs spring Available AP8121309

•

  Clip Piaggio Group · AP8121309 Available

  € 2,13

  Add to cart

23 Screw Available AP8150238

•

  Oval Head Screw 2,2x12,7 mm Piaggio Group · AP8150238 · Quantity needed: 2 Available

  € 1,25

  Add to cart
